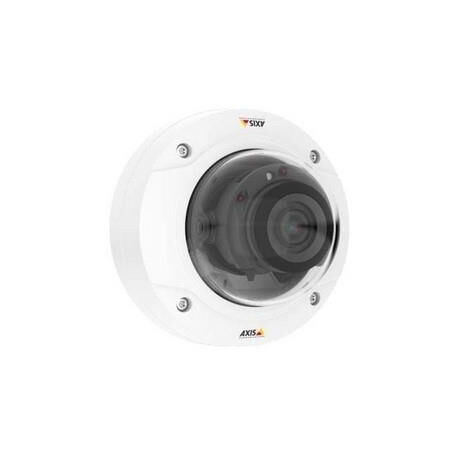

AXIS P3227-LV Network Camera - Network surveillance camera - dome - colour (Day&Night) - 3072 x 1728 - vari-focal - LAN 10 / 100 - MPEG-4, MJPEG, H.264 - PoE Plus

  • Axis P3227-LV (Day/night fixed dome with support for OptimizedIR with built-in adaptable IR illuminators, and WDR – Forensic Cap
  • Axis P3227-LV (Day/night fixed dome with support for OptimizedIR with built-in adaptable IR illuminators, and WDR – Forensic Cap
  • Axis P3227-LV (Day/night fixed dome with support for OptimizedIR with built-in adaptable IR illuminators, and WDR – Forensic Cap
images are for illustrative purposes only

New

Article: 1424547 Intrastat: 84716070 SKU: 0885-001
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeNetwork surveillance camera
Form FactorDome
Connectivity TechnologyWired
Width14.9 cm
Depth14.9 cm
Height10.1 cm
Weight550 g
LocalisationArgentina, Australia, Japan, Brazil, United Kingdom, United States, Europe
TypeColour - Day&Night - fixed
Digital Video FormatMPEG-4, MJPEG, H.264
Max Digital Video Resolution3072 x 1728
Exposure Range2 sec - 1/62500 sec
Minimum Illumination0.18 lux - colour - F1.7 ¦ 0.04 lux - B&W - F1.7 ¦ 0 lux - IR
Infrared Distance30 m
Digital Video Capture Resolution3072 x 1728, 160 x 90
Frame Rate (max)30 frames per second
RAM1 GB
Flash Memory512 MB
FeaturesBacklight compensation, sharpness control, white balance, auto exposure control, colour control, brightness control, contrast control, Wide Dynamic Range (WDR), infrared cut filter, Lightfinder technology, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), OptimizedIR, Zipstream technology
TypeCMOS 1/2.5"
TypeVari-focal
Optical Zoom2.85 x
Focal Length3.5 mm - 10 mm
Lens IrisF/1.7 (P-Iris)
Horizontal Field of View (degree)38 - 100
Vertical Field of View (degree)22 - 51
Range (degree)-180 to +180
Range (degree)-40 to +75
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP
PortsLAN - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
Included AccessoriesMounting kit
Compliant StandardsEN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 A, IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, EN 50121-4, IEC 62236-4, VCCI Class B, IEC 60950-22, EN 62471:2008, IEC 62471, EN 60950-22, UL 60950-22, AS/NZS CISPR 22 Class B, KN35, KN32 Class B, EN 62262 IK08
ColourWhite
Power RequirementsPoE Plus
Power Device8.4 Watt
Software IncludedWindows decoder 1-user licence
Service & SupportLimited warranty - 3 years
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Relative Humidity (operating)10 - 85% (non-condensing)
