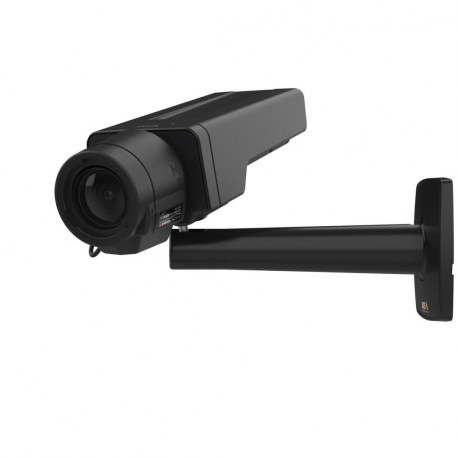

AXIS Q1656 - Network surveillance camera - box - colour (Day&Night) - 4 MP - 2688 x 1512 - i-CS-mount - auto iris - vari-focal - audio - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 3
AXIS Q1656 - Network surveillance camera - box - colour (Day&Night) - 4 MP - 2688 x 1512 - i-CS-mount - auto iris - vari-focal - audio - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 3
Manufacturer
•AXIS
Reference
•02164-001
Article
•1880758
Intrastat
•84716070
Shipping weight
•0.79 kg
Total quantity in stocks
•1
Nearest delivery
•04.06.2026
Device Type
Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Form Factor
Box
Connectivity Technology
Wired
Width
8 cm
Depth
21.4 cm
Height
6.8 cm
Weight
790 g
Type
Colour - Day&Night - fixed
Digital Video Format
MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2
Max Digital Video Resolution
2688 x 1512
Motion Detection
Yes
Exposure Range
1 sec - 1/47500 sec
Digital Video Capture Resolution
160 x 120, 2016 x 1512, 2688 x 1512, 160 x 90
Frame Rate (max)
60 frames per second
RAM
2 GB
Flash Memory
8 GB
Features
White balance, saturation control, brightness control, contrast control, image mirror, heater, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream technology, Pelco Protocol, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Line Crossing Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, Remote Back Focus, signed firmware, secure boot, TPM 2.0 module, Audio Noise Reduction, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault
Type
4 MP RGB CMOS 1/1.8"
Type
I-CS-mount - vari-focal
Optical Zoom
2.9 x
Focal Length
3.9 mm - 10 mm
Lens Iris
F/1.5 auto iris (P-Iris)
Min Focus Distance
50 cm
Horizontal Field of View (degree)
47 - 120
Vertical Field of View (degree)
27 - 63
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT
Control Interface
RS-485, RS-422
Ports
LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block
Supported Memory Cards
SD Memory Card, SDXC Memory Card, SDHC Memory Card
Included Accessories
Stand, connector kit, drill hole template, Resistorx L-key
Compliant Standards
CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IEC 62471, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, IEEE 802.3af, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, CAN ICES-3(B)/NMB3(B), IEC/EN 62262 IK10, IEC/EN 60529 IP67, IK08, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547
Colour
Black
Power Requirements
DC 10 - 28 V / PoE Plus Class 3
Power Device
5.1 Watt
Software Included
Windows decoder 1-user licence
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-20 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
10 - 85% (non-condensing)
