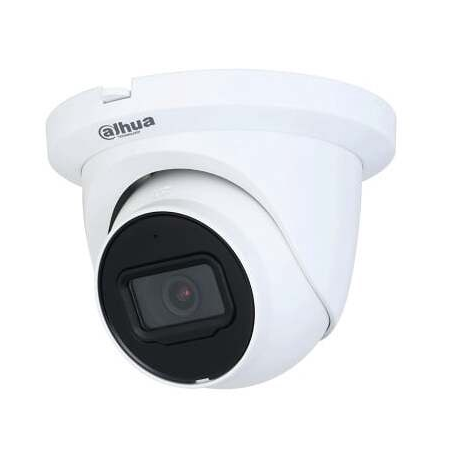

Dahua WizSense Series IPC-HDW2441TM-S-0280B - Network surveillance camera - eyeball - dustproof / waterproof - colour (Day&Night) - 4 MP - 2688 x 1520 - 720p, 1080p - M12 mount - fixed iris - fixed focal - audio - LAN 10 / 100 - MJPEG, H.264, H.265, H.265+, H.264+, H.264H - DC 12 V / PoE
images are for illustrative purposes only
New
Article: 3036868 Intrastat: 84716070 SKU: IPC-HDW2441TM-S-0280B
Pricing and stock details are available to registered users only.
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | PCM, G.726, G.711a, G.711u |
| Form Factor | Eyeball |
| Connectivity Technology | Wired |
| Width | 12.19 cm |
| Depth | 12.19 cm |
| Height | 9.91 cm |
| Weight | 480 g |
| Type | Colour - Day&Night - fixed - dustproof / waterproof |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+, H.264H |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.008 lux - colour - F1.6 - 30 IRE ¦ 0.0008 lux - B&W - F1.6 - 30 IRE ¦ 0 lux - IR |
| Infrared LEDs | 1 |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 352 x 240, 640 x 480, 1280 x 960, 352 x 288, 704 x 576, 704 x 480, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| RAM | 128 MB |
| Flash Memory | 128 MB |
| Features | Manual white balance, Backlight Compensation (BLC), alarm function, image mirror, Wide Dynamic Range (WDR), Highlight Compensation (HLC), Dual Stream Encoding, manual gain control, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, intrusion detection, auto gain control, auto white balance, ONVIF (Profile S) support, Intelligent Video System (IVS), DORI coverage, Vehicle Detection, 3D digital noise reduction (DNR), human detection, perimeter protection, manual 360° rotation, tripwire detection, ONVIF (Profile T) support, 4 programmable motion areas, 180° image rotation, 90° image rotation, 270° image rotation, 63.6m detection distance, 25.4m observe distance, 12.7m recognise distance, 6.4m identify distance, auto ICR, Smart Search, privacy masking (up to 4 areas), SMD Plus support |
| Type | 4 MP PS CMOS 1/2.9" |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 fixed iris |
| Min Focus Distance | 90 cm |
| Horizontal Field of View (degree) | 95 |
| Vertical Field of View (degree) | 52 |
| Diagonal Field of View (degree) | 114 |
| Range (degree) | 0 to 360 |
| Range (degree) | 0 to 78 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, IPv4, IPv6, RTCP, IGMP, CGI, SFTP, RTMP, P2P |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card |
| Compliant Standards | EMC, FCC CFR47 Part 15 B, IP67, LVD, Directive 2014/30/EU, EN 62368-1, IEEE 802.3af |
| Power Requirements | DC 12 V / PoE |
| Power Device | 2.5 Watt |
| Shipping Weight | 680 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% |
