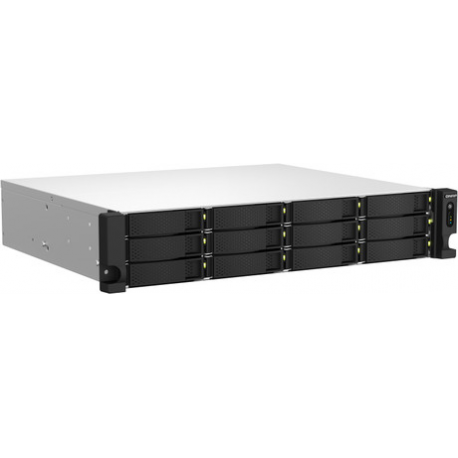

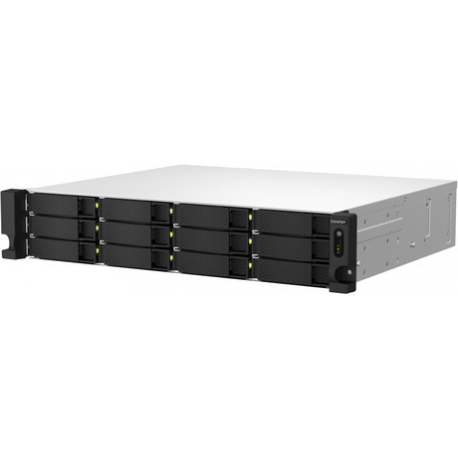

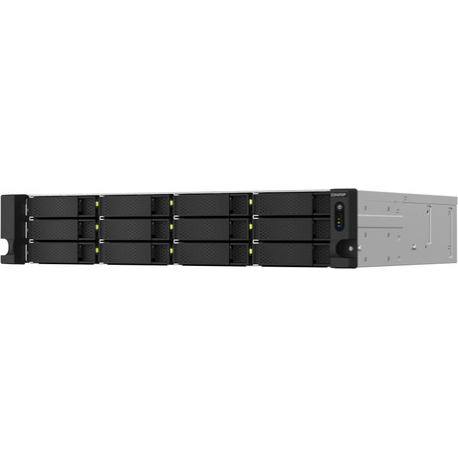

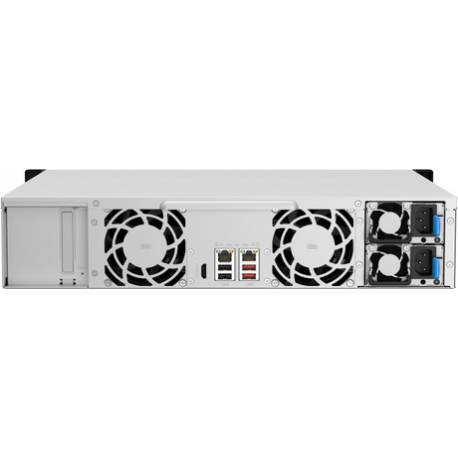

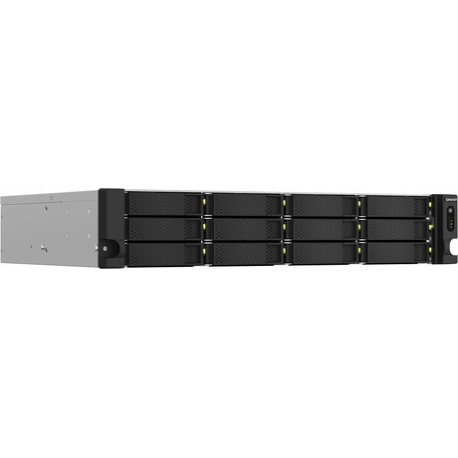

QNAP TS-1264U-RP - NAS server - 12 bays - rack-mountable - SATA 6Gb / s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - 2.5 Gigabit Ethernet - iSCSI support - 2U
QNAP TS-1264U-RP - NAS server - 12 bays - rack-mountable - SATA 6Gb / s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - 2.5 Gigabit Ethernet - iSCSI support - 2U
Manufacturer
•QNAP
Reference
•TS-1264U-RP-8G
Article
•3116613
Intrastat
•84717020
Shipping weight
•14.09 kg
Total quantity in stocks
•4
Nearest delivery
•27.03.2026
Device Type
NAS server
Host Connectivity
2.5 Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Width
48.22 cm
Depth
42.38 cm
Height
8.87 cm
Weight
9.43 kg ()
Built-in Devices
Led panel
Processors Installed
1 x Intel Celeron N5095
Number of Cores
Quad-Core
Max Supported Qty
1
Max Turbo Speed
2.9 GHz
RAM
8 GB
Flash Memory Installed
4 GB
Type
RAID
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 2.5 GigE
Network / Transport Protocol
iSCSI, DHCP, SMB, DDNS, IPv4, IPv6, QuFTP
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, RADIUS
Network Services Compatibility
DHCP, DDNS, Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 1500 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32
Features
Firewall protection, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, built-in hardware transcoding, file station, port trunking, EXT4 file system, SSD trim, RAID migration, FXP support, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, built-in buzzer, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache ac
Encryption Algorithm
TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Expansion Bays
12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
1 (total) / 1 (free) x PCI Express 3.0 x2
Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x HDMI output
Cables Included
1 x network cable
Features
Wake on LAN, built-in 2 cooling fans, Online RAID Level Migration (RLM), hardware encryption, built-in firewall, S.M.A.R.T. support, reset button, Secure Erase, dual boot, alarm buzzer
Compliant Standards
TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3
Included Accessories
48 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD), 2 x power cables
Power Device
Internal power supply
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 100-240 V
Power Consumption Operational
70.913 Watt (with drives fully populated)
Power Provided
300 Watt
Storage Operating System
QNAP QTS 5.0.1
Software Included
McAfee, IronWolf Health Management
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11
Service & Support
Limited warranty - 3 years
Shipping Weight
14.09 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
