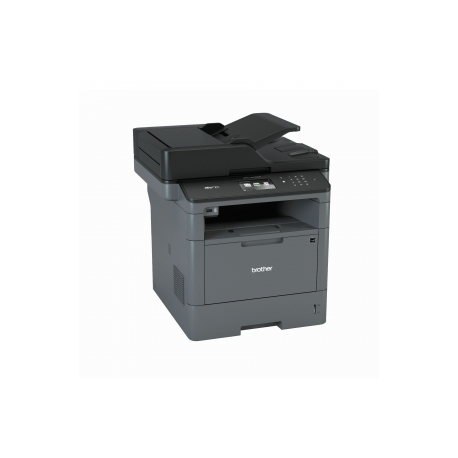

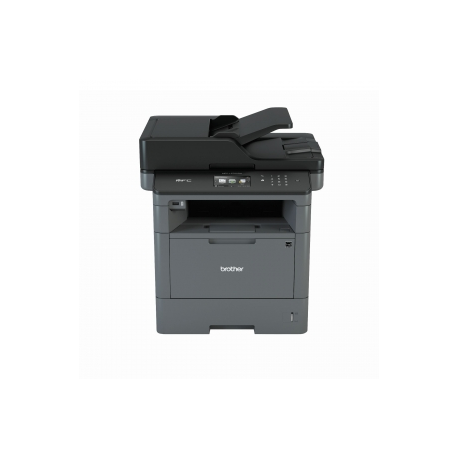

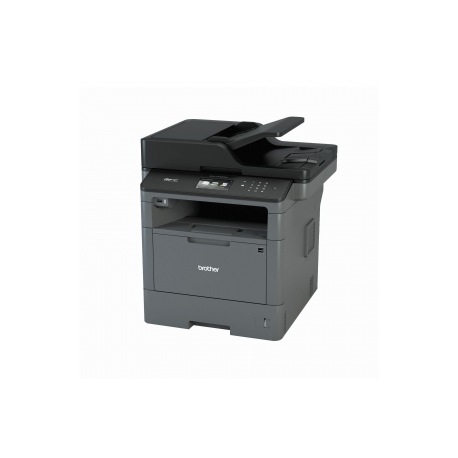

Brother MFC-L5700DN - Multifunction printer - B / W - laser - Legal (216 x 356 mm) (original) - A4 / Legal (media) - up to 40 ppm (printing) - 300 sheets - 33.6 Kbps - USB 2.0, LAN, USB host
images are for illustrative purposes only
New
Article: 1320756 Intrastat: 84433100 SKU: MFCL5700DNZW1
Pricing and stock details are available to registered users only.
| Device Type | Multifunction printer |
| Fax Type | Plain paper |
| Printing Technology | Laser - monochrome |
| Recommended Monthly Volume | 3500 pages |
| Display Diagonal Size | 3.7" |
| Display Features | Touch screen |
| Connection Availability | Yes |
| Interface | USB 2.0, LAN, USB host |
| AirPrint Enabled | Yes |
| Office Machine Features | Print from USB flash drive, save to USB flash drive, scan to e-mail, scan to folder, scan to FTP, scan to SMB |
| Standard Memory | 256 MB |
| Max Copying Resolution | Up to 1200 x 600 dpi |
| Max Document Enlargement | 400% |
| Max Document Reduction | 25% |
| Maximum Copies | 99 |
| Max Printing Resolution | Up to 1200 x 1200 dpi |
| Max Printing Speed | Up to 40 ppm |
| Printer Drivers / Emulations | PCL 6, PostScript 3, IBM Proprinter, PDF 1.7, XPS, EPSON FX |
| Automatic Duplexing | Yes |
| First Print Out Time B/W | 7.2 sec |
| Optical Resolution | 1200 x 1200 dpi |
| Interpolated Resolution | 19200 x 19200 dpi |
| Grayscale Depth | 8-bit |
| Colour Depth | 24-bit |
| Colour Depth (Internal) | 48-bit |
| Compatibility | Super G3 |
| Max Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JBIG |
| Fax Resolutions | 203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi |
| Reception Memory Capacity | Up to 500 pages |
| Transmission Memory Capacity | Up to 500 pages |
| Error Correction Mode (ECM) | Yes |
| Speed Dialing | 300 station(s) |
| Broadcast Transmission | 350 stations |
| Features | Fax forwarding, automatic redialing, group dialling, Dual Access |
| Max Original Size | Legal (216 x 356 mm) |
| Original Type | Sheets |
| Document Feeder Capacity | 50 sheets |
| Min Media Size | 76.2 x 127 mm |
| Max Media Size | A4/Legal |
| Min Media Weight | 60 g/m² |
| Max Media Weight | 200 g/m² |
| Supported Media Type | Envelopes, plain paper, labels, recycled paper, bond paper, thin paper, thick paper |
| Supported Media Sizes | ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm) |
| Standard Media Capacity | 300 sheets |
| Bypass Feeder Capacity | 50 sheets |
| Output Trays Capacity | 150 sheets |
| Document & Media Handling Details | Input tray - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 120 g/m² ¦ ADF - 50 sheets size: 105 x 147.3 mm - 215.9 x 355.6 mm weight: 64 g/m² - 90 g/m² ¦ Bypass tray - 50 sheets size: 76.2 x 127 mm - 215.9 x 355.6 mm weight: 60 g/m² - 200 g/m² ¦ Output tray - 150 sheets |
| Speed Details | Printing: up to 40 ppm - B/W ¦ Printing: up to 20 spm - B/W duplex ¦ Scanning: up to 24 ipm - B/W ¦ Scanning: up to 20 ipm - colour |
| Interfaces | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A |
| Security Protocols & Features | SSL, TLS, IPsec, ARP |
| Operating System Support | Linux, MS Windows XP SP3, MS Windows Server 2008 R2 x64 Edition, Apple Mac OS X 10.8, MS Windows Server 2012 x64 Edition, Apple Mac OS X 10.9, MS Windows Server 2003 (32/64-bits), MS Windows Server 2008 (32/64-bits), MS Windows Server 2012 R2 x64 Edition, MS Windows Vista (32/64 bits), MS Windows 7 (32/64 bits), Apple Mac OS X 10.10, Windows 8 (32/64-bits), Windows 8.1 (32/64-bits), Windows 10 (32/64-bits), Apple Mac OS X 10.11 |
| Voltage Required | AC 230 V (50/60Hz) |
| Power Consumption Operational | 645 Watt |
| Power Consumption Standby | 34 Watt |
| Power Consumption Sleep | 8 Watt |
| First Copy Out Time B/W | 9.2 sec |
| Included Accessories | Phone cable |
| Consumables Included | 1 x Cartridge (black) - up to 2000 pages ¦ 1 x drum (black) - up to 50000 pages - Brother DR3400 |
| ENERGY STAR Certified | Yes |
| Blue Angel Compliant | Yes |
| Service & Support | Limited warranty - 2 years |
| Width | 43.5 cm |
| Depth | 48.6 cm |
| Height | 42.7 cm |
| Weight | 16.5 kg |
| Shipping Width | 54.5 cm |
| Shipping Depth | 52 cm |
| Shipping Height | 48.6 cm |
| Shipping Weight | 20.1 kg |
| Sound Emission | 35 dBA (idle) / 54 dBA (operating) |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 32 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
