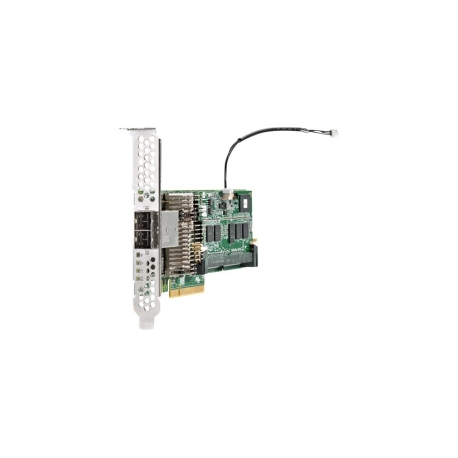

HPE Smart Array P441 / 4GB with FBWC - Storage controller (RAID) - 8 Channel - SATA 6Gb / s / SAS 12Gb / s low profile - 12 Gbit / s - RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for Apollo 4510 Gen9; ProLiant DL20 Gen9, DL560 Gen9, ML30 Gen9, XL270d Gen9; StoreEasy 1450

HPE Smart Array P441 / 4GB with FBWC - Storage controller (RAID) - 8 Channel - SATA 6Gb / s / SAS 12Gb / s low profile - 12 Gbit / s - RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for Apollo 4510 Gen9; ProLiant DL20 Gen9, DL560 Gen9, ML30 Gen9, XL270d Gen9; StoreEasy 1450

Manufacturer
HPE
Reference
726825-B21
Article
1128906
Shipping weight
0.45 kg
<div><div>Are you looking to add additional storage but don't have the room in your server? The HP Smart Array P441 Controller is a low-profile, PCIe3 x8, 12 Gb/s Serial Attached SCSI (SAS) RAID controller that provides enterprise-class storage performance, increased external scalability, and data protection for select HP ProLiant Gen9 rack and tower servers. It features eight external physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache (FBWC), global online spare, and pre-failure warning. This controller includes transportable FBWC allowing the data in the cache to be migrated to a new controller. The Gen9 family of controllers supports the HP Smart Storage Battery. With HP Smart Storage Battery, multiple Smart Array controllers are supported without needing additional backup power sources for each controller, resulting in simple upgrade process.<br /></div> <span> <!-- ProductFeautures here --> </span><div class="cPF"><ul><li><strong>Increased Performance for Applications</strong><br />The HP Smart Array P441 Controller delivers 12 Gb/s SAS connectivity on HP ProLiant Gen9 Servers when connected to 12 Gb/s external storage devices for increased performance in messaging, database or general server applications. Offers transportable 4 GB DDR3-1866 Flash Backed Write Cache providing up to 14.9 GB/s maximum cache bandwidth to reduce latency in write-intensive applications that require heavy logging such as databases. Optional HP SmartCache provides read and write acceleration for workloads such as databases or web pages.</li><li><strong>Data Protection with Encryption Capability</strong><br />The HP Smart Array P441 Controller offers optional HP Secure Encryption capability that protects data at rest on any bulk storage attached to the controller. Long-term data retention with 4 GB Flash Backed Write Cache (FBWC) for improved data reliability. Delivers predictive spare activation for improved rebuild and increased uptime even in a recovery mode.</li><li><strong>Configuration Is Efficient and Simple</strong><br />The HP Smart Array P441 Controller and the attached storage devices are configured and managed by the easy–to-use HP Smart Storage Administrator software which is included in the intelligent provisioning of the server. Data compatibility between the HP Smart Array Controller family allows simple and easy migration at any time when needs for higher performance, capacity, and availability increase such as migrating an existing just a bunch of disks (JBOD) to a more advanced disk array configuration.</li></ul></div> </div>

All offers are visible after login.

Manufacturer
HPE
Reference
726825-B21
Article
1128906
Shipping weight
0.45 kg
<div><div>Are you looking to add additional storage but don't have the room in your server? The HP Smart Array P441 Controller is a low-profile, PCIe3 x8, 12 Gb/s Serial Attached SCSI (SAS) RAID controller that provides enterprise-class storage performance, increased external scalability, and data protection for select HP ProLiant Gen9 rack and tower servers. It features eight external physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache (FBWC), global online spare, and pre-failure warning. This controller includes transportable FBWC allowing the data in the cache to be migrated to a new controller. The Gen9 family of controllers supports the HP Smart Storage Battery. With HP Smart Storage Battery, multiple Smart Array controllers are supported without needing additional backup power sources for each controller, resulting in simple upgrade process.<br /></div> <span> <!-- ProductFeautures here --> </span><div class="cPF"><ul><li><strong>Increased Performance for Applications</strong><br />The HP Smart Array P441 Controller delivers 12 Gb/s SAS connectivity on HP ProLiant Gen9 Servers when connected to 12 Gb/s external storage devices for increased performance in messaging, database or general server applications. Offers transportable 4 GB DDR3-1866 Flash Backed Write Cache providing up to 14.9 GB/s maximum cache bandwidth to reduce latency in write-intensive applications that require heavy logging such as databases. Optional HP SmartCache provides read and write acceleration for workloads such as databases or web pages.</li><li><strong>Data Protection with Encryption Capability</strong><br />The HP Smart Array P441 Controller offers optional HP Secure Encryption capability that protects data at rest on any bulk storage attached to the controller. Long-term data retention with 4 GB Flash Backed Write Cache (FBWC) for improved data reliability. Delivers predictive spare activation for improved rebuild and increased uptime even in a recovery mode.</li><li><strong>Configuration Is Efficient and Simple</strong><br />The HP Smart Array P441 Controller and the attached storage devices are configured and managed by the easy–to-use HP Smart Storage Administrator software which is included in the intelligent provisioning of the server. Data compatibility between the HP Smart Array Controller family allows simple and easy migration at any time when needs for higher performance, capacity, and availability increase such as migrating an existing just a bunch of disks (JBOD) to a more advanced disk array configuration.</li></ul></div> </div>

Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
4 GB
Supported Devices
Hard drive, disk array (RAID)
Channel Qty
8
Max Storage Devices Qty
200
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (external)
Compliant Standards
WEEE
OS Required
Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 11 for x86, Microsoft Windows Server 2012, SuSE Linux Enterprise Server 11 x64 Edition, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5
Service & Support
Limited warranty - parts - 3 years
Width
5.72 cm
Depth
24.13 cm
Height
19.05 cm
Weight
450 g
Designed For
HPE Apollo 4510 Gen9 ¦ HPE Modular Smart Array 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle, 2040 SAS Dual Controller SFF Bundle ¦ HPE ProLiant DL180 Gen9, DL20 Gen9 Solution, DL380 Gen9 High Performance, DL560 Gen9 Entry, ML30 Gen9 Entry, ML30 Gen9 Solution, XL170r Gen9, XL270d Gen9 ¦ HPE StoreEasy 1450, 1850
