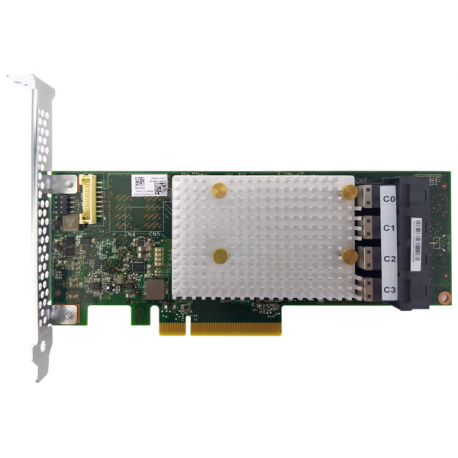

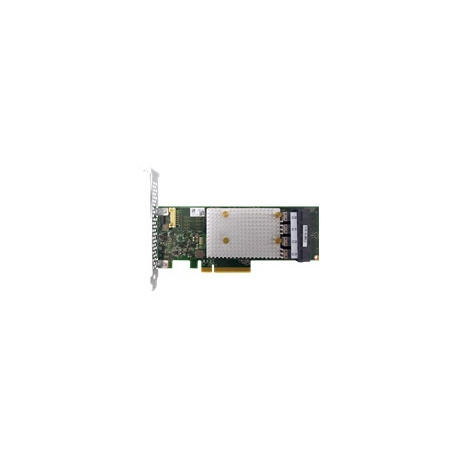

Lenovo ThinkSystem 9350-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD - PCIe 3.0 x8 - for ThinkSystem SR630 V2 7Z70, 7Z71; SR650 V2 7D15, 7Z72, 7Z73
images are for illustrative purposes only
New
Article: 2641956 SKU: 4Y37A72485
Pricing and stock details are available to registered users only.
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Buffer Size | 4 GB |
| Supported Devices | Hard drive, disk array (RAID), solid state drive |
| Channel Qty | 16 |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD |
| Processor | Microchip Technology PM8236 |
| Interfaces | 4 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Included Accessories | Low-profile bracket |
| Features | Online Capacity Expansion (OCE), Native Command Queuing (NCQ), SecureBoot, dynamic caching algorithm, RAID Level Migration, Background RAID Initialization, Quick RAID Initialization, Staggered Drive Spin Up, Bootable RAID Array support, S.M.A.R.T. support, Supercap, hot plug, JBOD support |
| Compliant Standards | VCCI, EN55022, EN55024, ICES-003 Class B, AS/NZS 3548, RoHS, KCC, FCC Part 15 A, IEC/UL/CSA/EN 60950-1, FCC CFR47 Part 15 B Class B |
| OS Required | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Ubuntu 18.04 LTS, SUSE Linux Enterprise Server 12 SP5, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, VMware vSphere Hypervisor 7.0 (ESXi) Update 2, VMware vSphere 6.7 (ESXi) Update 3 |
| Service & Support | Limited warranty - 1 year |
| Depth | 16.7 cm |
| Height | 6.4 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Designed For | Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 |
