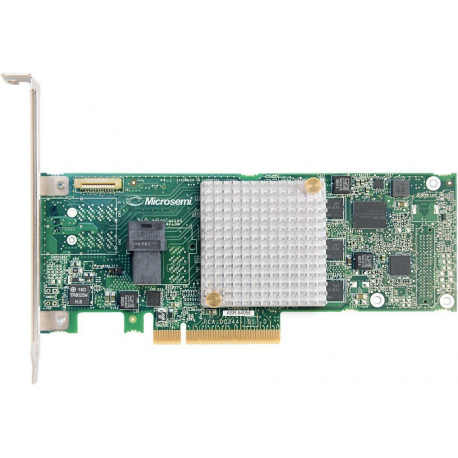

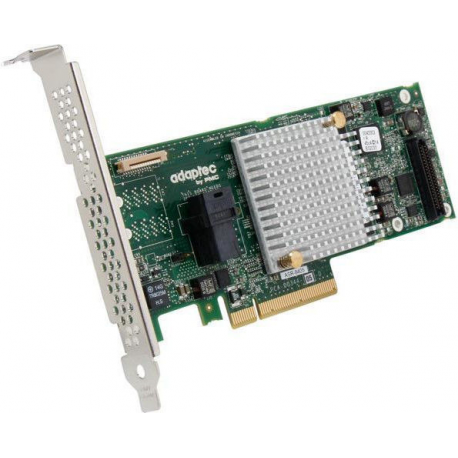

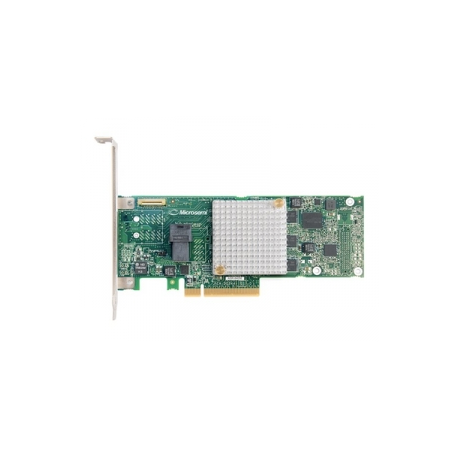

Microchip Adaptec RAID 8405E - Storage controller (RAID) - 4 Channel - SAS 12Gb / s - low profile - RAID 0, 1, 10 - PCIe 3.0 x8

  • Adaptec ASR-8405E V2 SINGLE 12GB/S PCI (8 SAS/SATA ENTRY LEVEL RAID GEN3 IN)
  • Adaptec ASR-8405E V2 SINGLE 12GB/S PCI (8 SAS/SATA ENTRY LEVEL RAID GEN3 IN)
  • Adaptec ASR-8405E V2 SINGLE 12GB/S PCI (8 SAS/SATA ENTRY LEVEL RAID GEN3 IN)
images are for illustrative purposes only

New

Article: 1346413 SKU: 2293901-R
Pricing and stock details are available to registered users only.
 Add to compare
Microsemi Adaptec RAID 8405E - Storage controller (RAID) - 4 Channel - SAS 12Gb/s low profile - 1200 MBps - RAID 0, 1, 10 - PCIe 3.0 x8
Device TypeStorage controller (RAID) - plug-in card - low profile
Host BusPCIe 3.0 x8
InterfaceSAS 12Gb/s
Data Transfer Rate12 Gbit/s
Buffer Size512 MB
Supported DevicesHard drive, disk array (RAID)
Channel Qty4
RAID LevelRAID 0, RAID 1, RAID 10
Interfaces1 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Included AccessoriesLow-profile bracket
MTBF2,000,000 hours
Compliant StandardsUL, VCCI, C-Tick, FCC, RoHS, KCC
Software IncludedDrivers & Utilities
OS RequiredSunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Linux Fedora
Service & SupportLimited warranty - 3 years
Depth16.7 cm
Height6.4 cm
Min Operating Temperature0 °C
Max Operating Temperature55 °C
