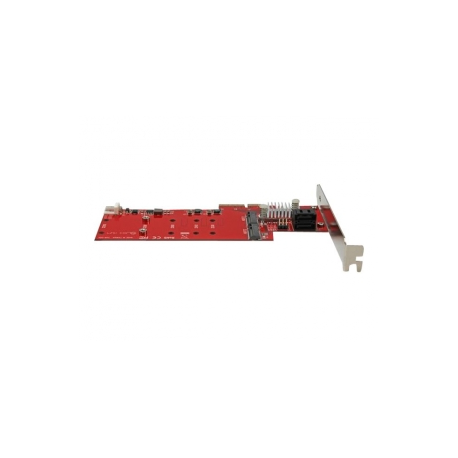

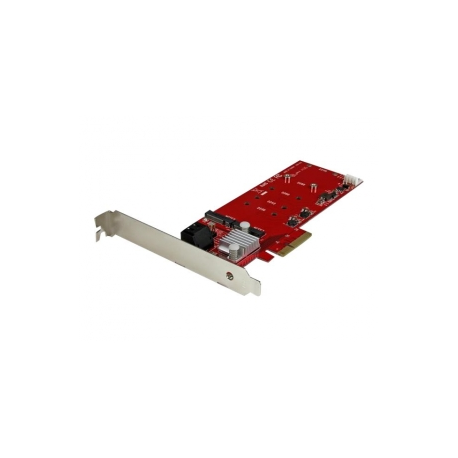

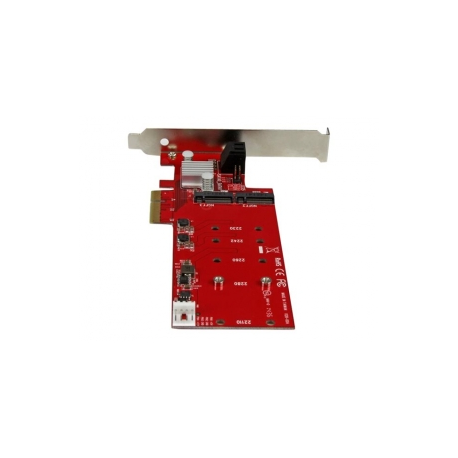

StarTech.com 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe - Two Slot PCI Express M.2 RAID Card plus Two SATA Ports (PEXM2SAT3422) - Storage controller (RAID) - M.2 - M.2 Card / SATA 6Gb / s - RAID 0, 1, 10, JBOD - PCIe 2.0 x2 - for P / N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142
images are for illustrative purposes only
New
Article: 1350097 SKU: PEXM2SAT3422
Pricing and stock details are available to registered users only.
| Device Type | Storage controller (RAID) - plug-in card |
| Hard Drive Form Factor Compatibility | M.2 |
| Host Bus | PCIe 2.0 x2 |
| Interface | M.2 Card / SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Disk array (RAID) |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD |
| Processor | Marvell 88SE9230 |
| Interfaces | 2 x M.2 Card - M.2 Card (internal) |

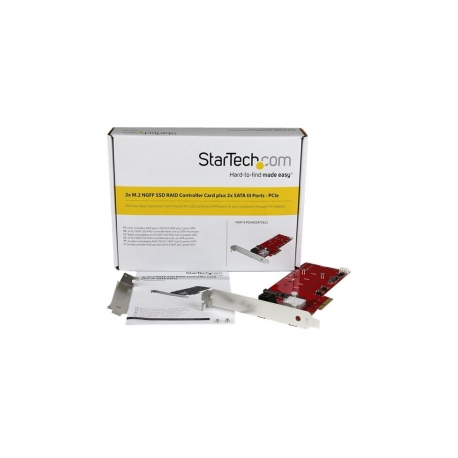

| Included Accessories | Low-profile bracket, 2 x M.2 mounting screws |
| Features | Support port multiplier |
| Compliant Standards | FCC, RoHS |
| Service & Support | Limited warranty - 2 years |
| Width | 2 cm |
| Depth | 18 cm |
| Height | 12 cm |
| Weight | 100 g |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Designed For | P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16 |
