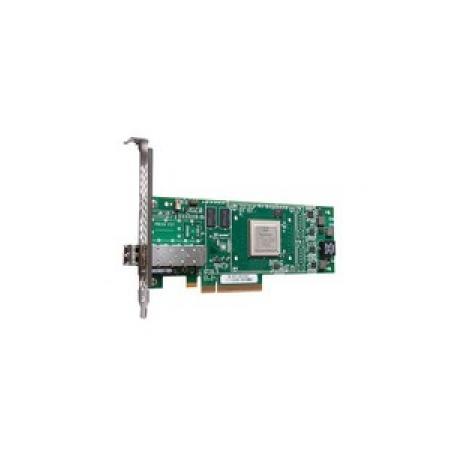

HPE StoreFabric SN1000Q 16Gb Single Port - Host bus adapter - PCIe 3.0 x4 low profile - 16Gb Fibre Channel - for Modular Smart Array 2040; ProLiant DL360p Gen8, DL385p Gen8, ML350p Gen8; StoreEasy 3850
HPE StoreFabric SN1000Q 16Gb Single Port - Host bus adapter - PCIe 3.0 x4 low profile - 16Gb Fibre Channel - for Modular Smart Array 2040; ProLiant DL360p Gen8, DL385p Gen8, ML350p Gen8; StoreEasy 3850
Manufacturer
•HP
Reference
•QW971A
Article
•1018789
<div><div>Looking for a high bandwidth solution to meet the requirements of increasing server virtualization and consolidation? Finding it difficult to realize the full bandwidth potential of your server running I/O intensive applications? HPE StoreFabric SN1000 16Gb Host Bus Adapters enable more rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for greater virtual machine density and bandwidth requirement environments, the SN1000 16Gb HBAs enable more applications and virtual machines to run on a single server and port, resulting in reduced cabling and higher return on IT investment. A 16Gb FC HBA is backward compatible with 8 and 4Gb storage networks and will protect future investments. With the ability to deliver twice the I/O performance of 8Gb FC HBAs, the SN1000 16Gb HBAs take Storage Networking performance and efficiency to the next level.<br /></div>
<span>
<!-- ProductFeautures here -->
</span><div class="cPF"><ul><li><strong>The Highest Performing Fibre Channel Host Bus Adapters</strong><br />The HPE StoreFabric SN1000 16Gb Host Bus Adapters deliver twice the I/O performance of 8Gb Fibre Channel HBAs.<br />Moving to 16Gb technology provides the infrastructure required for the more powerful servers and data intensive applications of the future.<br />When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.</li><li><strong>Best Fibre Channel HBAs for Virtualization</strong><br />Ideal for the implementation of virtual servers with the power to drive multiple virtual machines.<br />Allows a single port to acquire multiple N Port IDs, eliminating the need for additional physical ports.<br />Datacenter administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict.<br />Improves host utilization and enhances application performance.</li><li><strong>Next Generation HBAs with Improved IOPS Performance per Watt</strong><br />Power savings result in lower operating expenditure.</li></ul></div>
</div>
Device Type
Host bus adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x4
Ports
16Gb Fibre Channel
Connectivity Technology
Wired
Data Link Protocol
16Gb Fibre Channel (Short Wave)
Features
Auto-negotiation
Expansion Slots
2 (total) / 0 (free) x SFP+
Interfaces
1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2
Compatible Slots
1 x PCI Express 3.0 x4
Included Accessories
Low-profile bracket, full-height bracket, 2 x 16Gb SFP+
Width
1.6 cm
Depth
16.8 cm
Height
11.9 cm
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
Designed For
HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage ¦ HPE ProLiant DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance ¦ HPE StoreEasy 3850 Gateway Single Node
