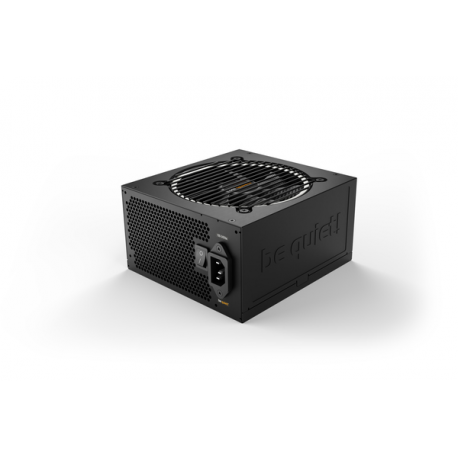

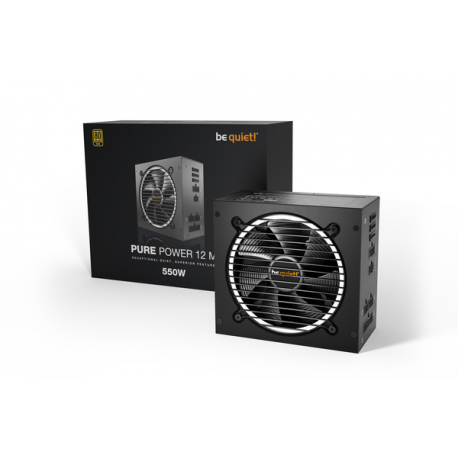

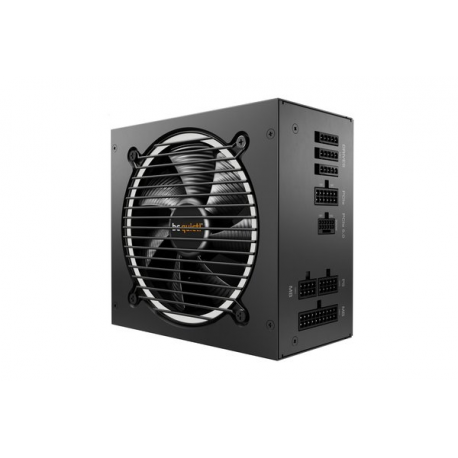

be quiet! Pure Power 12 M 550W - Power supply (internal) - ATX12V 3.0 / EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 550 Watt - active PFC - black
images are for illustrative purposes only
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Black |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

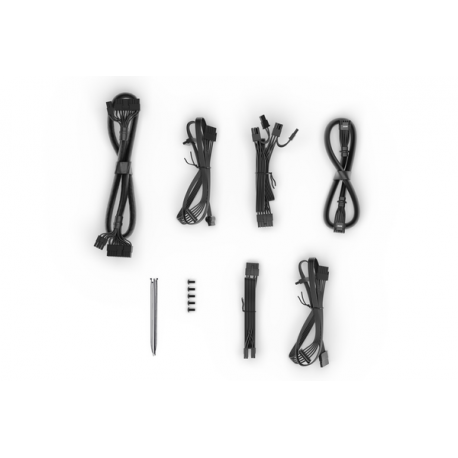

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x 12VHPWR ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V1 - 28 A ¦ +12V2 - 24 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90.9% at 100% Load, 92.8% at 50% Load (230 VAC), 70.4% at 2% Load (230 VAC), 85.2% at 10% Load (230 VAC), 89.3% at 20% Load (230 VAC) |
| Power Factor (PF) | 0.98 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Included Accessories | Screws, cable ties |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, thermal protection, surge & inrush protection, DC-DC technology, rifle bearing cooling fan, Synchronous Rectifier (SR) technology, fully modular, LLC resonant converter technology, Modern Standby compatible |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, RoHS, WEEE, cTUVus, ERP, RCM, cRUus, CU, UKCA, Triman, Energy Star 8.0 |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 10 years |
| Max Operating Temperature | 40 °C |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.45 kg |
| Shipping Width | 22 cm |
| Shipping Depth | 28.4 cm |
| Shipping Height | 10 cm |
| Shipping Weight | 2.74 kg |
