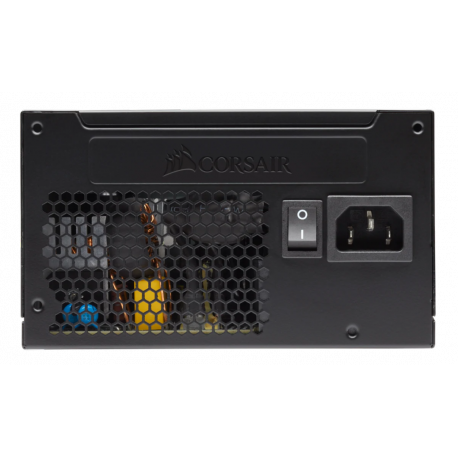

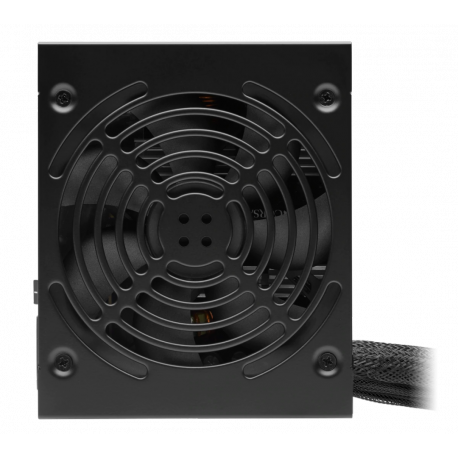

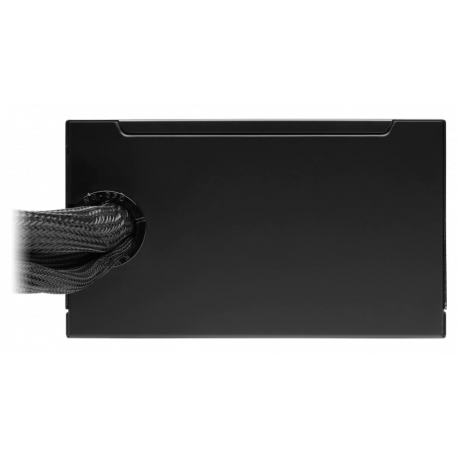

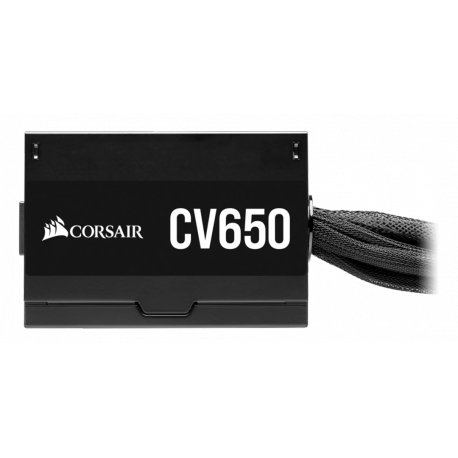

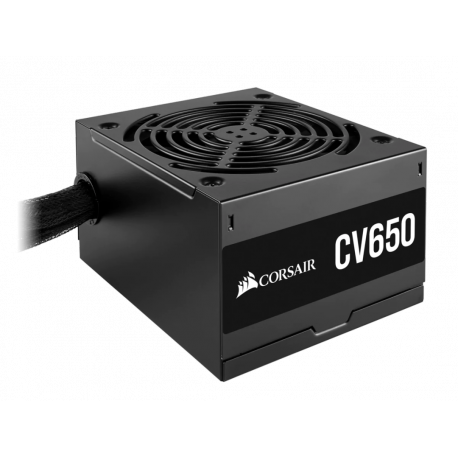

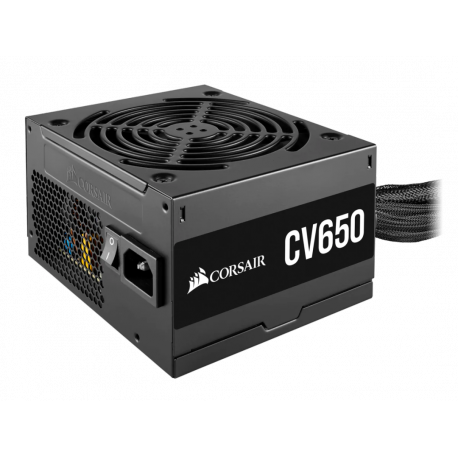

CORSAIR CV Series CV650 - Power supply (internal) - ATX12V / EPS12V - 80 PLUS Bronze - AC 100-240 V - 650 Watt - Europe - black powder coat
images are for illustrative purposes only
New
Article: 3037667 SKU: CP-9020236-EU
Pricing and stock details are available to registered users only.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 690 mm |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 67 cm |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 125 mm |
| Height | 86 mm |
| Weight | 1.9 kg |
| Harmonized System (HS) code | 84733020 |
