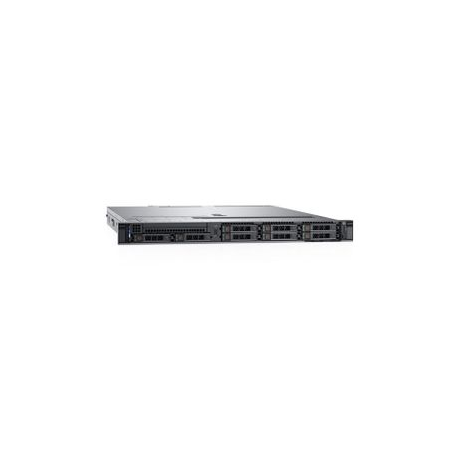

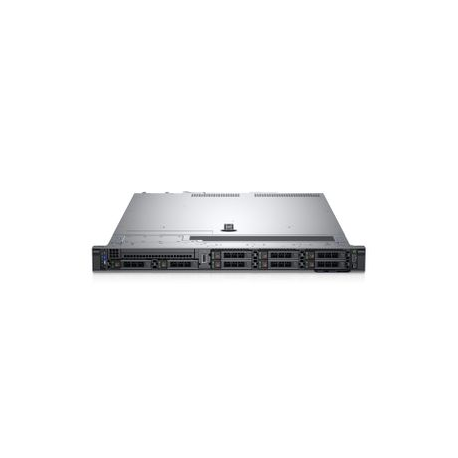

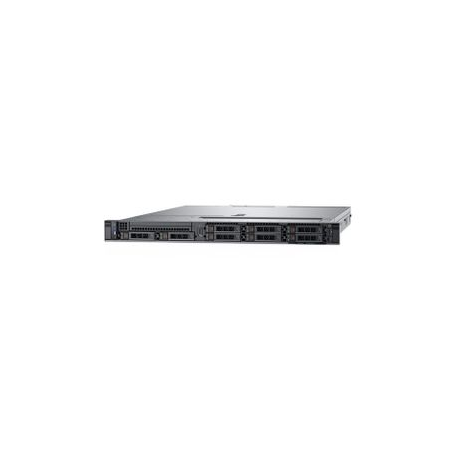

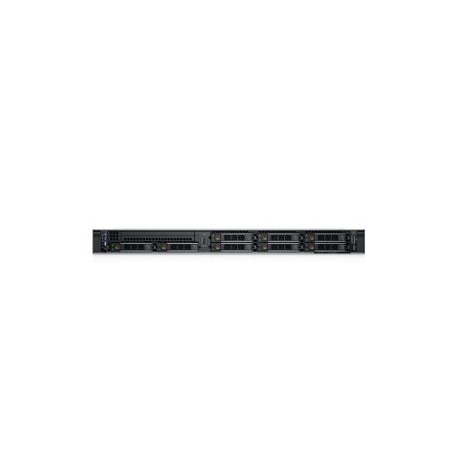

Dell EMC PowerEdge R6515 - Server - rack-mountable - 1U - 1-way - 1 x EPYC 7282 / 2.8 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - SSD 480 GB - G200eR2 - GigE - no OS - monitor: none - black - with 3 Years Basic Onsite
images are for illustrative purposes only
| Type | Server |
| Bundled Services | 3 Years Basic Onsite |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Colour | Black |
| CPU | AMD EPYC 7282 / 2.8 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Socket | Socket SP3 |
| Installed Size | L3 Cache - 64 MB |
| Cache Per Processor | 64 MB |
| Installed Size | 16 GB / 1 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 15 (empty) |
| Features | Registered, dual rank |
| Configuration Features | 1 x 16 GB |
| RAM Supported | 1 TB registered ¦ 2 TB 3DS Load-Reduced |
| Type | SSD - 2.5" |
| Capacity | 1 x 480 GB |
| Interface Type | SATA |
| Type | 1 x RAID |
| Storage Controller Name | Dell PERC H730P |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200eR2 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 Enterprise 15G (iDRAC9 15G) |
| Bays | 8 (total) / 7 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe x16 - low-profile |
| Interfaces | 2 x USB 3.0 - Type A ¦ 1 x USB 2.0 - Type A (1 in front) ¦ 1 x management - micro-USB (1 in front) (iDRAC Direct port) ¦ 1 x serial ¦ 2 x VGA (1 front, 1 rear) ¦ LAN (Gigabit Ethernet) ¦ 1 x management (iDRAC dedicated port) |
| Included Accessories | Bezel, riser card, rack rails without cable management arm |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 550 Watt |
| OS Provided | No operating system |
| Width | 48.2 cm |
| Depth | 67.769 cm |
| Height | 4.28 cm |
| Weight | 15.6 kg |
