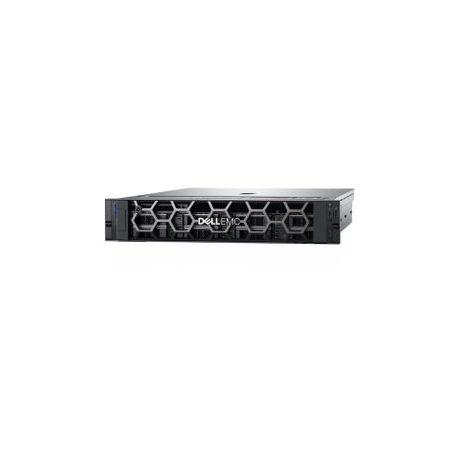

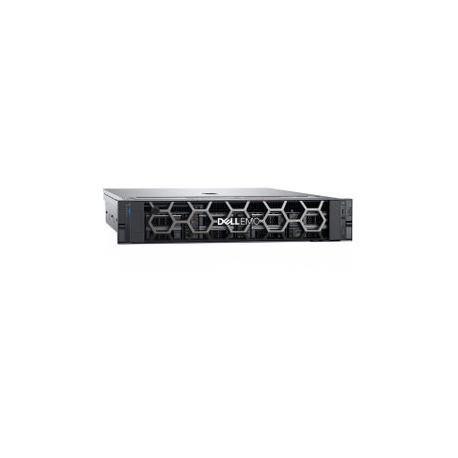

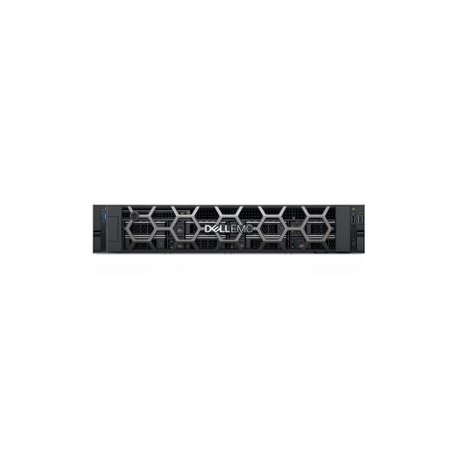

Dell EMC PowerEdge R7525 - Server - rack-mountable - 2U - 2-way - 2 x EPYC 7313 / 3 GHz - RAM 32 GB - SSD 480 GB - Matrox G200 - GigE - no OS - monitor: none - black - BTP - with 3 Years Basic Onsite
images are for illustrative purposes only
| Type | Server |
| Bundled Services | 3 Years Basic Onsite |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Colour | Black |
| CPU | AMD EPYC 7313 / 3 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | 16-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP3 |
| Installed Size | L3 Cache - 256 MB |
| Cache Per Processor | 128 MB |
| Installed Size | 32 GB / 2 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 30 (empty) |
| Features | Registered, dual rank |
| Configuration Features | 2 x 16 GB |
| RAM Supported | 2 TB registered ¦ 4 TB Load-Reduced |
| Type | SSD - 2.5" |
| Capacity | 1 x 480 GB |
| Interface Type | SATA |
| Type | 1 x RAID |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 Express 15G (iDRAC9 15G) |
| Compliant Standards | OCP 3.0 |
| Bays | 16 (total) / 15 (free) x 2.5" |
| Slots | 6 (total) / 6 (free) x PCIe x8 - half-length ¦ 2 (total) / 2 (free) x PCIe x16 |
| Interfaces | 1 x USB 3.0 ¦ 2 x USB 2.0 (1 front, 1 rear) ¦ 1 x management - micro-USB (1 in front) (iDRAC dedicated port) ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) |
| Included Accessories | Bezel, riser card, rack rails with cable management arm |
| Pricing Type | Build To Plan (BTP) |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| OS Provided | No operating system |
| Width | 48.2 cm |
| Depth | 77.213 mm |
| Height | 8.68 cm |
