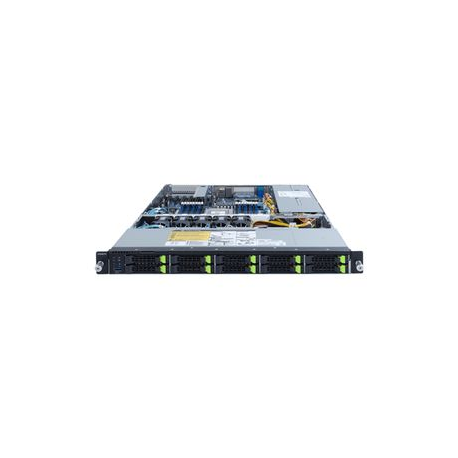

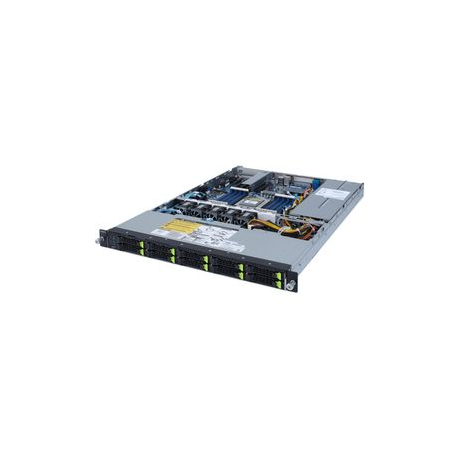

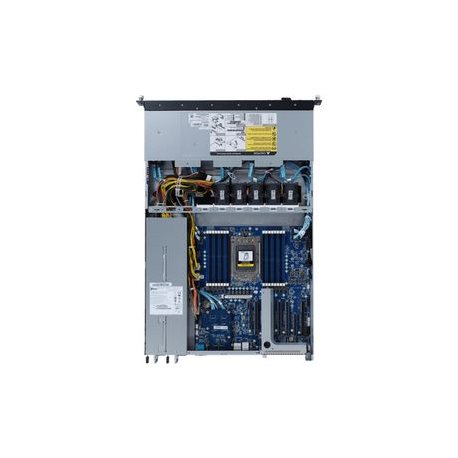

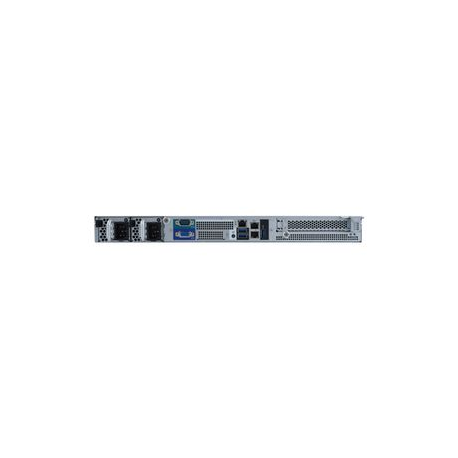

Gigabyte R152-Z33 - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - PCI Express - hot-swap 2.5" bay(s) - no HDD - AST2500 - GigE - no OS - monitor: none
images are for illustrative purposes only
New
Article: 1836872 SKU: 6NR152Z33MR-00
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 10 |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP3 |
| Motherboard Name | GIGABYTE MZ32-AR1 |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture |
| Type | No HDD |
| Type | 1 x NVMe |
| Controller Interface Type | PCI Express |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2500 |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 (full-height, half-length) ¦ 1 (total) / 0 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 2.0 ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280 (Key M) |
| Interfaces | 4 x USB 3.0 (1 front, 3 rear) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 1 x serial |
| Included Accessories | CPU Heatsink, rack rail kit |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1100 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| Width | 43.8 cm |
| Depth | 66 cm |
| Height | 4.35 cm |
| Weight | 11.74 kg |
| Shipping Width | 58.8 cm |
| Shipping Depth | 98.5 cm |
| Shipping Height | 25 cm |
| Shipping Weight | 20.32 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
