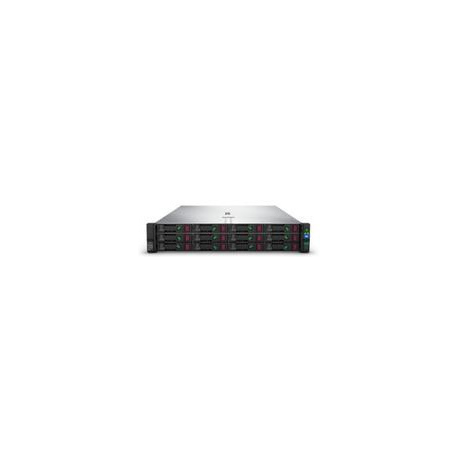

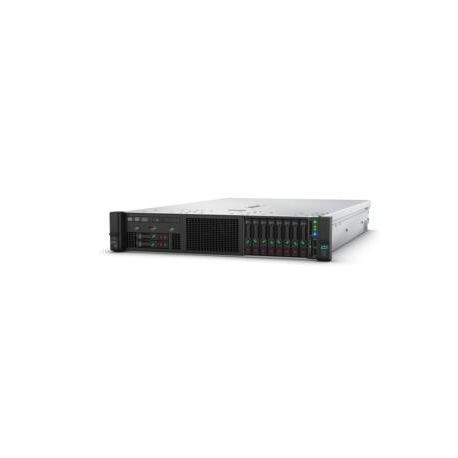

HPE ProLiant DL380 Gen10 Base - Server - rack-mountable - 2U - 2-way - 1 x Xeon Silver 4110 / 2.1 GHz - RAM 32 GB - SATA / SAS - hot-swap 3.5" bay(s) - no HDD - GigE - monitor: none
HPE ProLiant DL380 Gen10 Base - Server - rack-mountable - 2U - 2-way - 1 x Xeon Silver 4110 / 2.1 GHz - RAM 32 GB - SATA / SAS - hot-swap 3.5" bay(s) - no HDD - GigE - monitor: none
Manufacturer
•HPE
Reference
•868710-B21
Article
•1538667
Shipping weight
•14.9 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Built-in Devices
Battery
Server Scalability
2-way
Hot-Swap Bays Qty
12
CPU
Intel Xeon Silver 4110
Clock Speed
2.1 GHz
Max Turbo Speed
3 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Installed Size
L3 Cache - 11 MB
Cache Per Processor
11 MB
Installed Size
32 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
24 (Total) / 22 (empty)
Features
Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HP SmartMemory, 6-channel memory architecture
Configuration Features
2 x 16 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type
No HDD
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P816i-a
Channel Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
4 GB
Type
No optical drive
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
1 (total) / 1 (free) x external ¦ 12 (total) / 12 (free) x hot-swap 3.5" LFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 16 x SATA-600 / SAS 3.0 ¦ 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x DisplayPort (1 in front) ¦ 1 x USB 2.0 (1 in front)
Included Accessories
6 hot plug high performance fans
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
OS Certified
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Software
HPE Server UEFI
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Width
44.55 cm
Depth
73.02 cm
Height
8.73 cm
Weight
14.9 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
