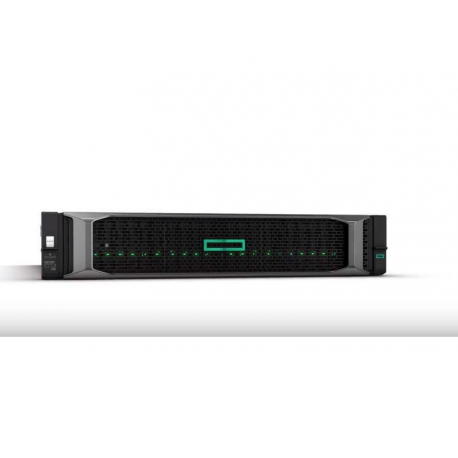

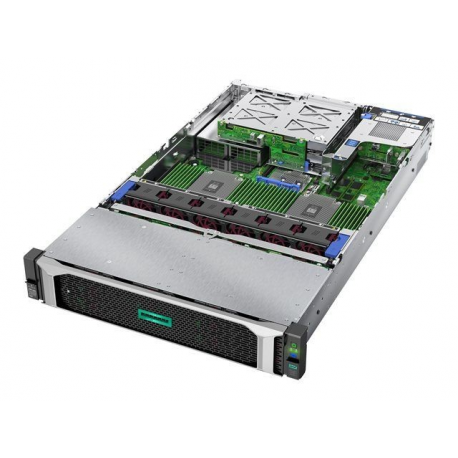

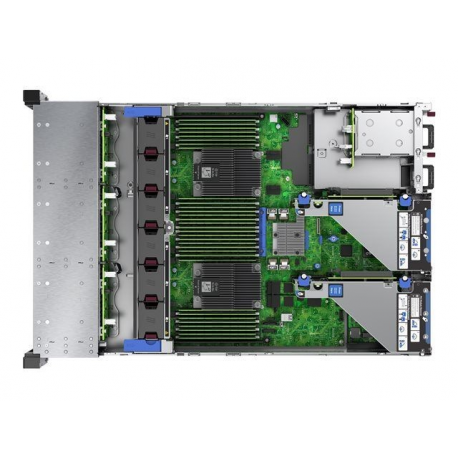

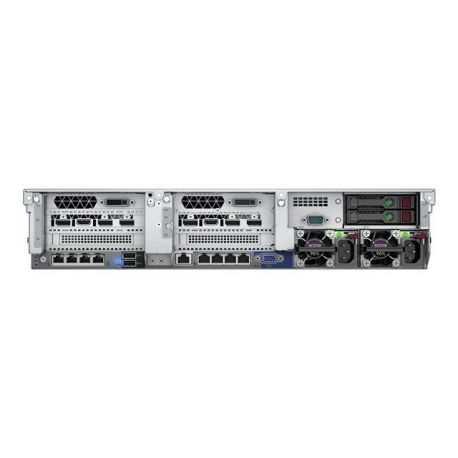

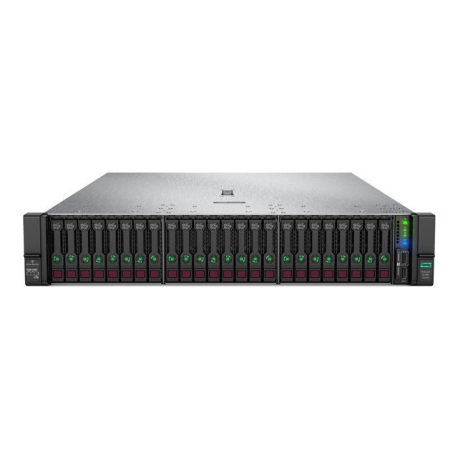

HPE ProLiant DL385 Gen10 Base - Server - rack-mountable - 2U - 2-way - 1 x EPYC 7301 / 2.2 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
HPE ProLiant DL385 Gen10 Base - Server - rack-mountable - 2U - 2-way - 1 x EPYC 7301 / 2.2 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
Manufacturer
•HPE
Reference
•878718-B21
Article
•1535979
Shipping weight
•14.9 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Built-in Devices
Led panel
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
CPU
AMD EPYC 7301
Clock Speed
2.2 GHz
Max Turbo Speed
2.7 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Installed Size
L3 Cache - 64 MB
Cache Per Processor
64 MB
Installed Size
32 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-20800
Form Factor
DIMM 288-pin
Slots
32 (Total) / 30 (empty)
Features
Registered, HPE SmartMemory
Configuration Features
2 x 16 GB
RAM Supported
PC4-20800 - 1 TB registered ¦ PC4-20800 - 4 TB Load-Reduced
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM
Buffer Size
2 GB
Type
No optical drive
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Interface (Bus) Type
PCI Express 2.0 x4
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HP 331FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), ACPI support, PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Bays
1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 1 (free) x CPU ¦ 32 (total) / 30 (free) x DIMM 288-pin
Interfaces
1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear)
Included Accessories
Cable management arm, HPE Easy Install Rails, 4 standard fans
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
Software
HPE Server UEFI, HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Width
44.55 cm
Depth
67.94 cm
Height
8.73 cm
Weight
14.9 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
31 dBA
