Intel Server System R1304WFTYSR - Server - rack-mountable - 1U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - GigE, 10 GigE - monitor: none
images are for illustrative purposes only
New
Article: 1651979 SKU: R1304WFTYSR
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C624 |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 24 (Total) / 24 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| Type | No HDD |
| Type | RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Type | No optical drive |
| Monitor Type | None. |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | Integrated BMC with IPMI |
| Bays | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal M.2 |
| Slots | 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces | 5 x USB ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x serial ¦ Management |

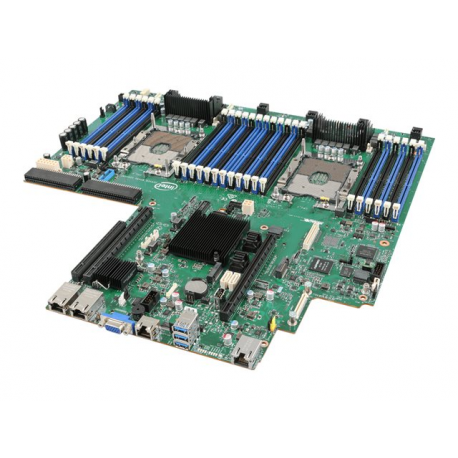

| Included Accessories | 2 x PCI-Express (1x16) Riser Card, 2 x CPU Heatsink, air duct, 4 x 3.5" hot-swap drive trays, 12Gb SAS backplane, 4 x 3.5" hot swap drive tool less carriers, standard control panel assembly, front I/O panel assembly, 6 x system fans, 2 x standard CPU carriers, 2 x CPU heatsink "NO CPU" labels insert, Chassis with Quick Reference Label affixed to top cover, Intel Server Board S2600WFTR |
| Cables Included | I2C cable ¦ Mini SAS HD cable (2 pcs.) ¦ Power cable |
| Device Type | Power supply |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Power Provided | 1100 Watt |
| Service & Support | Limited warranty - 3 years |
| Width | 43 cm |
| Depth | 71 cm |
| Height | 4.37 cm |
