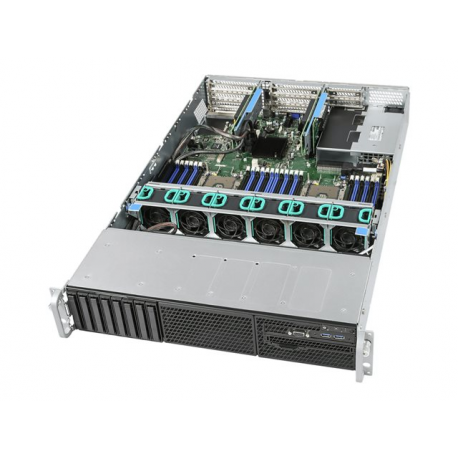

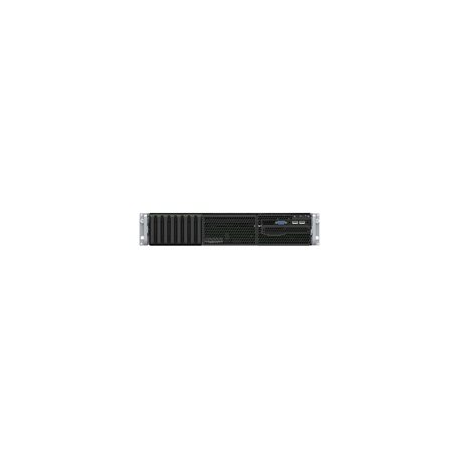

Intel Server System R2308WFTZSR - Server - rack-mountable - 2U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - GigE, 10 GigE - monitor: none
images are for illustrative purposes only
New
Article: 1651991 SKU: R2308WFTZSR
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 8 |
| Hot-Swap Bays Qty | 8 |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C624 |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 24 (Total) / 24 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| Type | No HDD |
| Type | RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Type | No optical drive |
| Monitor Type | None. |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | Integrated BMC with IPMI |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal 2.5" / 2xM.2 shared |
| Slots | 6 (total) / 6 (free) x PCIe 3.0 x8 |
| Interfaces | 5 x USB ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x serial |

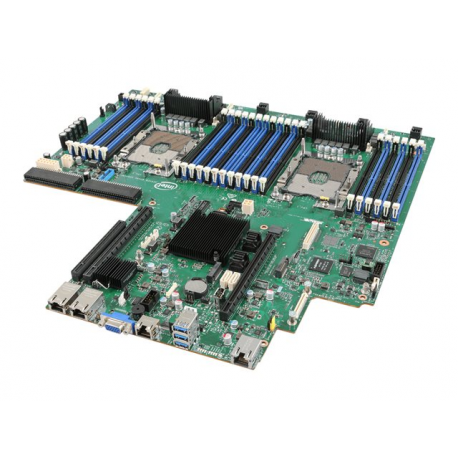

| Included Accessories | 2 x CPU Heatsink, air duct, 12Gb SAS backplane, standard control panel assembly, front I/O panel assembly, 6 x system fans, 8 x DIMM slot blanks, power supply bay blank insert, 2 x riser card brackets, 2 x 3-slot PCIe riser cards, 2-slot low profile PCIe riser card, Chassis with Quick Reference Label affixed to top cover, 2 x CPU heatsink "NO CPU" Mylar spacer insert, Intel Server Board S2600WFTR, 8 x 3.5" hot-swap drive bays with drive carriers and blanks, 8 x 3.5" hot-swap drive tool less carriers, SATA optical drive power |
| Device Type | Power supply |
| Power Redundancy | Optional |
| Installed Qty | 1 |
| Power Provided | 1300 Watt |
| Service & Support | Limited warranty - 3 years |
| Width | 43 cm |
| Depth | 71 cm |
| Height | 8.74 cm |
