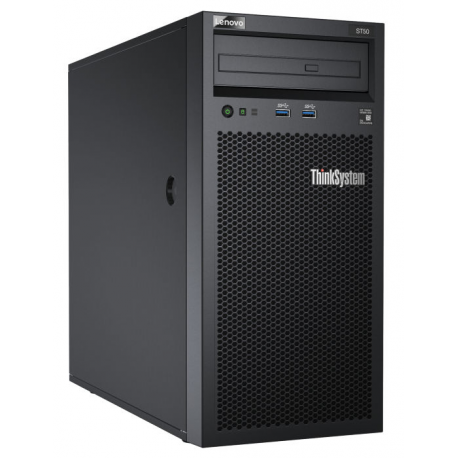

Lenovo ThinkSystem ST50 7Y48 - Server - tower - 4U - 1-way - 1 x Xeon E-2224G / 3.5 GHz - RAM 8 GB - HDD 2 x 1 TB - DVD-Writer - UHD Graphics P630 - GigE - no OS - monitor: none
images are for illustrative purposes only
New
Article: 1809141 SKU: 7Y48A03EEA
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| Localisation | Region: EMEA |
| CPU | Intel Xeon E-2224G / 3.5 GHz |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Virtualization Technology, Intel Turbo Boost Technology |
| Chipset Type | Intel C246 |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Installed Size | 8 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered, mixing of different types of memory modules is not supported |
| Configuration Features | 1 x 8 GB |
| Type | HDD |
| Capacity | 2 x 1 TB |
| Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| RAID Level | JBOD |
| Type | DVD-Writer DVD-Writer |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics P630 |
| Video Interfaces | DisplayPort |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 12 |
| Compliant Standards | DASH 1.1 |
| Bays | 1 (total) / 0 (free) x external 5.25" x 1/6H (Slim Line) 4 (total) / 2 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode) |
| Interfaces | 4 x USB 3.1 Gen 1 (2 front, 2 rear) 2 x USB 2.0 2 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x serial 1 x audio line-out |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, CECP, GB 4943.1, BIS, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TR CU 020/2011, TR CU 004/2011, UL 62368-1, ASHRAE Class A2, CELP, VCCI 32 |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 250 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Width | 17.5 cm |
| Depth | 40.7 cm |
| Height | 37.5 cm |
| Weight | 7.5 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% |
