Lenovo ThinkSystem ST550 7X10 - Server - tower - 4U - 2-way - 1 x Xeon Silver 4210R / 2.4 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE - no OS - monitor: none

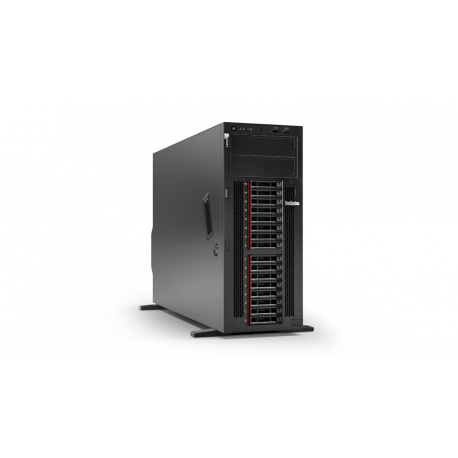

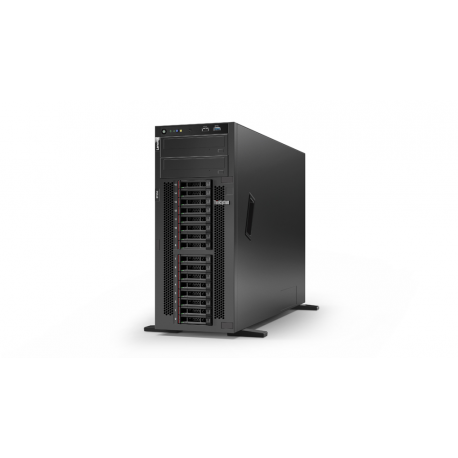

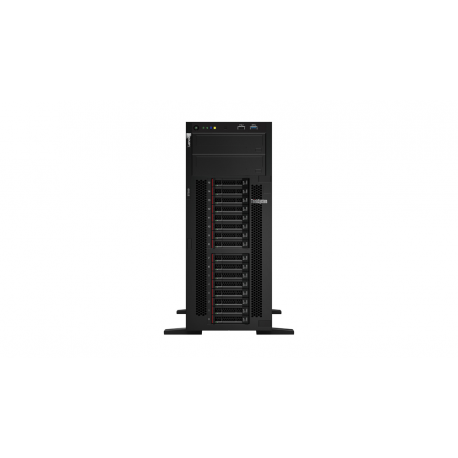

images are for illustrative purposes only
New
Article: 1894682 SKU: 7X10A0D4EA
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: EMEA |
| CPU | Intel Xeon Silver 4210R |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Processor Main Features | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Installed Size | 13.75 MB |
| Cache Per Processor | 13.75 MB |
| Installed Size | 16 GB / 768 GB (max) |
| Technology | DDR4 SDRAM - ECC Chipkill |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (Total) / 11 (empty) |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only |
| Configuration Features | 1 x 16 GB |
| Type | No HDD |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | ThinkSystem RAID 930-8i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Buffer Size | 2 GB |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel X722 |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, CIM, IPMI 2.0 |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Features | Wake on LAN (WoL) |
| Bays | 2 external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 1 PCIe 3.0 x8 - half-length, full-height ¦ 1 PCIe 3.0 x16 - half-length, full-height ¦ 1 PCIe 3.0 x16 - full-length, full-height, double-width ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width (2 processors must be installed) ¦ 1 PCIe 3.0 x8 - full-length, full-height |
| Interfaces | 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) |
| Cables Included | Power cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Compliant Standards | TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, CNS 13438 Class A, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 55032 Class A, CISPR 32 Class A, TR CU 020/2011, TR CU 004/2011, JESL, IEC/UL 60950-1, IEC 62368-1: 2014, CNS 15663 |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Width | 17.58 cm |
| Depth | 66.64 cm |
| Height | 42.55 cm |
| Weight | 36.9 kg |
