Lenovo ThinkSystem ST650 V2 7Z74 - Server - tower - 4U - 2-way - 1 x Xeon Silver 4309Y / 2.8 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE, 10 GigE - no OS - monitor: none

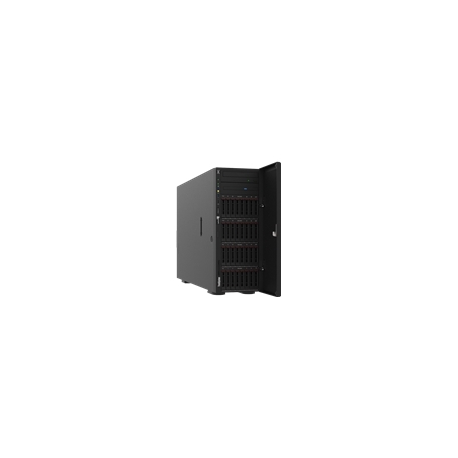

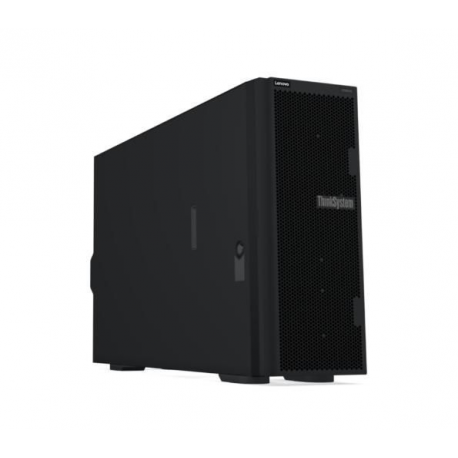

images are for illustrative purposes only
New
Article: 2829810 SKU: 7Z74A02TEA
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | Led panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: EMEA |
| CPU | Intel Xeon Silver (3rd Gen) 4309Y |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| CPU Socket | LGA4189 Socket |
| Chipset Type | Intel C621A |
| Installed Size | L3 Cache - 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 32 GB / 2 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2667 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 31 (empty) |
| Features | Registered, Memory Mirroring, 8-channel memory architecture, TruDDR4, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 4 TB 3DS registered 2 TB registered 5 TB |
| Type | No HDD |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | ThinkSystem RAID 930-8i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Features | PXE support |
| Bays | 2 (total) / 2 (free) x external 5.25" x 1/2H 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 2 PCIe 4.0 x16 - full-length, full-height 1 PCIe 4.0 x8 - full-length, full-height (x4 mode) 1 PCIe 4.0 x8 - full-length, full-height 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed) 2 (total) / 2 (free) x PCIe 4.0 x16 - full-length, full-height (2 processors must be installed) 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed) |
| Interfaces | 7 x USB 3.1 Gen 1 (1 front, 4 rear, 2 internal) 1 x USB 2.0 (1 in front) 1 x VGA 1 x serial 1 x management (Gigabit Ethernet) - RJ-45 2 x LAN (10Gigabit Ethernet) - RJ-45 |
| Included Accessories | 3 x standard fans |
| Theft/Intrusion Protection | Chassis intrusion switch |
| Compliant Standards | BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, FCC Part 15 A, GREENGUARD, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, CELP, HJ 2507-2011, TP EAC 037/2016, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135 |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Width | 17.5 cm |
| Depth | 73.4 cm |
| Height | 46.2 cm |
| Weight | 39.28 kg |
| Shipping Width | 59.7 cm |
| Shipping Depth | 99.6 cm |
| Shipping Height | 37.4 cm |
