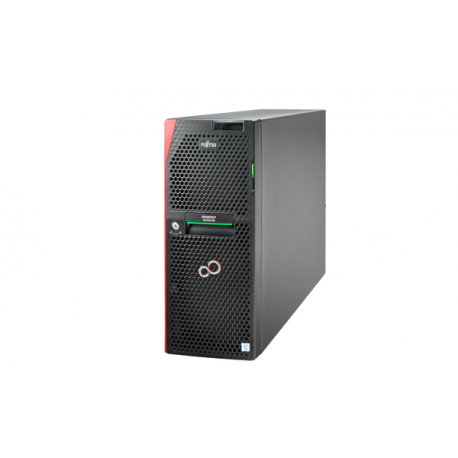

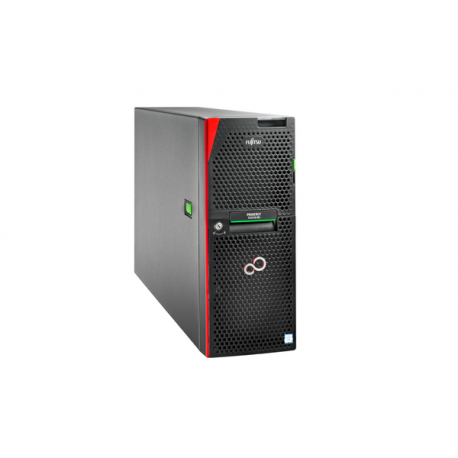

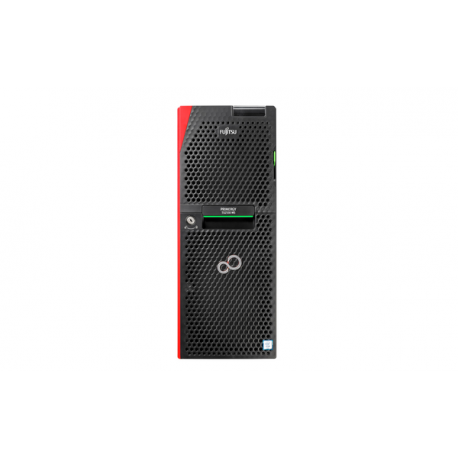

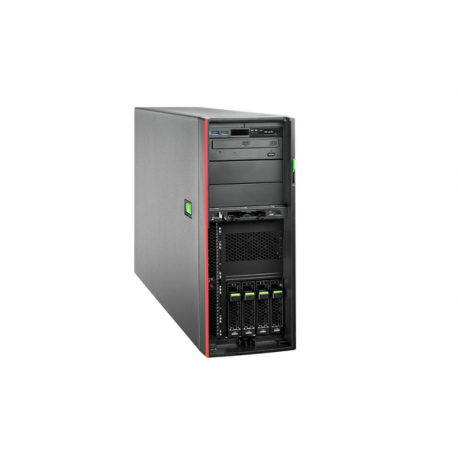

Fujitsu PRIMERGY TX2550 M5 - Server - tower - 4U - 2-way - 1 x Xeon Silver 4210 / 2.2 GHz - RAM 16 GB - SATA - hot-swap 2.5" bay(s) - no HDD - DVD SuperMulti - GigE - no OS - monitor: none
Fujitsu PRIMERGY TX2550 M5 - Server - tower - 4U - 2-way - 1 x Xeon Silver 4210 / 2.2 GHz - RAM 16 GB - SATA - hot-swap 2.5" bay(s) - no HDD - DVD SuperMulti - GigE - no OS - monitor: none
Manufacturer
•FUJITSU
Reference
•VFY:T2555SC210IN
Article
•1723612
Shipping weight
•1 kg
Type
Server
Product Form Factor
Tower - 4U
Server Scalability
2-way
Front Accessible Bays Qty
3
Hot-Swap Bays Qty
4
CPU
Intel Xeon Silver 4210 / 2.2 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
10-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C624
Installed Size
13.75 MB
Cache Per Processor
13.75 MB
Installed Size
16 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2933 MHz
Slots
12 (Total) / 11 (empty)
Features
Registered, single rank, Memory Mirroring, slots 7 - 12 are available in two-processor configuration only
Configuration Features
1 x 16 GB
Type
No HDD
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 10
Type
DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA
Monitor Type
None.
Video Interfaces
VGA
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I210
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Integrated Remote Management Controller (iRMC S5)
Features
PXE support
Bays
4 (total) / 4 (free) x hot-swap 2.5"
3 (total) / 2 (free) x external 5.25"
Slots
3 (total) / 3 (free) x PCIe 3.0 x8 - full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - full-height
2 (total) / 2 (free) x PCIe 3.0 x16 - full-height (2 processors must be installed)
Interfaces
7 x USB 3.0 (2 front, 4 rear, 1 internal)
1 x VGA
2 x LAN (Gigabit Ethernet)
1 x management
1 x USB 2.0
Compliant Standards
FCC Class A certified, C-Tick, BSMI, GS, CB, CCC, RoHS, WEEE, VCCI V-3, cCSAus, JIS C 61000-3-2, KN32, KN35
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
450 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
OS Provided
No operating system
Service & Support
Limited warranty - 3 years - on-site
Width
17.7 cm
Depth
77.7 cm
Height
45.6 cm
Min Operating Temperature
5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 85% (non-condensing)
