Supermicro SuperServer 7049A-T - Server - tower - 4U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2500 - GigE - monitor: none - black

  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
  • 4U BARE 2XPHI C621 8X3.5HS (Dual Socket P (LGA 3647), 16x DIMM DDR4, Intel C621, 10x SATA III, 2x NVMe, 2x RJ-45, USB 3.0/3.1, V
images are for illustrative purposes only

New

Article: 1614563 SKU: SYS-7049A-T
Pricing and stock details are available to registered users only.
 Add to compare
TypeServer
Product Form FactorTower - 4U
Server Scalability2-way
Front Accessible Bays Qty3
Hot-Swap Bays Qty8
ColourBlack
CPUNo CPU
Max CPU Qty2
CPU UpgradabilityUpgradable
CPU SocketSocket P
Chipset TypeIntel C621
Installed Size0 GB / 2 TB (max)
TechnologyDDR4 SDRAM - ECC
Form FactorDIMM 288-pin
Slots16 (Total) / 16 (empty)
FeaturesRegistered, 3DS Load-Reduced DIMM (LRDIMM)
RAM Supported2 TB 3DS Load-Reduced - ECC ¦ 512 GB registered - ECC
TypeNo HDD
Type1 x SATA
Controller Interface TypeSATA 6Gb/s
Channel Qty10
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
TypeNo optical drive
Monitor TypeNone.
Graphics ProcessorASPEED AST2500
Video InterfacesVGA
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Ethernet Ports2 x Gigabit Ethernet
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Remote Management ProtocolIPMI 2.0

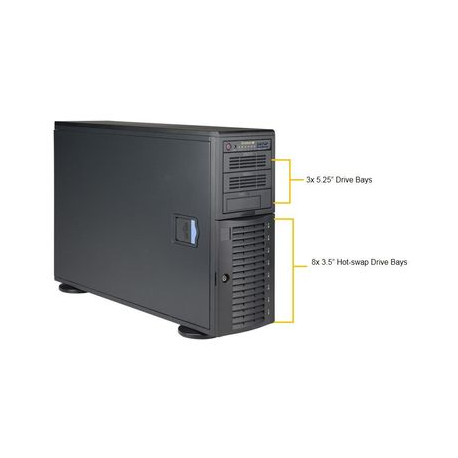

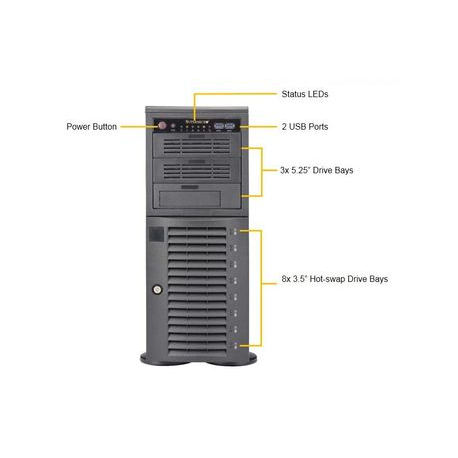

Bays8 (total) / 8 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25"

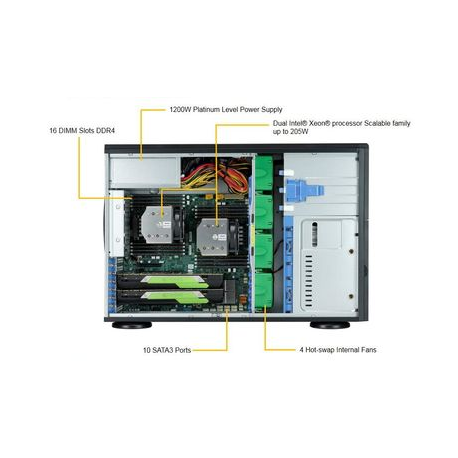

Slots2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 288-pin ¦ 4 (total) / 4 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x M.2 Card - 2260/2280/22110

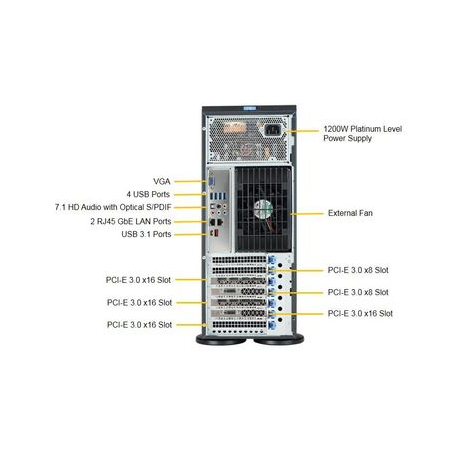

Interfaces2 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 ¦ 6 x USB 3.0 (2 front, 4 rear) ¦ 1 x USB-C 3.1 ¦ 1 x VGA ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x microphone ¦ 1 x audio line-out (centre/subwoofer) ¦ 1 x audio line-out (rear) ¦ 1 x TOSLINK
Included Accessories2 x CPU Heatsink
Cables IncludedCross-over mini SAS HD to 4 x SATA HDD cable (2 pcs.)
Device TypePower supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Provided1200 Watt
80 PLUS Certification80 PLUS Platinum
Service & SupportLimited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year
Width17.8 cm
Depth64.8 cm
Height45.2 cm
Min Operating Temperature10 °C
Max Operating Temperature35 °C
Humidity Range Operating8 - 90% (non-condensing)
