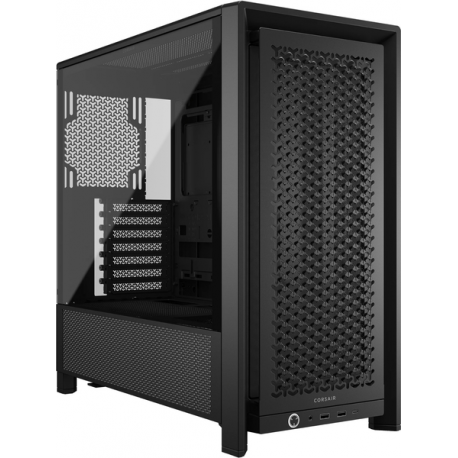

CORSAIR FRAME 4000D - Mid tower - extended ATX - windowed side panel (tempered glass) - no power supply (ATX) - black - USB/Audio
images are for illustrative purposes only
New
Article: 4196364 Intrastat: 39269097 SKU: CC-9011290-WW
Pricing and stock details are available to registered users only.
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, tempered glass, plastic |
| Colour | Black |

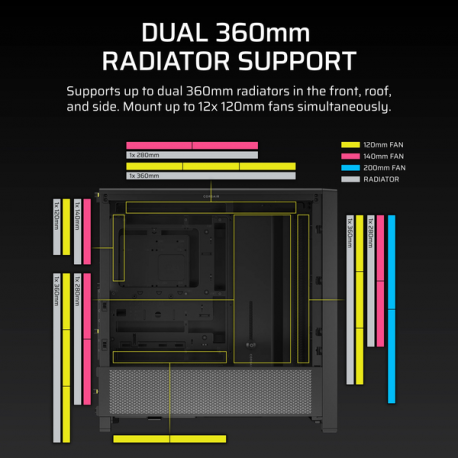

| Cooling System | Front: 120 mm fan mount x 3 / 2 x 140/200 mm fan or 120/140/240/280/360 mm radiator supported Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported Side: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported PSU shroud: 120 mm fan mount x 2 Rear: 120/140 mm fan mount x 1 / 120/140 mm radiator supported |
| CPU Cooler Max Height | 170 mm |
| Video Card Max Length | 370 mm |
| Power Supply Max Length | 220 mm |

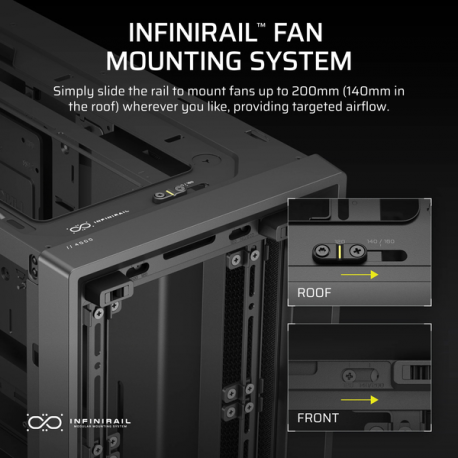

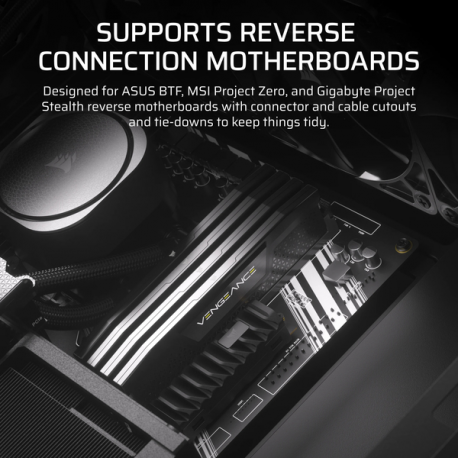

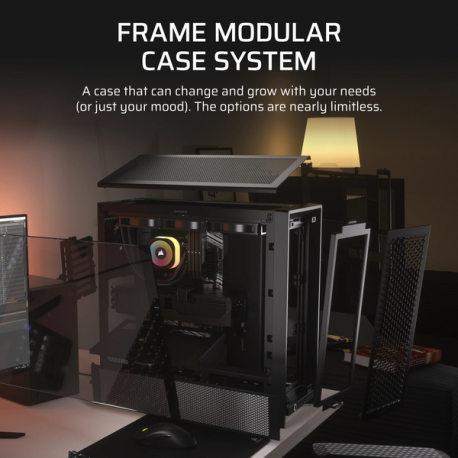

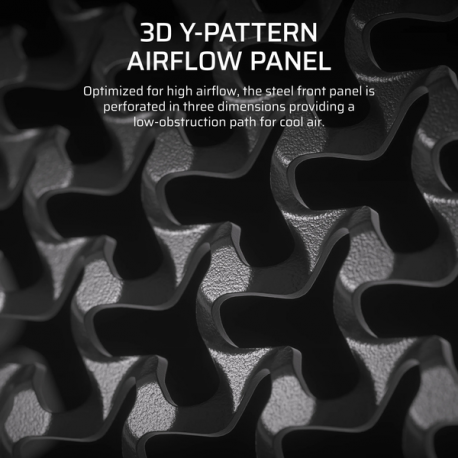

| System Cabinet Features | InfiniRail fan mounting system, support back-connect motherboard, 3D Y-parttern airflow front panel, fully modular, graphics card holder, integrated cable management, cable management system (30 mm clearance), vertical/horizontal graphic card orientation, top panel dust filter, side magnetic dust filter, bottom dust filter |
| Expansion Bays | Internal - 2x2.5" / 1x3.5" shared Internal - 2x2.5" / 1x3.5" shared |
| Expansion Slots | 7 x horizontal 3 x vertical |

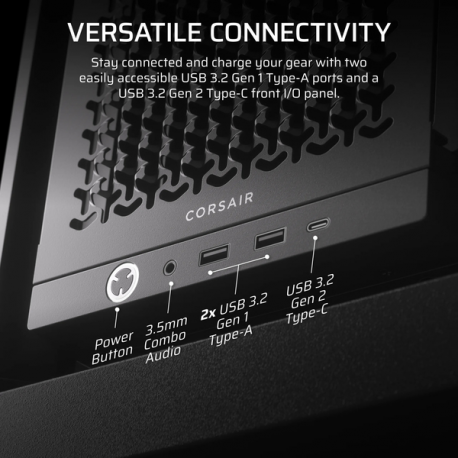

| Interfaces | 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x headphone/microphone - mini-jack |
| Included Accessories | Side fan mounting bracket, side panel blank-out, graphic card holder, front I/O adapter, cable ties, screws |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |

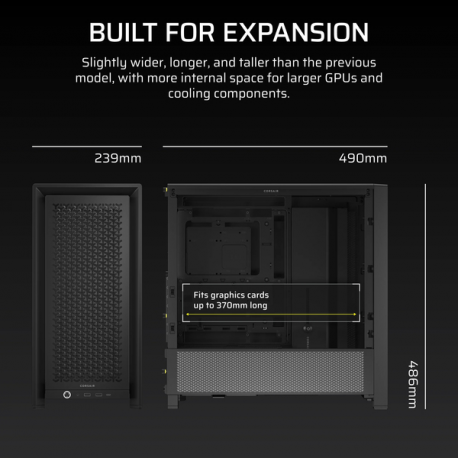

| Width | 23.9 cm |
| Depth | 49 cm |
| Height | 48.6 cm |
| Service & Support | Limited warranty - 2 years |
