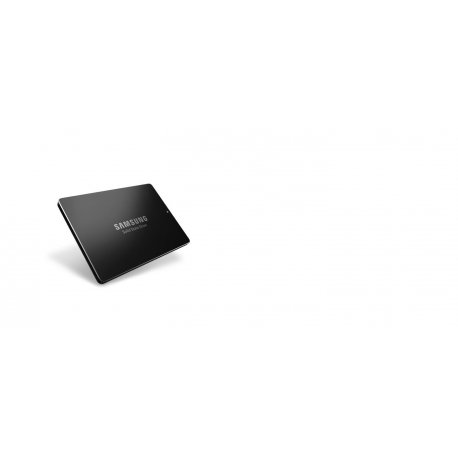

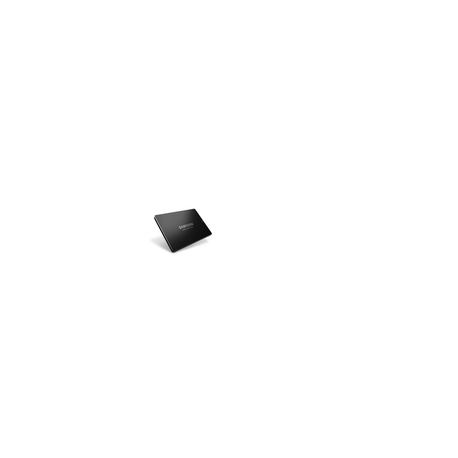

Samsung PM883 MZ7LH480HAHQ - SSD - encrypted - 480 GB - internal - 2.5" - SATA 6Gb / s - 256-bit AES

  • Samsung SSD Server PM883, 480 GB; Serial ATA 6.0 Gbps; 2.5 Inch; Seq. Read 550
  • Samsung SSD Server PM883, 480 GB; Serial ATA 6.0 Gbps; 2.5 Inch; Seq. Read 550
  • Samsung SSD Server PM883, 480 GB; Serial ATA 6.0 Gbps; 2.5 Inch; Seq. Read 550
images are for illustrative purposes only

New

Article: 1551793 Intrastat: 84717050 SKU: MZ7LH480HAHQ-00005
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSolid state drive - internal
Capacity480 GB
Hardware EncryptionYes
Encryption Algorithm256-bit AES
NAND Flash Memory Type3D triple-level cell (TLC)
Form Factor2.5"
InterfaceSATA 6Gb/s
Bytes per Sector512
FeaturesNative Command Queuing (NCQ), TRIM support, Power Disable Pin (Pin3)
Width69.85 mm
Depth100.2 mm
Height6.8 mm
Weight70 g
Drive Writes Per Day (DWPD)1.3
SSD Endurance683 TB
Data Transfer Rate DetailsSerial ATA: 600 MB/s
Drive Transfer Rate600 MBps (external)
Internal Data Rate550 MBps (read) / 520 MBps (write)
4KB Random Read98000 IOPS
4KB Random Write28000 IOPS
Average Latency40 µs
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
InterfacesSATA 6 Gb/s
Compatible Bay2.5"
Power Consumption2.3 Watt (read) ¦ 2.9 Watt (write) ¦ 1.3 Watt (idle)
Compliant StandardsRoHS
Min Operating Temperature0 °C
Max Operating Temperature70 °C
Min Storage Temperature-40 °C
Max Storage Temperature85 °C
Humidity Range Operating5 - 95% (non-condensing)
Shock Tolerance (non-operating)1500 g @ 0.5 ms half-sine
Vibration Tolerance (non-operating)20 g @ 20-2000 Hz
