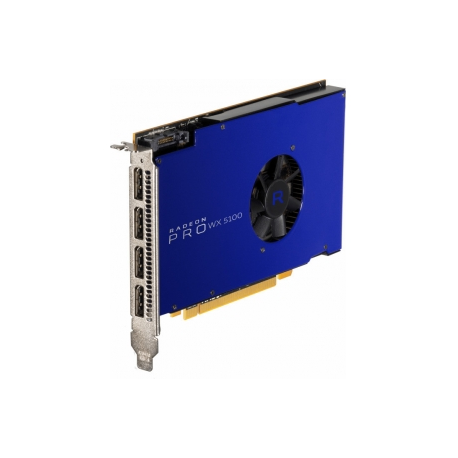

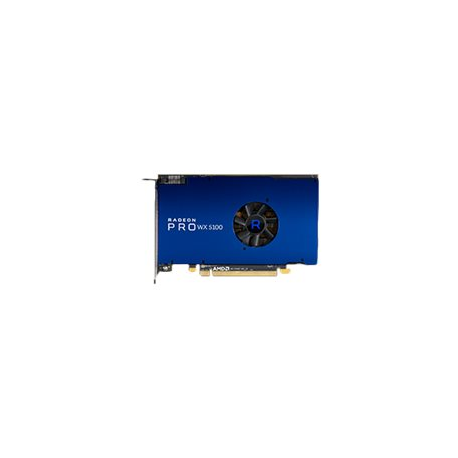

AMD Radeon Pro WX5100 - Graphics card - Radeon Pro WX 5100 - 8 GB GDDR5 - PCIe 3.0 x16 - 4 x DisplayPort
images are for illustrative purposes only
New
Article: 1344146 Intrastat: 84718000 SKU: 100-505940
Pricing and stock details are available to registered users only.
The Radeon Pro WX 5100 workstation graphics card is designed to be ready for the game engine revolution in professional design workflows. Game engines (such as Unity and Unreal) have become more commonplace in today's immersive computing era, integrating themselves alongside traditional CAD applications like Autodesk, Siemens PLM and SOLIDWORKS. Bring your designs to life with the Radeon Pro WX 5100, the fast 75 W TDP workstation card in the world.
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | AMD Radeon Pro WX 5100 |
| Stream Processors | 1792 |
| Process Technology | 14 nm |
| Max Resolution | 5120 x 2880 |
| Interfaces | 4 x DisplayPort |
| API Supported | DirectX 12, OpenGL 4.5, OpenCL 2.0, Vulkan |
| Features | AMD Eyefinity Technology, AMD CrossFireX Technology, HDR texture compression, DirectGMA support, FreeSync Technology, FinFET technology, 3D Stereo Connectivity |
| Size | 8 GB |
| Technology | GDDR5 SDRAM |
| Bus Width | 256-bit |
| Bandwidth | 160 GBps |
| OS Required | Linux, Microsoft Windows 7 / 10 |
| Power Consumption Operational | 75 Watt |
| Compliant Standards | UL, C-Tick, BSMI, FCC, RoHS, KCC, WEEE, DisplayPort 1.4, VCCL |
| Service & Support | Limited warranty - 3 years |
