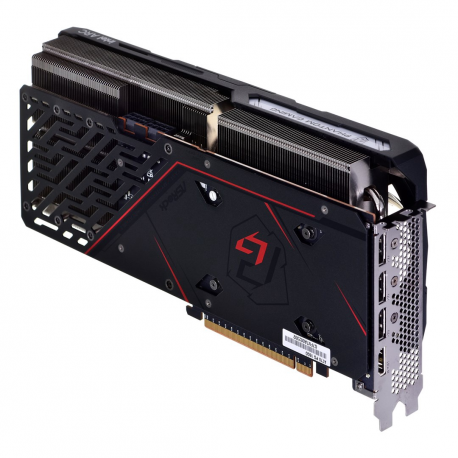

ASRock Phantom Gaming Intel Arc A770 16G OC - OC Edition - graphics card - Intel Arc A770 - 16 GB GDDR6 - PCIe 4.0 x16 - HDMI, 3 x DisplayPort
images are for illustrative purposes only
New
Article: 3206723 Intrastat: 84718000 SKU: A770 PG 16GO
Pricing and stock details are available to registered users only.
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | Intel Arc A770 |
| Core Clock | 2200 MHz |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Super Alloy Power technology, 0dB Technology, Polychrome SYNC, Video Streaming up to 8K, Phantom Gaming 3X Cooling System, Striped Axial Fan, 2.8-slot Fan Cooler, ultra-fit heatpipe, High Density Glass Fabric PCB, matte black PCB, Premium 100A Power Choke, AV1 hardware encode, Intel Xe Super Sampling (XeSS), Intel Deep Link Technology, Smart Power Stages (SPS), copper base, HDCP |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 17.5 Gbps |
| Bus Width | 256-bit |
| Required Power Supply | 700 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
| Compliant Standards | DisplayPort 2.0 |
| Width | 5.6 cm |
| Depth | 30.5 cm |
| Height | 13.1 cm |
| Weight | 1.146 kg |
