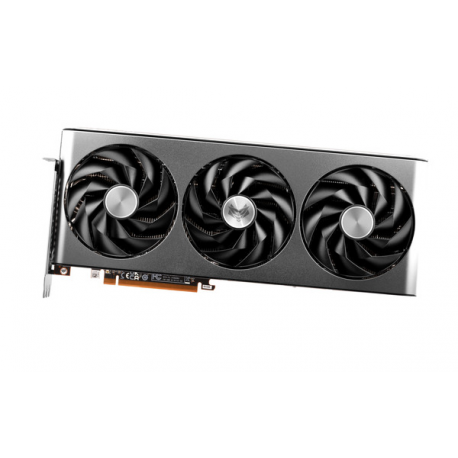

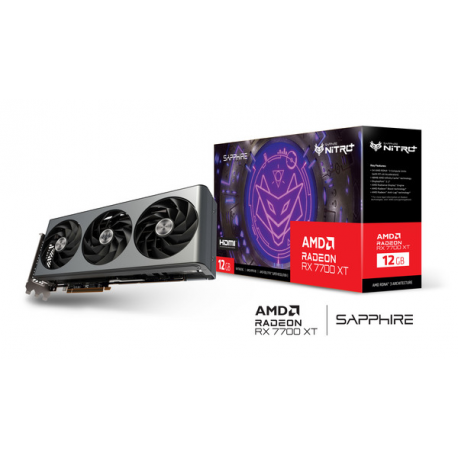

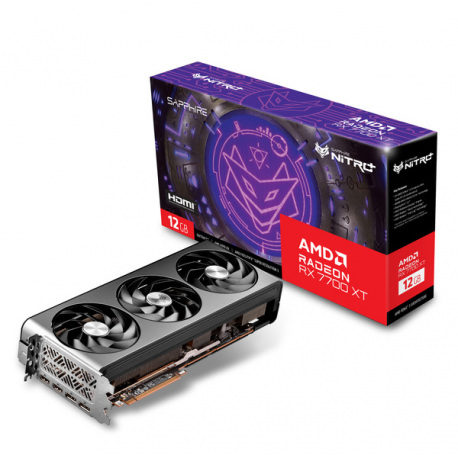

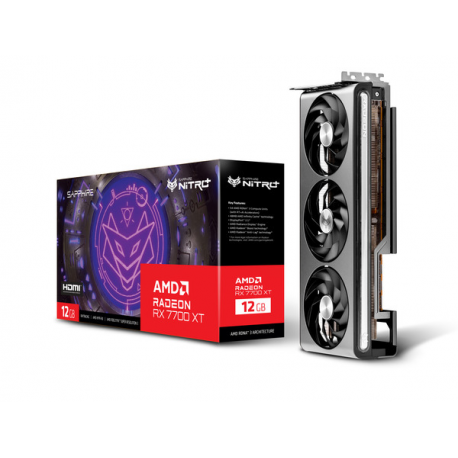

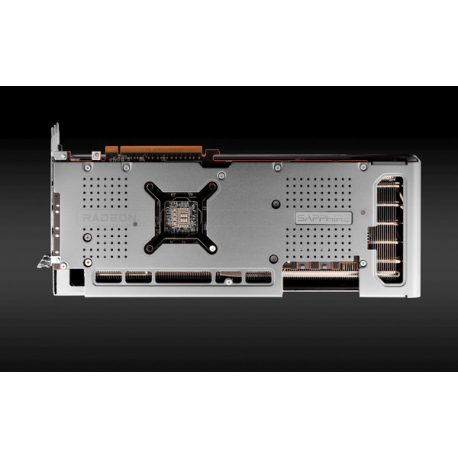

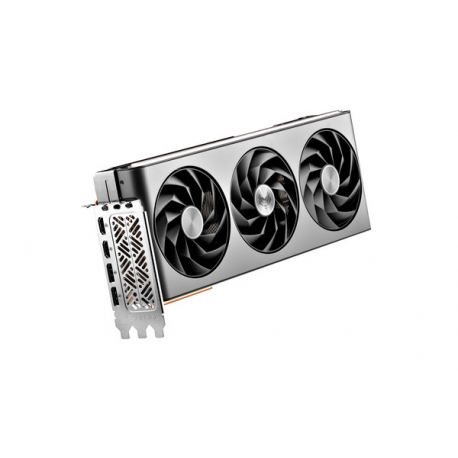

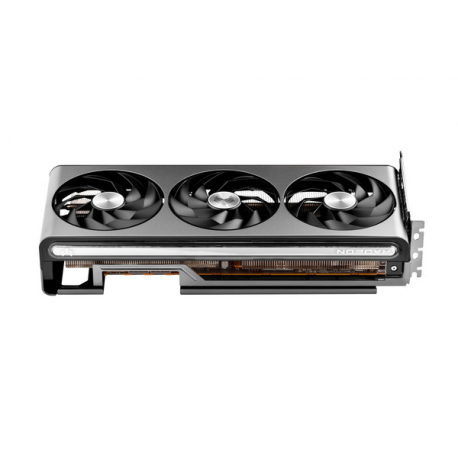

Sapphire NITRO+ Radeon RX 7700 XT - Graphics card - Radeon RX 7700 XT - 12 GB GDDR6 - PCIe 4.0 x16 - 2 x HDMI, 2 x DisplayPort
images are for illustrative purposes only
New
Article: 3211603 Intrastat: 84718000 SKU: 11335-02-20G
Pricing and stock details are available to registered users only.
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | AMD Radeon RX 7700 XT |
| Boost Clock | 2599 MHz |
| Stream Processors | 3456 |
| Process Technology | 5 nm |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 2 x HDMI ¦ 2 x DisplayPort |
| API Supported | Vulkan, DirectX 12 Ultimate |
| Features | Sapphire Tri-X Cooling Technology, Intelligent Fan Control (IFC), 3-slot Fan Cooler, FreeSync Technology, NITRO Fan Check, NITRO Glow RGB LED, fuse protection, Triple Fan Design, Precision Fan Control, TriXX Boost, Fan Quick Connect, TriXX Supported, AMD Infinity Cache, V-shape fin design, WAVE fin design, Dual ball Bearing Fans, metal backplate, AMD Link, Premium Digital Power Design, High TG Copper PCB, Angular Velocity Fan Blade, composite heatpipes, Radeon Super Resolution (RSR), AMD FidelityFX Super Resolution 2 (FSR), AMD Radiance Display Engine, AMD Smart Technologies, AMD Noise Suppression, AMD Privacy View, conductive polymer aluminium capacitors, Assistive system fan control, Microsoft DirectStorage, Dual UEFI BIOS, 54 AMD RDNA 3 compute units, 48 MB cache, aluminum alloy frame, dedicated VRM cooling |
| Size | 12 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 18 Gbps |
| Bus Width | 192-bit |
| OS Required | Linux, Windows 11, Windows 10 (64-bit) |
| Min RAM Size | 8 GB |
| Required Power Supply | 700 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
| Power Consumption Operational | 252 Watt |
| Included Accessories | Graphics card support bracket, ARGB extension cable |
| Software Included | Sapphire TriXX, AMD Radeon Software Adrenalin Edition |
| Compliant Standards | DisplayPort 2.1 |
| Width | 6.157 cm |
| Depth | 32 cm |
| Height | 13.485 cm |
