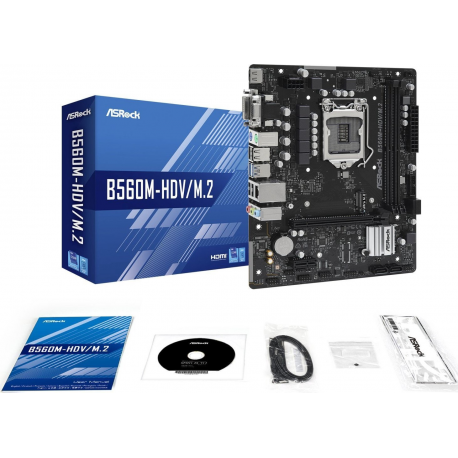

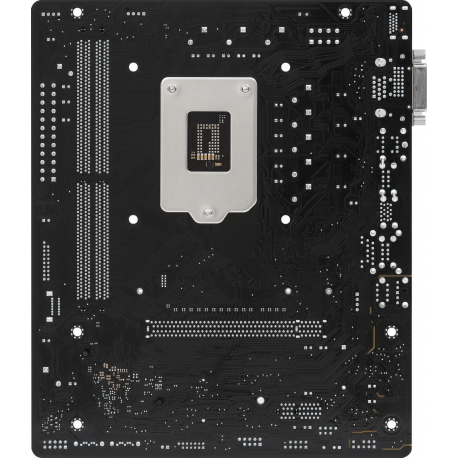

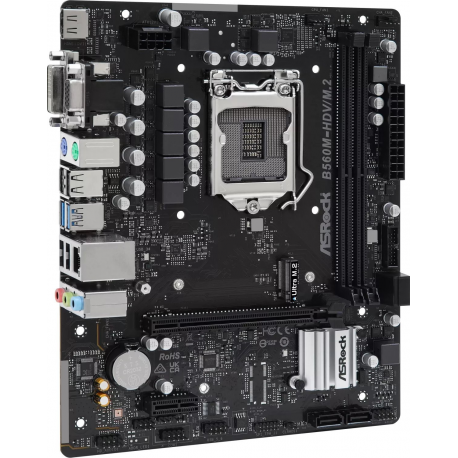

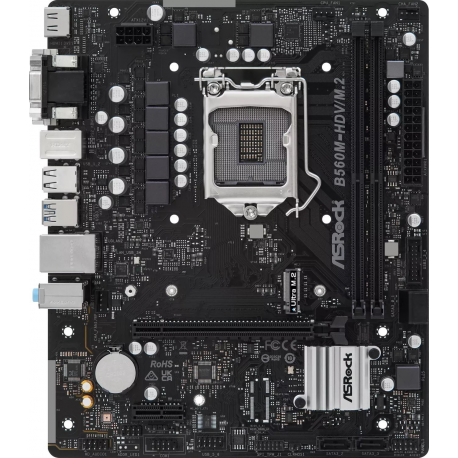

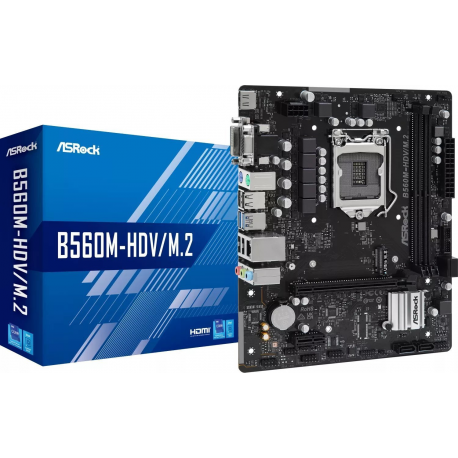

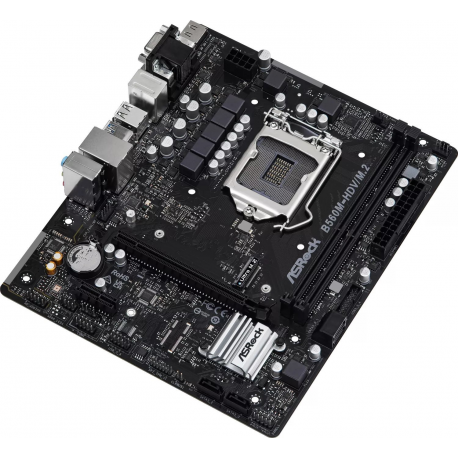

ASRock B560M-HDV - Motherboard - micro ATX - LGA1200 Socket - B560 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 3177993 Intrastat: 84717020 SKU: B560M-HDV/M.2
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 4600 MHz (O.C.), 5000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID Features | Intel Rapid Storage Technology |

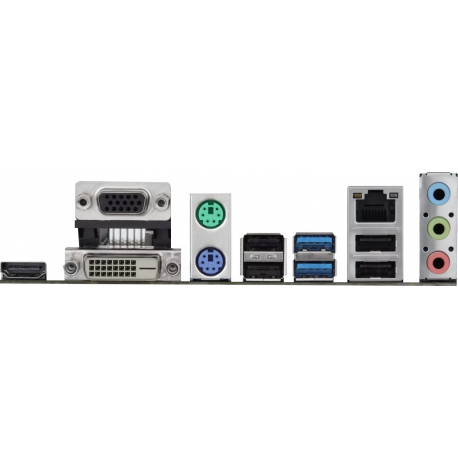

| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 1 x VGA |
| Internal Interfaces | 1 x serial - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium 50A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Hyper M.2 |
| Included Accessories | I/O back plate, 2 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 19.8 cm |
