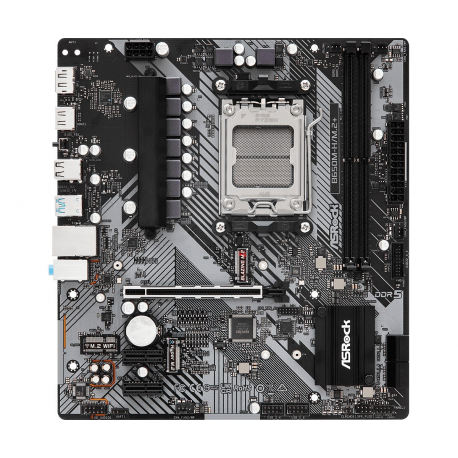

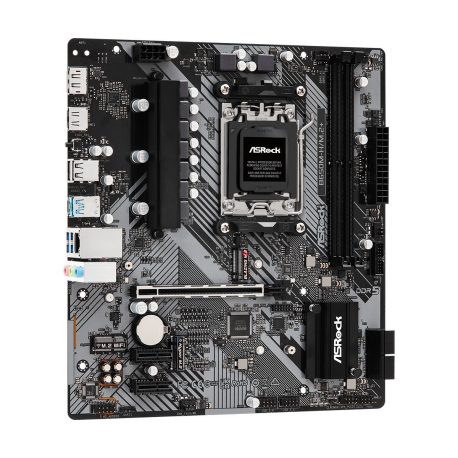

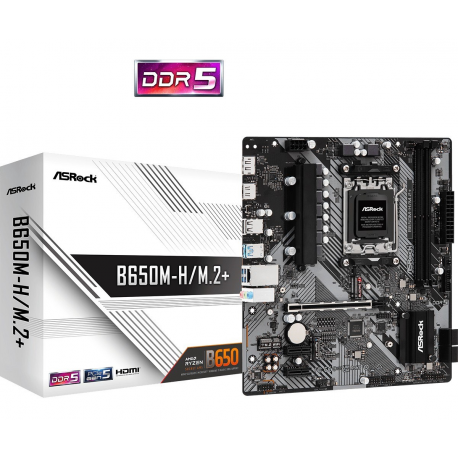

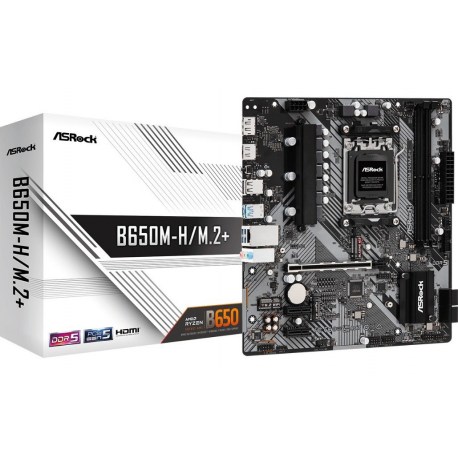

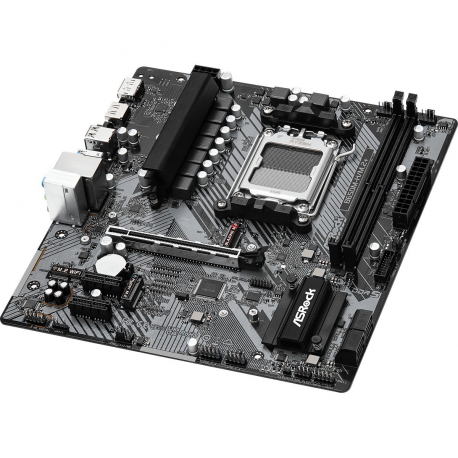

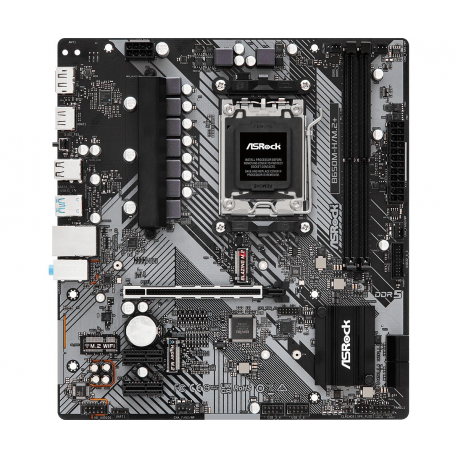

ASRock B650M-H / M.2+ - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 3210327 Intrastat: 84717020 SKU: B650M-H/M.2+
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 6400 MHz (O.C.) |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |

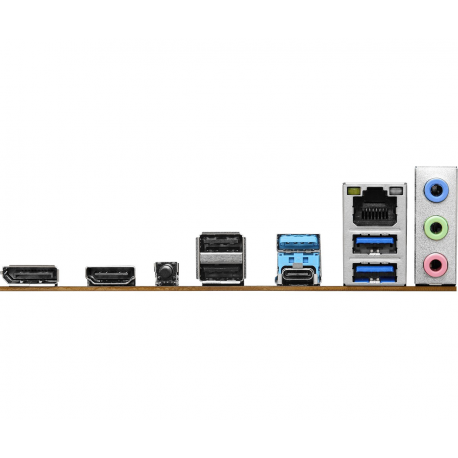

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, ASRock Full HD UEFI, 6 Layer PCB, Dr.MOS MOSFET, Water Pump Header, ASRock POST Status Checker (PSC), 6+1+1 Phase Power Design, reinforced PCIe slots, ASRock Auto Driver Installer, BIOS FlashBack button, flash BIOS button |
| Included Accessories | 3 x M.2 screws, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | FCC, RoHS, EuP Ready, ErP Ready, UKCA |
| Width | 22.6 cm |
| Depth | 24.4 cm |
