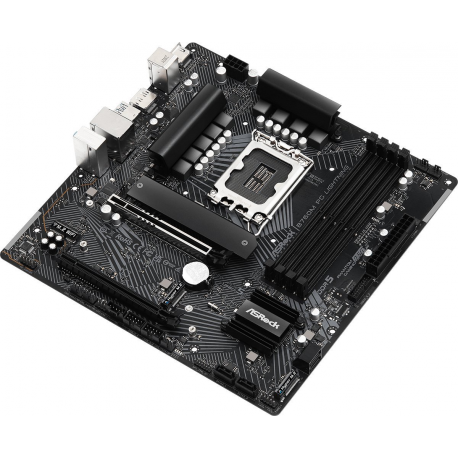

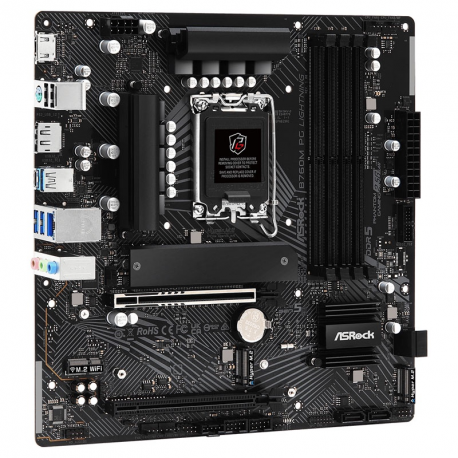

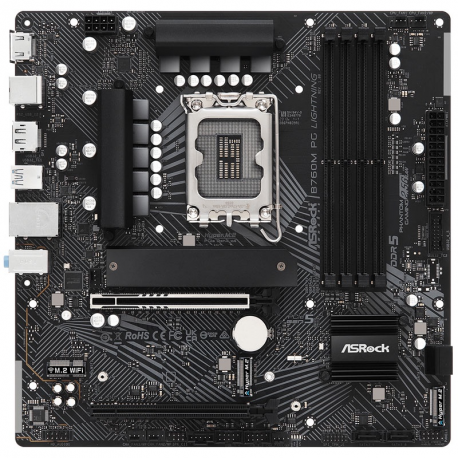

ASRock B760M PG LIGHTNING WIFI - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 3320604 Intrastat: 84717020 SKU: B760M PG LIGHTNING WIFI
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 3600 MHz, 4400 MHz, 7200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 |

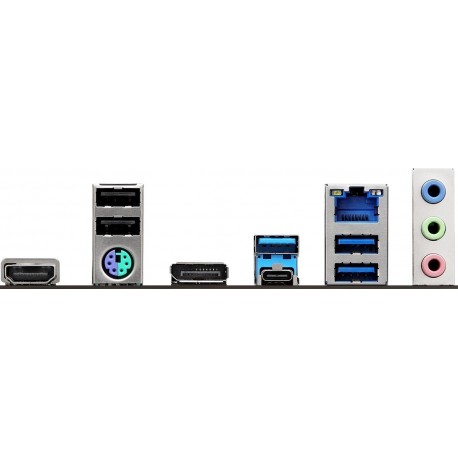

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 1 x SPI - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock EZ Mode, ASRock Steel Slots, M.2 heatsink, Water Pump Header, Intel Turbo Boost Max Technology 3.0, Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, 7+1+1 Phase Power Design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB) |
| Included Accessories | 3 x M.2 screws, IO shield, standoff for M.2 socket, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, Wi-Fi module plastic cover |
| Cables Included | 2 x Serial ATA cable ¦ 2 x antenna cable |
| Software Included | ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software |
| Compliant Standards | FCC Part 15, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |

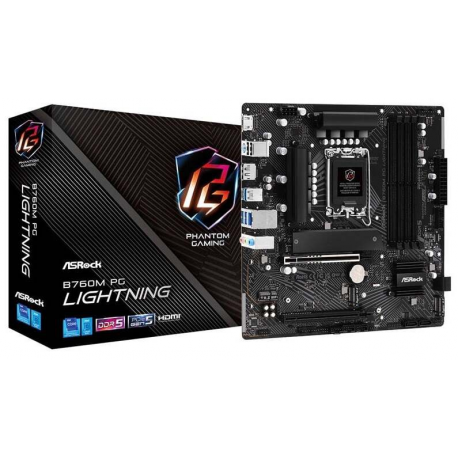

| Package Details | Box |
