ASRock H510M-ITX/ac - Motherboard - mini ITX - LGA1200 Socket - H510 - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

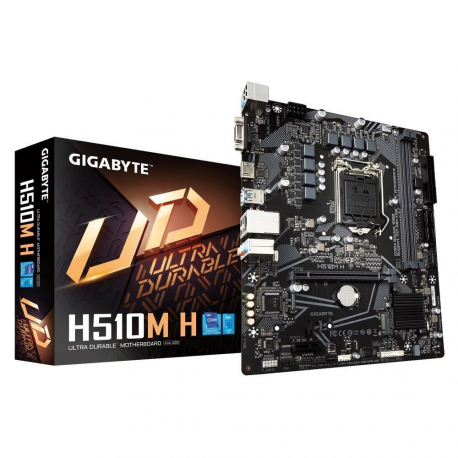

images are for illustrative purposes only
New
Article: 1769407 Intrastat: 84717020 SKU: H510M H
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel H510 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x PS/2 keyboard / mouse 2 x USB 2.0 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header 1 x audio - header 2 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, Dr.MOS MOSFET, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Premium 60A Power Choke, Intel Turbo Boost Max Technology 3.0 |
| Included Accessories | I/O back plate, 1 x M.2 screw, 2 x ASRock WiFi 2.4/5GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 17 cm |
| Depth | 17 cm |
