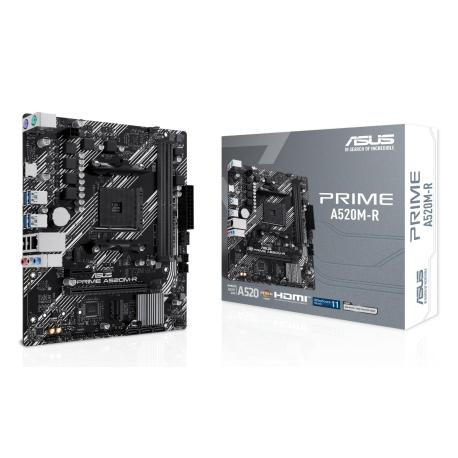

ASUS PRIME A520M-R - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
New
Article: 4205655 Intrastat: 84717020 SKU: PRIMEA520M-R
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4600 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, CrashFree BIOS 3, DIY Friendly Design |
| Included Accessories | IO shield, 1 x M.2 anchor |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Armoury Crate, ASUS AI Suite III, ASUS TurboV EVO Utility, ASUS Fan Xpert, ASUS CPU-Z, Norton AntiVirus (60 days trial), WinRAR (40 days trial) |
| Width | 23.6 cm |
| Depth | 19.3 cm |
