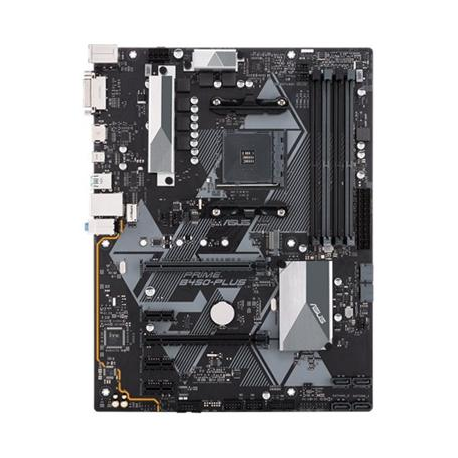

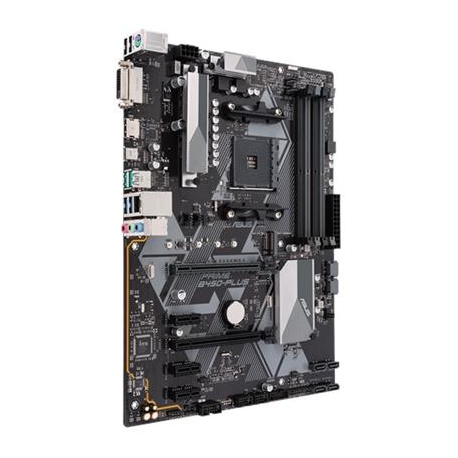

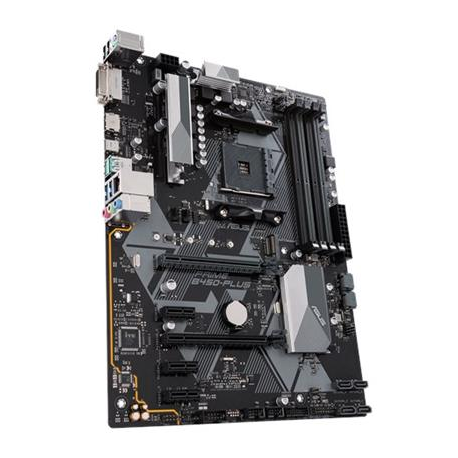

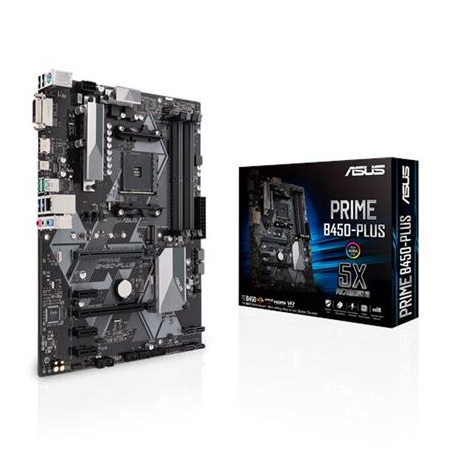

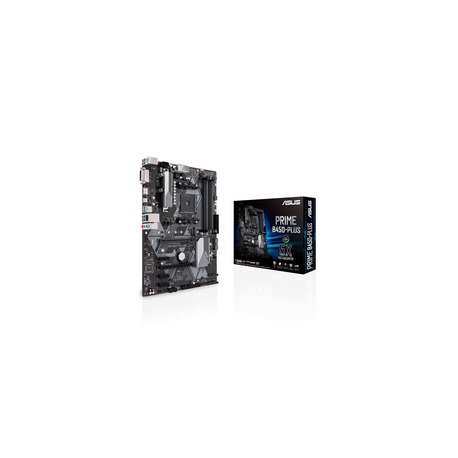

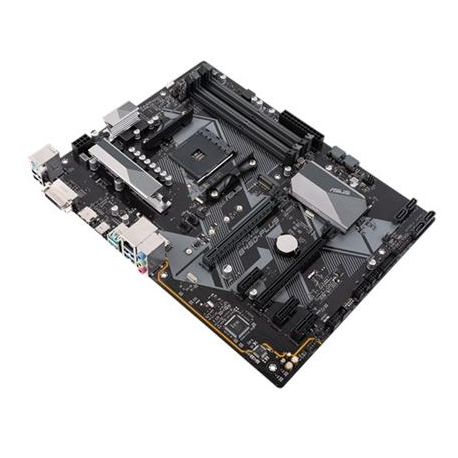

ASUS PRIME B450-PLUS - Motherboard - ATX - Socket AM4 - AMD B450 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 1541947 Intrastat: 84717020 SKU: 90MB0YN0-M0EAY0
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887-VD2 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

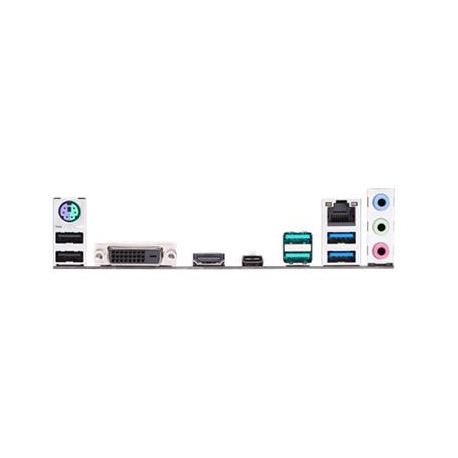

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen1 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | C.P.R. (CPU Parameter Recall), ASUS Q-Design, ESD Guards, Q-DIMM, Q-Slot, CrashFree BIOS 3, 6 Phase Power Design, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, AMD StoreMI technology, NVM Express RAID support, ASUS Aura Sync |

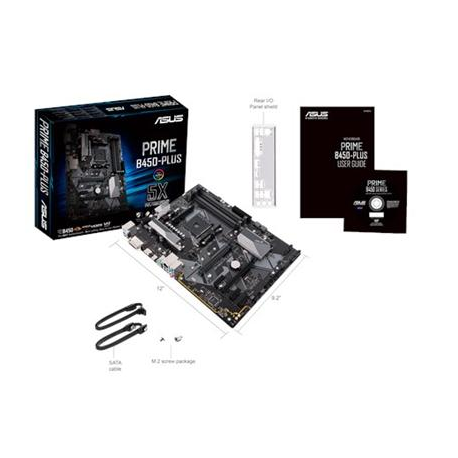

| Included Accessories | 1 x M.2 screw, I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3, File Transfer |
| Width | 30.5 cm |
| Depth | 23.4 cm |
| Service & Support | Limited warranty - 3 years |
