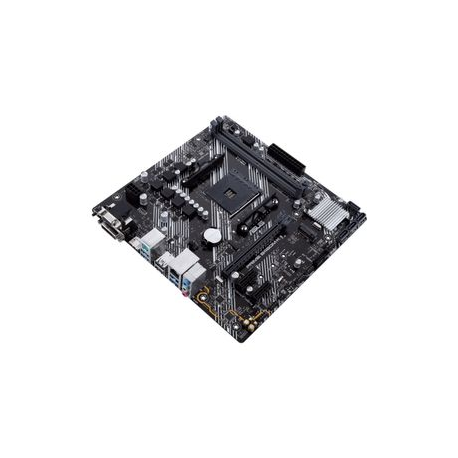

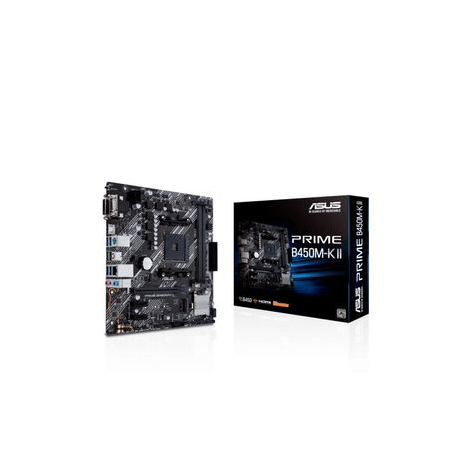

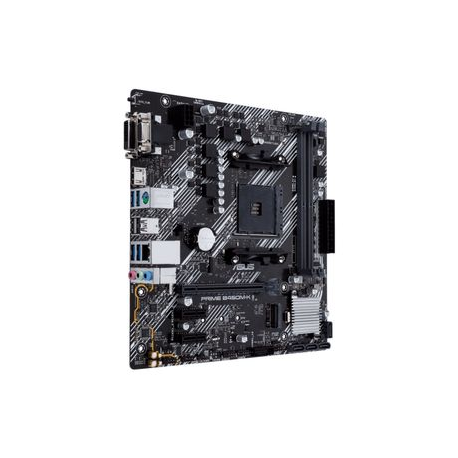

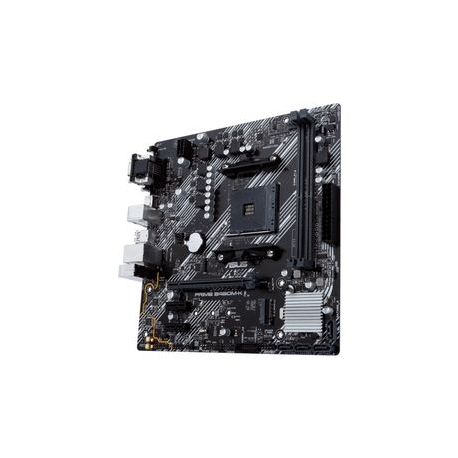

ASUS PRIME B450M-K II - Motherboard - micro ATX - Socket AM4 - AMD B450 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 1749178 Intrastat: 84717020 SKU: 90MB1600-M0EAY0
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3533 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ Serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Armoury Crate |
| Included Accessories | I/O back cover, 1 x M.2 anchor |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
| Width | 22.6 cm |
| Depth | 22.1 cm |
