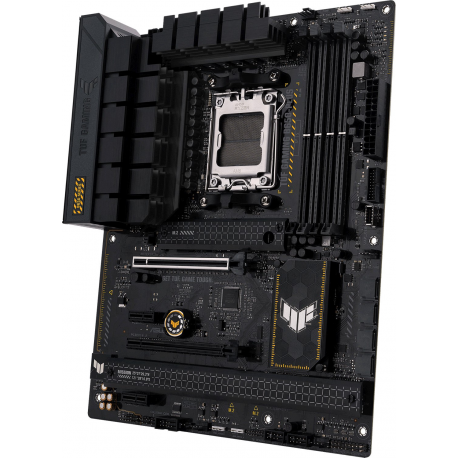

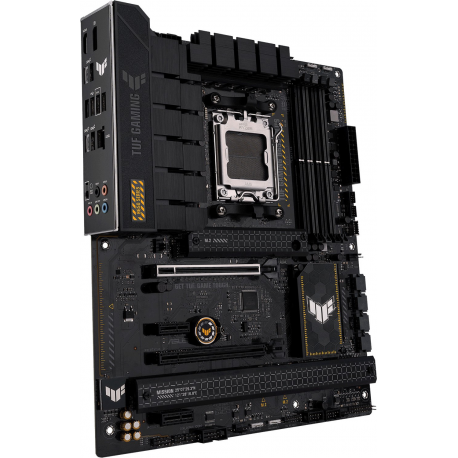

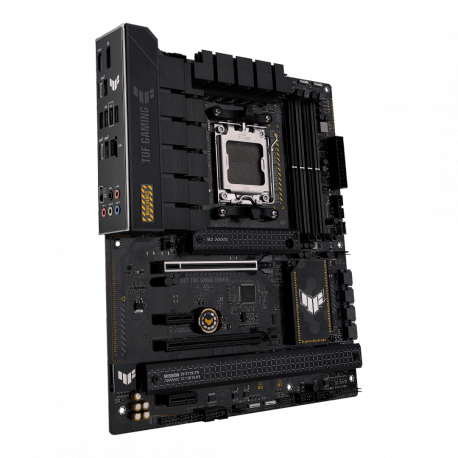

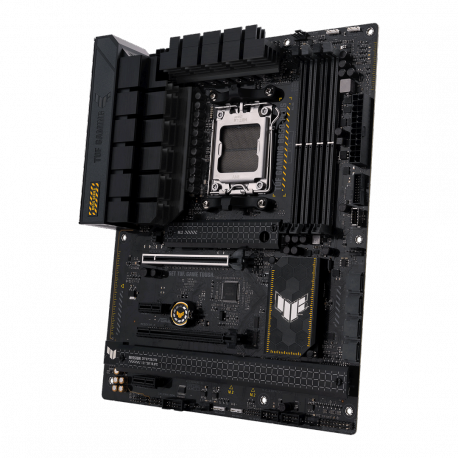

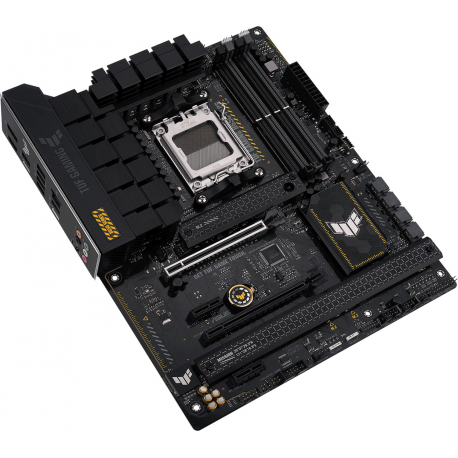

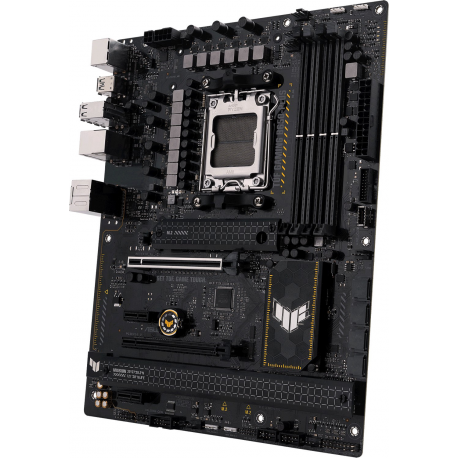

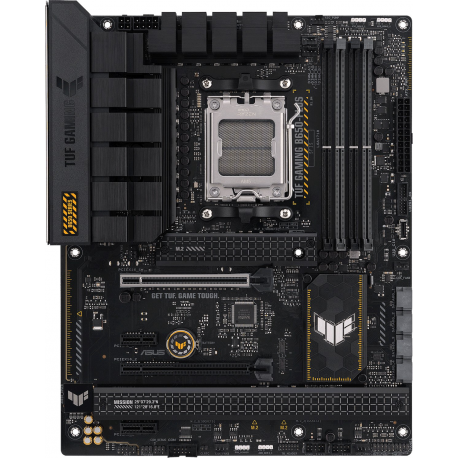

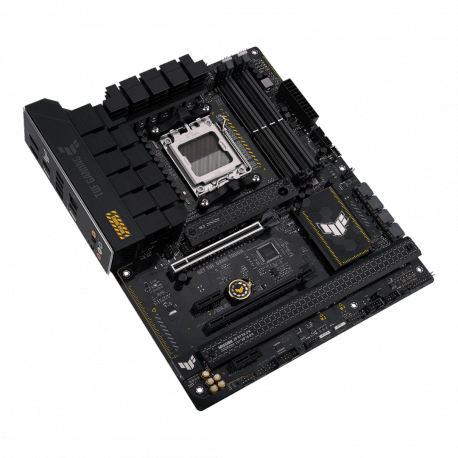

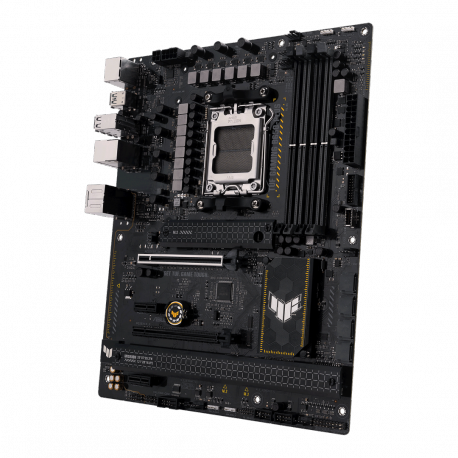

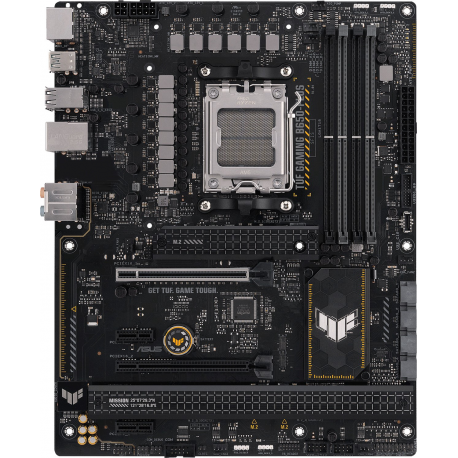

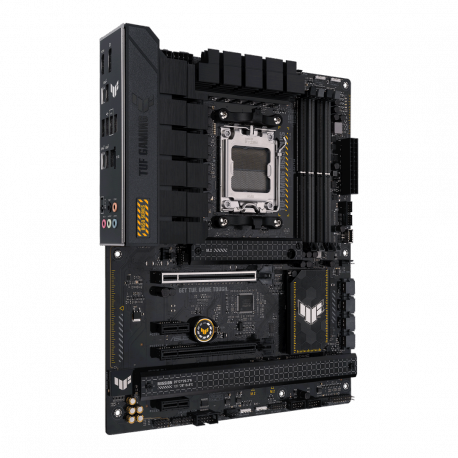

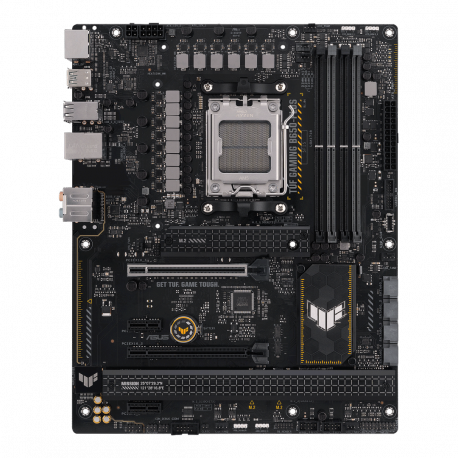

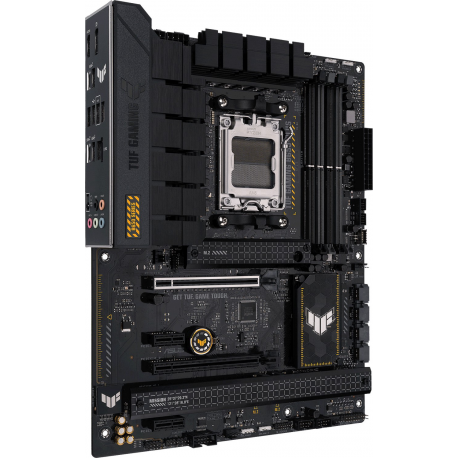

ASUS TUF Gaming B650-Plus - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 3033540 Intrastat: 84717020 SKU: 90MB1BY0-M0EAY0
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode (auto turn-off if 3rd M.2 is occupied)) 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

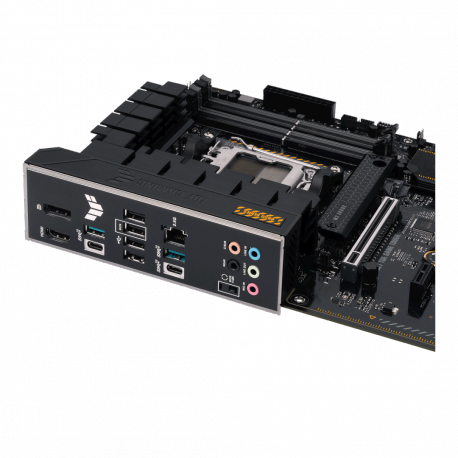

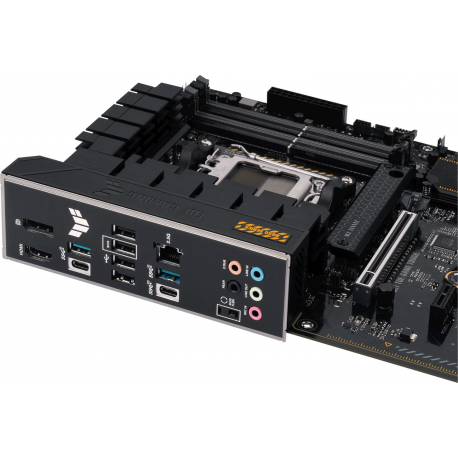

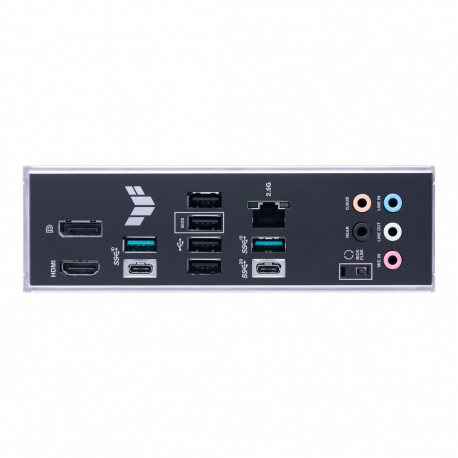

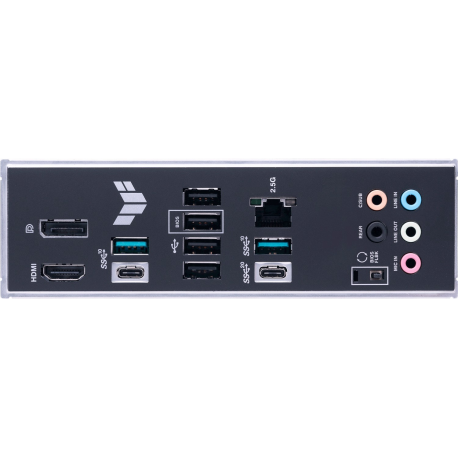

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, Enlarged Chipset Heatsink, 60A Power Stage |
| Included Accessories | 2 x M.2 rubber package, M.2 screw package, TUF certification card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4 |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
