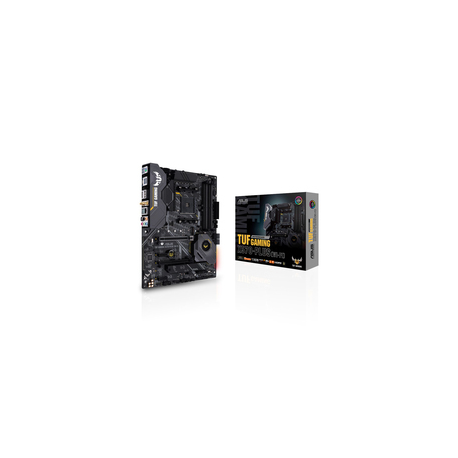

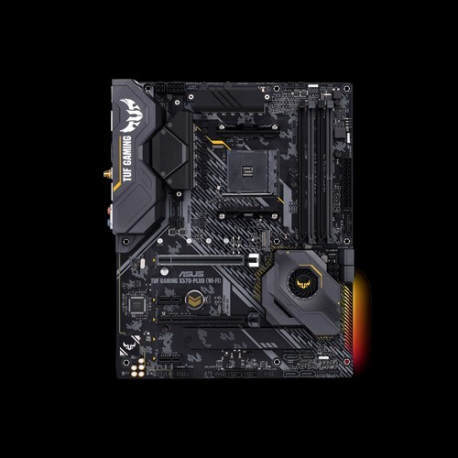

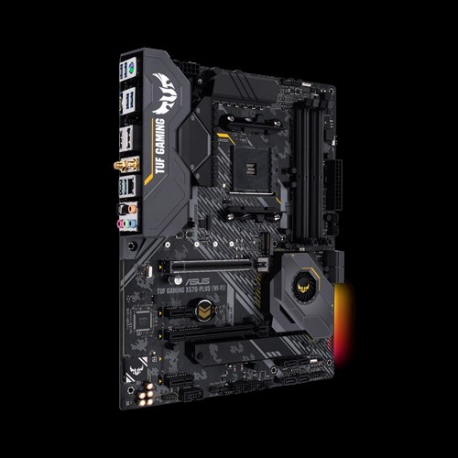

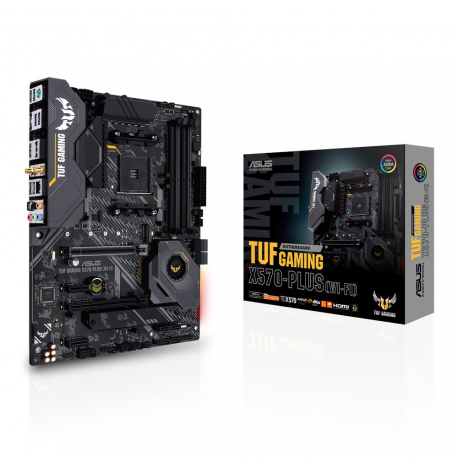

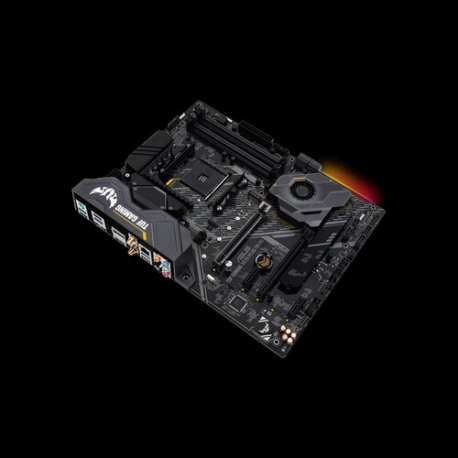

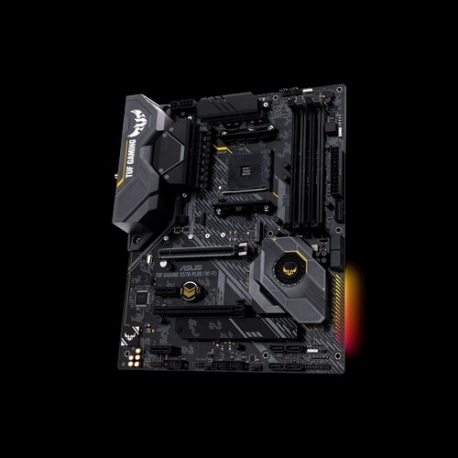

ASUS TUF GAMING X570-PLUS (WI-FI) - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Bluetooth, Gigabit LAN, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
New
Article: 1663448 Intrastat: 84717020 SKU: 90MB1170-M0EAY0
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 4400 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1200A |
| Compliant Standards | High Definition Audio, DTS Custom |
| Network Controller | Realtek RTL8200A / Intel Wireless-AC 9260 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x16/x8 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |

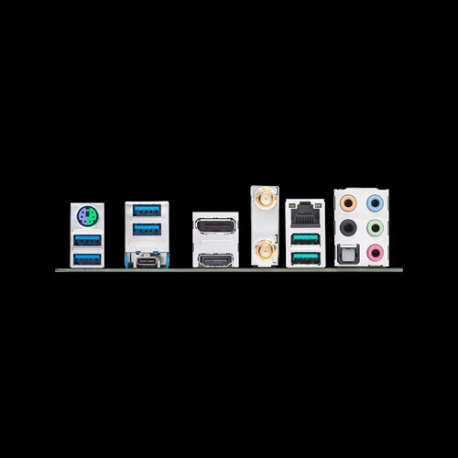

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, 6 Layer PCB, TUF LANGuard, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, M.2 heatsink, ASUS ProCool, ASUS TUF Protection, ASUS Aura Sync, 12+2 DrMOS power stages |

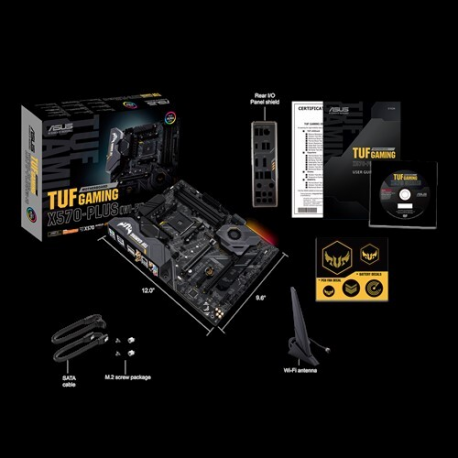

| Included Accessories | I/O back plate, ASUS 2T2R Wi-Fi moving aerials, 1 x M.2 screw, TUF stickers |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III |
| Compliant Standards | Plug and Play |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
