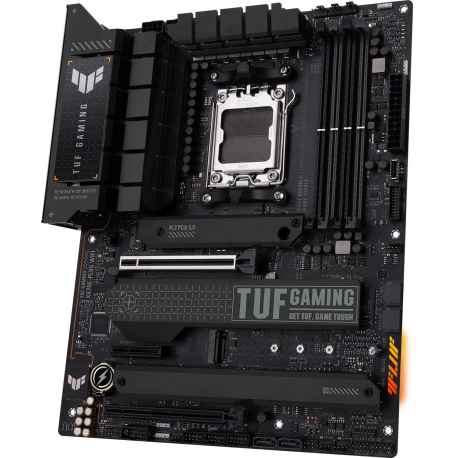

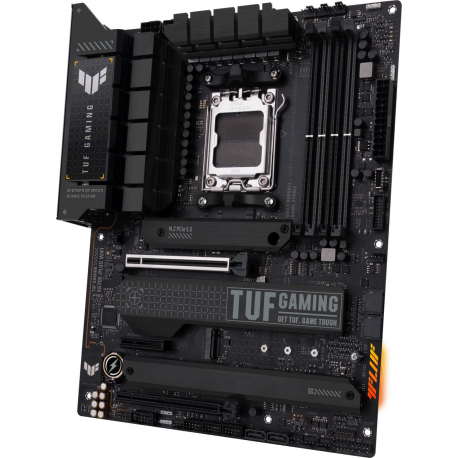

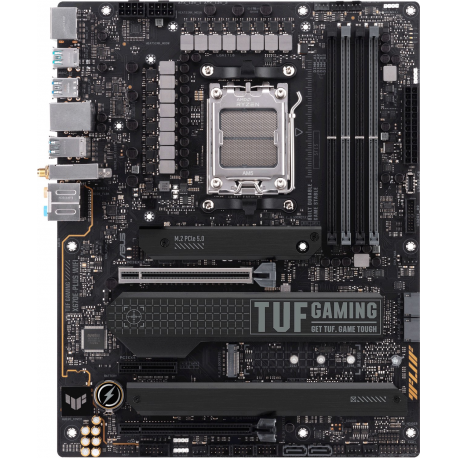

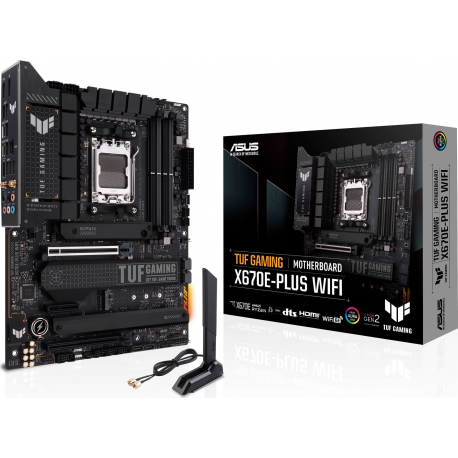

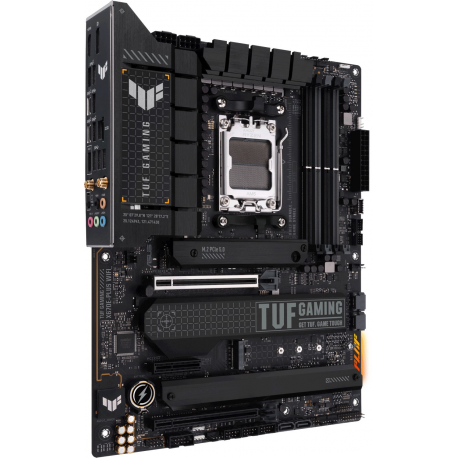

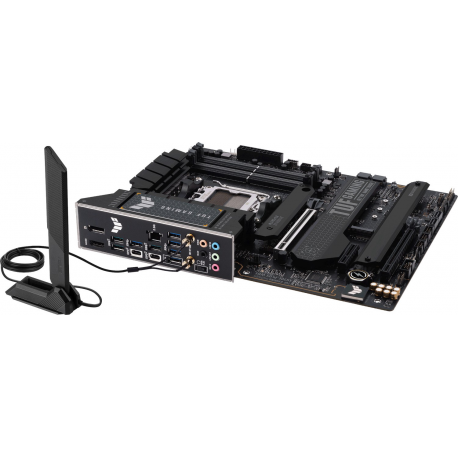

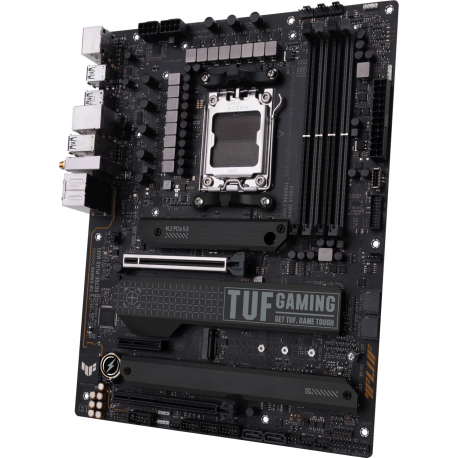

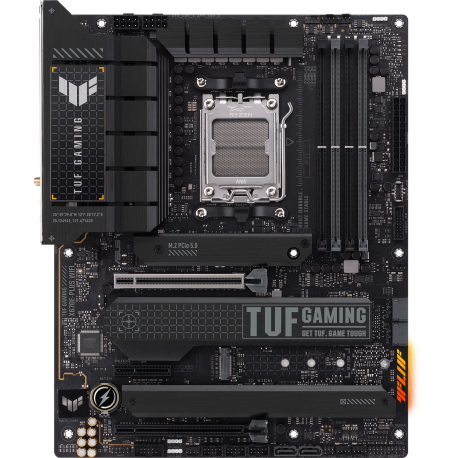

ASUS TUF GAMING X670E-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS TUF GAMING X670E-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1BK0-M0EAY0
Article
•3012868
Intrastat
•84717020
Shipping weight
•2.029 kg
Product Type
Motherboard - ATX
Chipset Type
AMD X670
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALCS1220A
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x4 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces

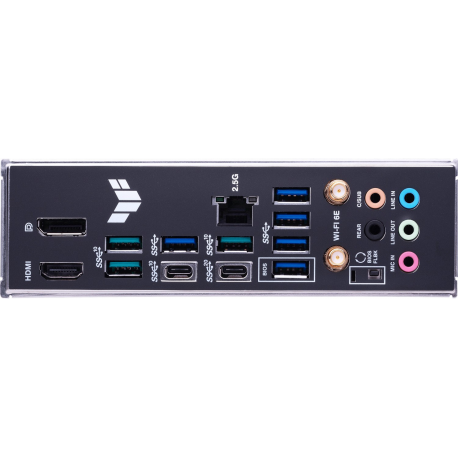

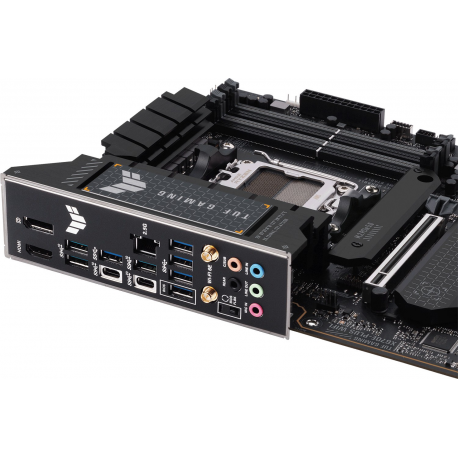

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 5 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial
Internal Interfaces
6 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, 8 Layer PCB, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, TUF Gaming Audio Cover, ASUS SafeSlot Core+, FlexKey button, ASUS ProCool II, 70A Power Stage, 14+2 Phase Power Design, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED
Included Accessories
ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, 2 x M.2 screw package, TUF certification card
Cables Included
2 x Serial ATA cable
Software Included
ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), MyAsus, Armoury Crate, ASUS Fan Xpert 4
Compliant Standards
VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Width
30.5 cm
Depth
24.4 cm
