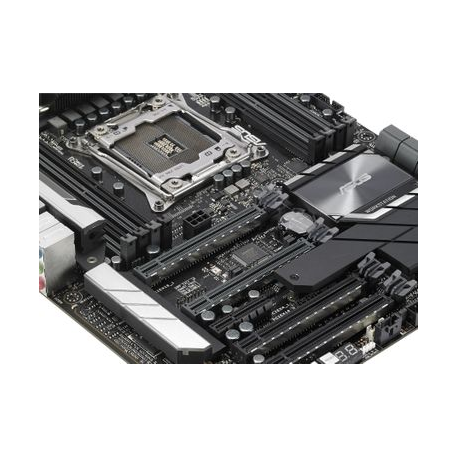

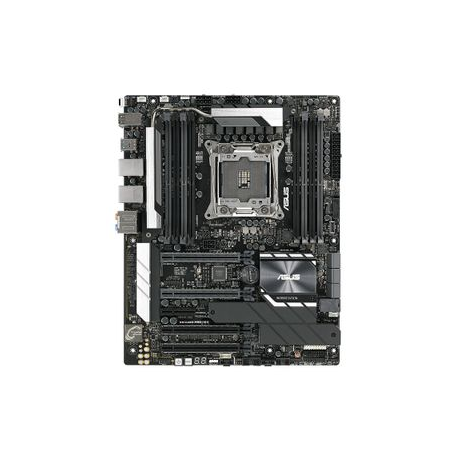

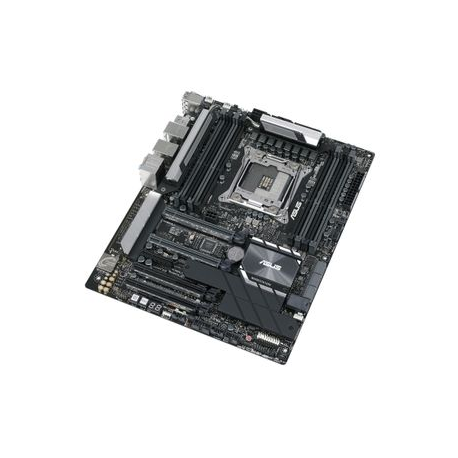

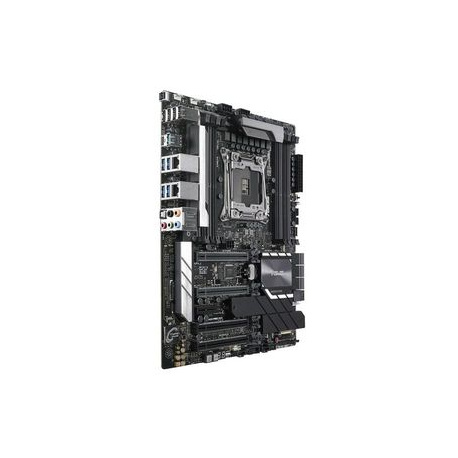

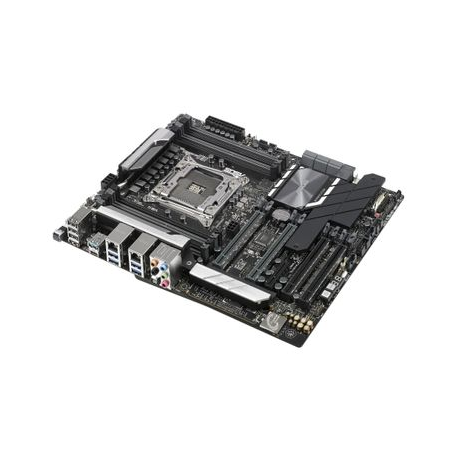

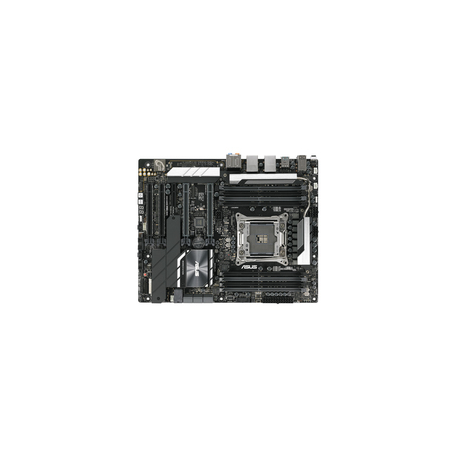

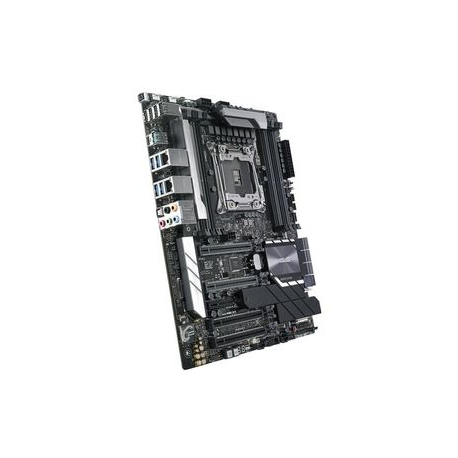

ASUS WS C422 Pro / SE - Motherboard - ATX - LGA2066 Socket - C422 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x Gigabit LAN - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 1526919 Intrastat: 84717020 SKU: 90SW0080-M0EAY0
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C422 |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon |
| Max Size | 512 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced |
| Features | Quad channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |

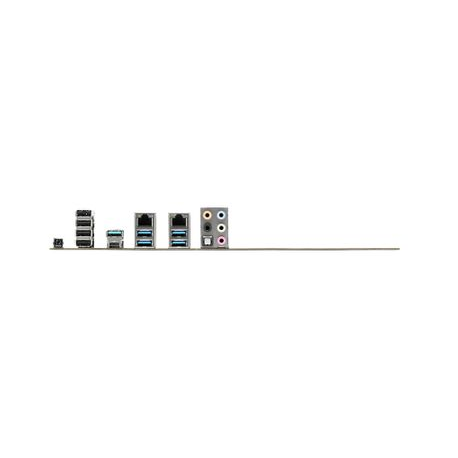

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x USB 3.1 Gen 2 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| BIOS Features | Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, ASUS EZ Flash 3 |
| Hardware Features | Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Intel VROC support, M.2 heatsink, ASMB9-iKVM |
| Software Included | ASUS AI Charger+, ASUS Control Center |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
