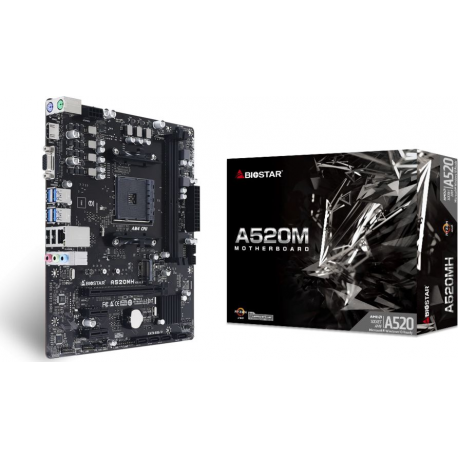

Biostar A520MH - 6.0 - motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 1747286 Intrastat: 84717020 SKU: A520MH
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen 3 |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 |

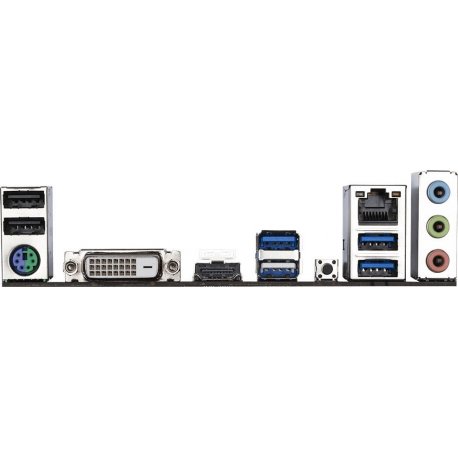

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x VGA ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Features | UEFI BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Hardware Features | BIOSTAR [FLASHER], HDCP compliant, Digital PWM, 7 Phase Power Design, 4K resolution support, overcurrent protection, overvoltage protection, BIOSTAR Hi-Fi Ground, overheat protection, Super LAN Surge Protection, Moistureproof PCB, Super Durable Solid Caps, Super Durable Ferrite Choke, BIOSTAR Solid Capacitor, A.I FAN |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | BullGuard |
| Width | 24.4 cm |
| Depth | 20.8 cm |
