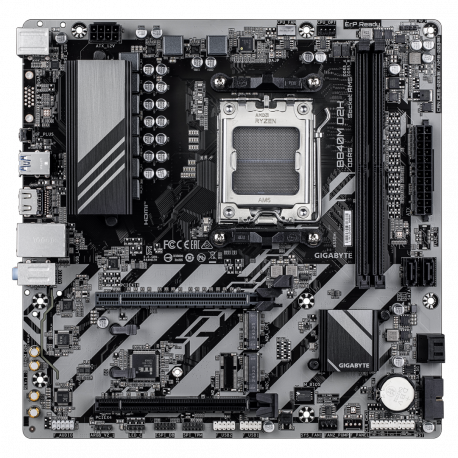

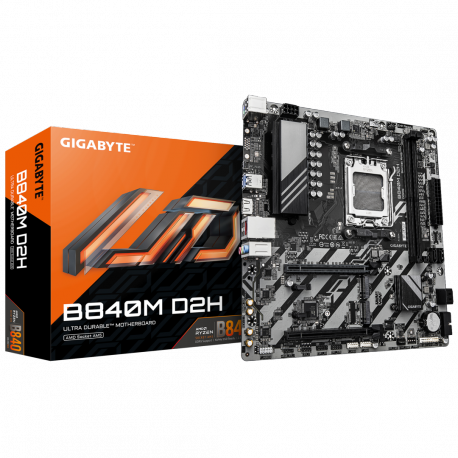

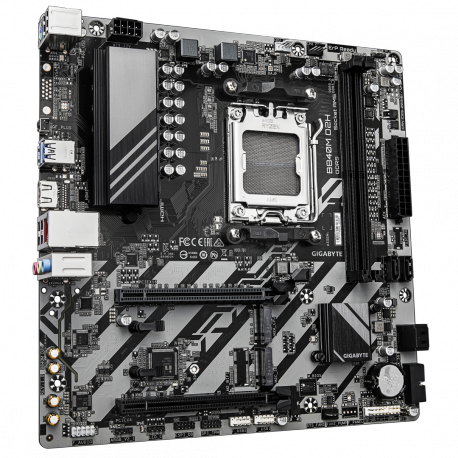

Gigabyte B840M D2H - Motherboard - micro ATX - Socket AM5 - AMD B840 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 4243132 Intrastat: 84717020 SKU: B840M D2H
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B840 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe x16 1 x M.2 socket (2280/2580 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 3.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |

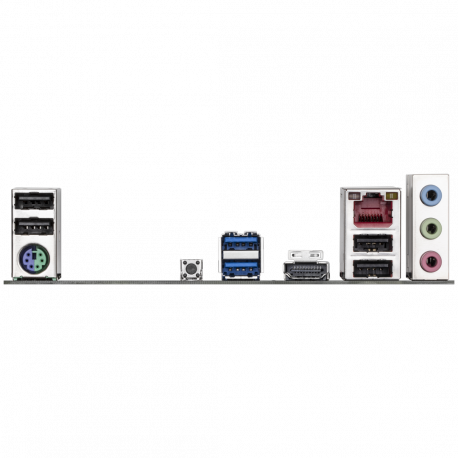

| Interfaces | 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 1 x PS/2 keyboard / mouse 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan control, water cooling flow rate, fan fail warning, fan speed detection |
| Hardware Features | Chipset heatsink, VRM heatsink design, GIGABYTE Smart Fan 6, RGB FUSION, Q-Flash Plus button, DIY Friendly Design, PCIe EZ Latch, EZ Debug LED |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Width | 24.4 cm |
| Depth | 24.4 cm |
