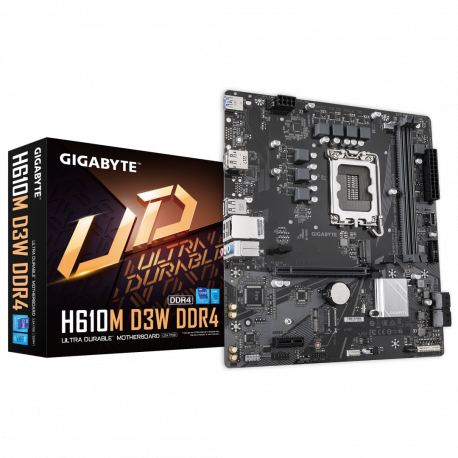

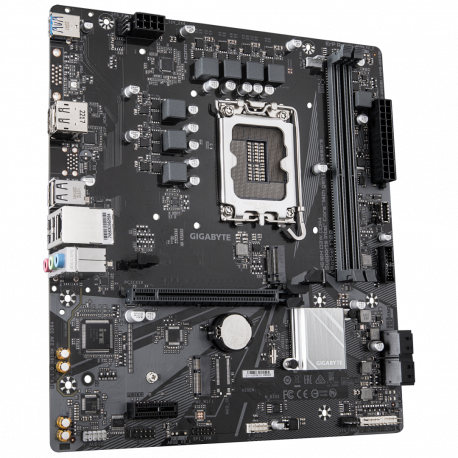

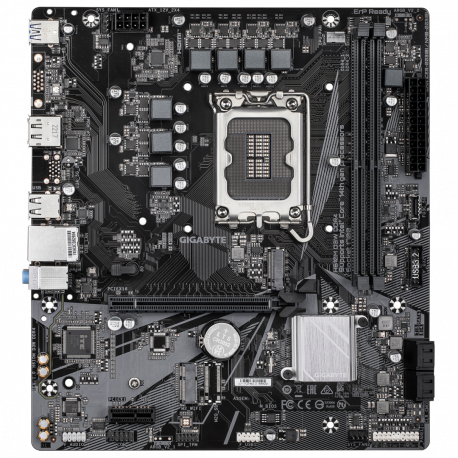

Gigabyte H610M D3W DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
images are for illustrative purposes only
New
Article: 4132217 Intrastat: 84717020 SKU: H610M D3W DDR4
Pricing and stock details are available to registered users only.
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 Express |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 1066 MHz, 1200 MHz, 1333 MHz, 1466 MHz, 1500 MHz, 1600 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |

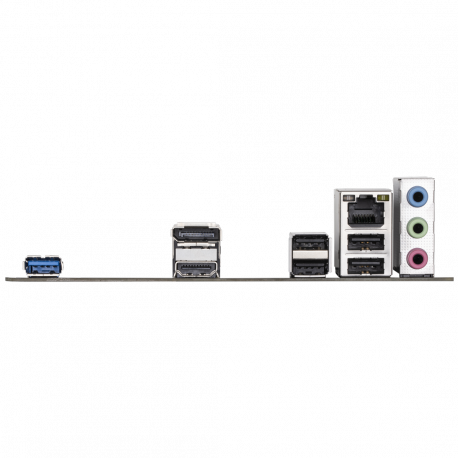

| Interfaces | 1 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x HDMI ¦ 1 x DisplayPort |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | 5+1+1 Phase Power Design, solid capacitors, Smart 6, Anti-Sulfur Design, Solid Pin Power Connectors, Ultra Durable |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Width | 24.4 cm |
| Depth | 22 cm |
