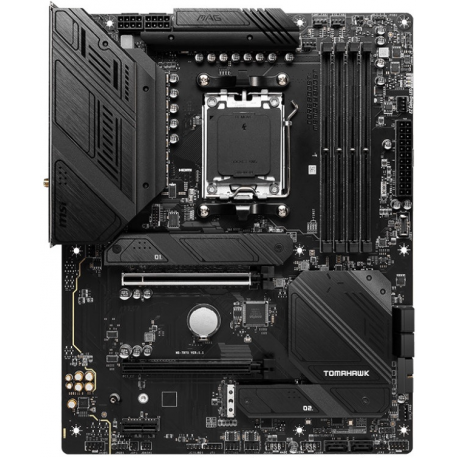

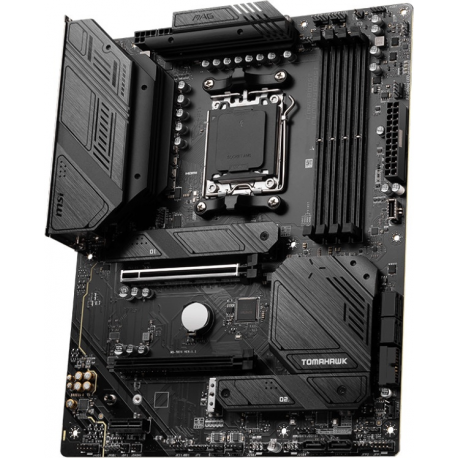

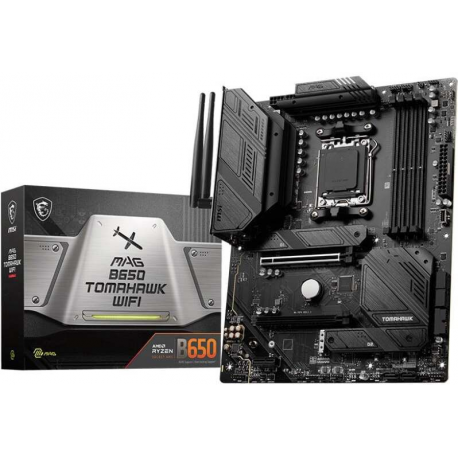

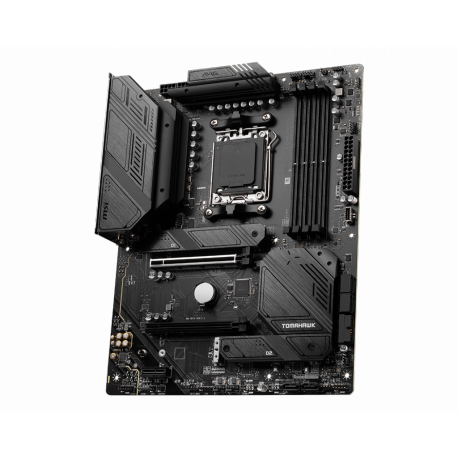

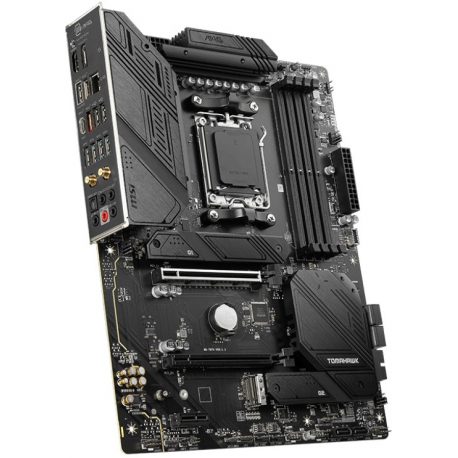

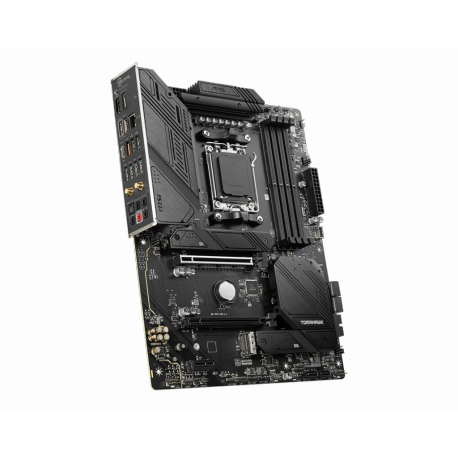

MSI MAG B650 TOMAHAWK WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
MSI MAG B650 TOMAHAWK WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•MSI
Reference
•MAG B650 TOMAHAWK WIFI
Article
•3042170
Intrastat
•84717020
Product Type
Motherboard - ATX
Chipset Type
AMD B650 / Nuvoton NCT6687D-R
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125B
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (PCIe 4.0 x4 mode)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1

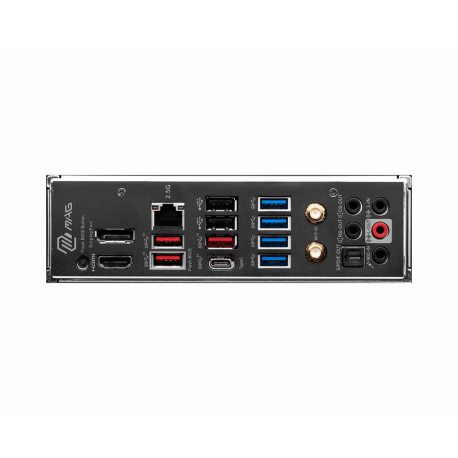

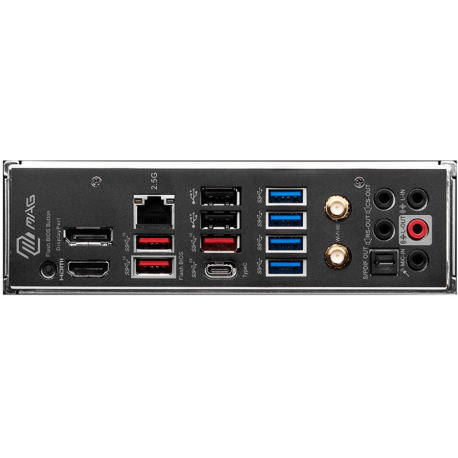

Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
Multilingual BIOS, UEFI BIOS, ACPI 6.4 support, SMBIOS 3.4 support
Hardware Features
Digital PWM, 4K resolution support, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, overvoltage protection, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, MSI Audio Boost 5, Windows 11 compatible, 14+2+1 Phase Power Design, MSI Memory Boost, flash BIOS button
Included Accessories
Wi-Fi aerial, cable stickers, 2 x EZ M.2 clips
Cables Included
1 x Serial ATA cable
Compliant Standards
ErP 2009/125/EC, EMC 2014/30/EU, Directive 2014/35/EU, DisplayPort 1.4, RED 2014/53/EU, ROHS Directive 2011/65/EU
Width
24.384 cm
Depth
30.48 cm
