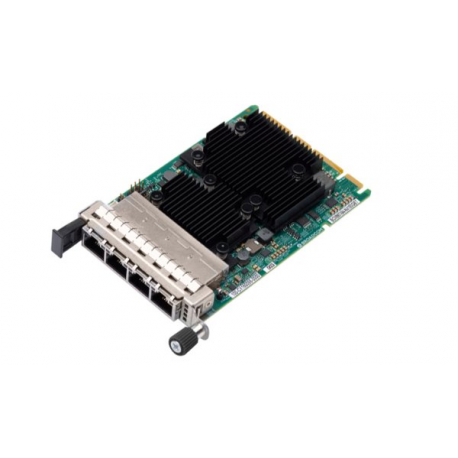

Lenovo ThinkSystem Broadcom 57454 - Network adapter - OCP 3.0 - 10Gb Ethernet x 4 - for ThinkAgile HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node
Lenovo ThinkSystem Broadcom 57454 - Network adapter - OCP 3.0 - 10Gb Ethernet x 4 - for ThinkAgile HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node
Manufacturer
•LENOVO
Reference
•4XC7A08240
Article
•2506220
Intrastat
•85176990
Device Type
Network adapter
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Ports
10Gb Ethernet x 4
Connectivity Technology
Wired
Cabling Type
Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Capacity
Jumbo frame size: 9600
Network / Transport Protocol
TCP/IP
Features
Wake on LAN (WOL), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accelerated Receive Flow Steering (RFS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Function Level Reset (FLR), Software Defined Networking (SDN), VLAN Tagging, Network Function Virtualization (NFV), TruFlow, Enhanced transmission selection (ETS), SMBus 2.0, flow acceleration
Compliant Standards
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Processor
1 x Broadcom BCM57454
Interfaces
4 x 10GBase-T - RJ-45
Included Accessories
Low-profile bracket
Compliant Standards
BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Depth
11.5 cm
Height
7.6 cm
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)
Designed For
Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32
