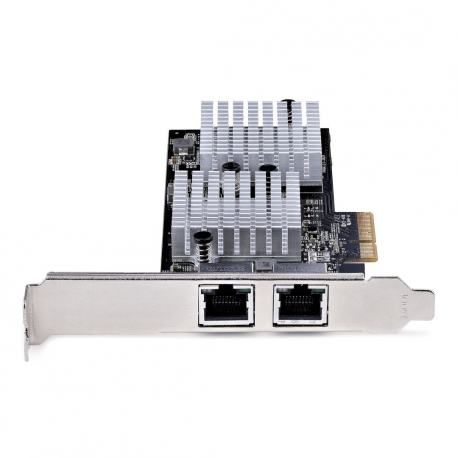

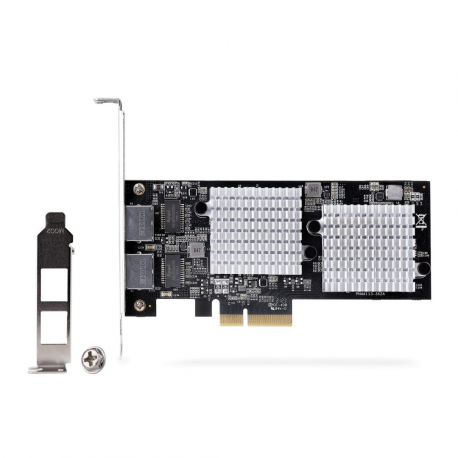

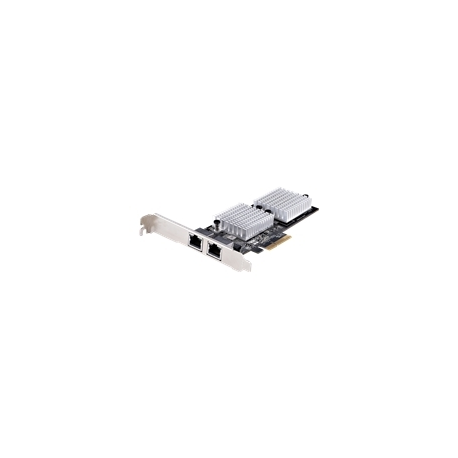

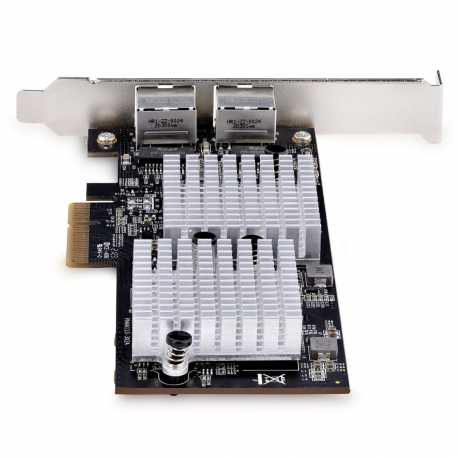

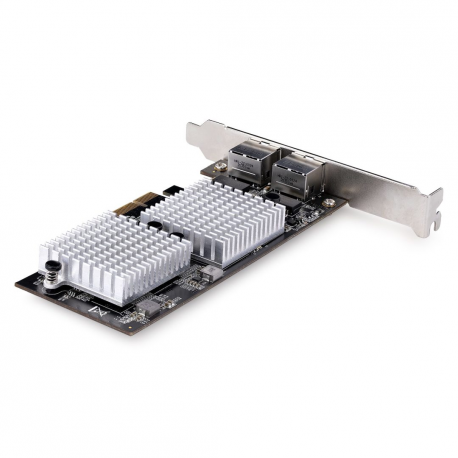

StarTech.com 2-Port 10Gbps PCIe Network Adapter Card, Network Card for PCs/Servers, Full-Height/Low-Profile PCIe Ethernet Card w/Jumbo Frames, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNDP2) - Network adapter - PCIe 3.0 x4 low profile - 10 Gigabit Ethernet x 2 - black
images are for illustrative purposes only
New
Article: 3033272 Intrastat: 85176990 SKU: ST10GSPEXNDP2
Pricing and stock details are available to registered users only.
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Ports | 10 Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, NBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Jumbo frame size: 16000 |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Status Indicators | Link/activity |
| Features | Full duplex capability, wake on LAN (WOL), PXE support, Precision Time Protocol (PTP), secure boot, Energy-Efficient Ethernet (EEE), VLAN Tagging, Audio Video Bridging (AVB), promiscuous mode, Automatic Media-Dependent Interface Crossover (MDIX), PXE boot |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE P802.3az |
| Processor | 1 x Marvell AQC113CS |
| Interfaces | 2 x 10M/100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | FCC, RCM |
| Colour | Black |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.10.x or later LTS versions only, Windows 8 / 8.1 / 10 / 11 |
| Width | 2 cm |
| Depth | 14.5 cm |
| Height | 6.5 cm |
| Weight | 116 g |
| Shipping Width | 14.5 cm |
| Shipping Depth | 21.5 cm |
| Shipping Height | 3.5 cm |
| Shipping Weight | 208 g |
| Service & Support | Limited warranty - 2 years Technical support - assistance - lifetime |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% RH |
