be quiet! Pure Power 12 - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC - Europe - black
images are for illustrative purposes only
New
Article: 4173181 Intrastat: 85044090 SKU: BP005EU
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Black |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

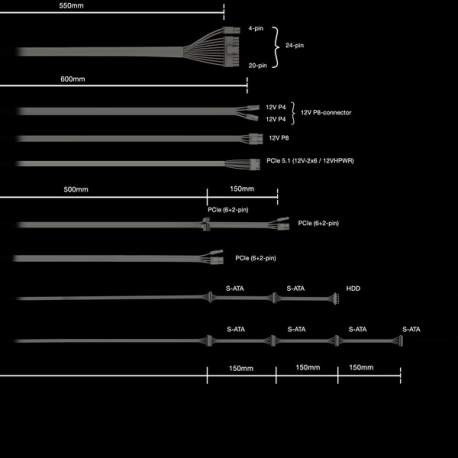

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section Power 4 pin +12V 1 x 12VHPWR 3 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 1 x 4 PIN internal power |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 22 A +5V - 22 A +12V1 - 83.4 A -12V - 0.3 A +5VSB - 3 A |
| Efficiency | 66.3% at 2% Load (230 VAC), 89.2% at 10% Load (230 VAC), 92.7% at 20% Load (230 VAC), 92.9% at 50% Load (230 VAC), 90.6% at 100% Load (230VAC) |
| Power Factor (PF) | 0.98 |
| 80 PLUS Certification | 80 PLUS Gold |

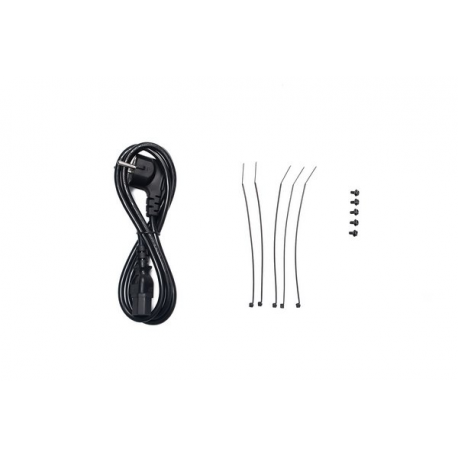

| Included Accessories | Screws, cable ties |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Sleeved cables, flat cables, single 12V rail, LLC resonant converter technology, Synchronous Rectifier (SR) technology, DC-DC technology, rifle bearing cooling fan, silent performance, Modern Standby compatible |
| Compliant Standards | PCIe 5.1, BSMI, CB, CCC, cRUus, cTUVus, CU, FCC, RCM, TUV, UKCA, Energy Star 8.0, ERP, WEEE, RoHS, Triman |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 10 years |
| Max Operating Temperature | 40 °C |

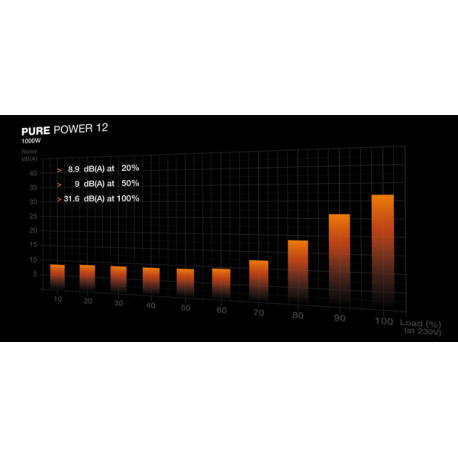

| Sound Emission | 18.2 dB |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 2.8 kg |
| Shipping Width | 32 cm |
| Shipping Depth | 13.3 cm |
| Shipping Height | 21 cm |
| Shipping Weight | 3.2 kg |
