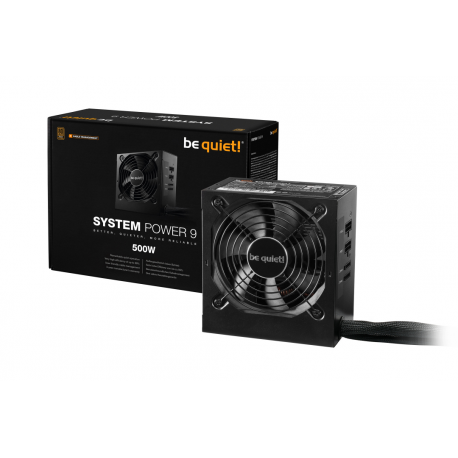

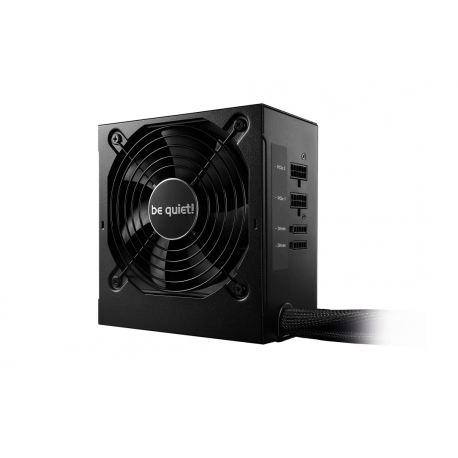

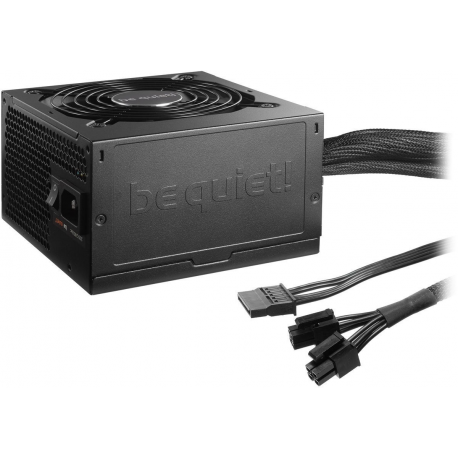

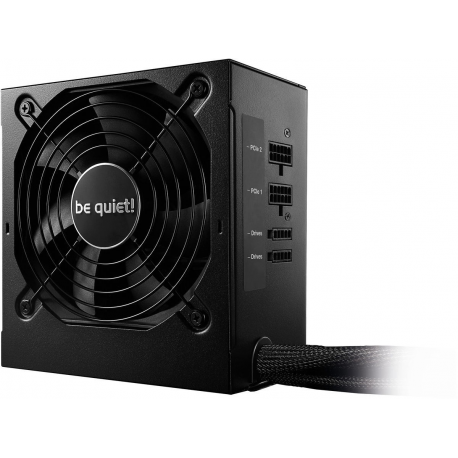

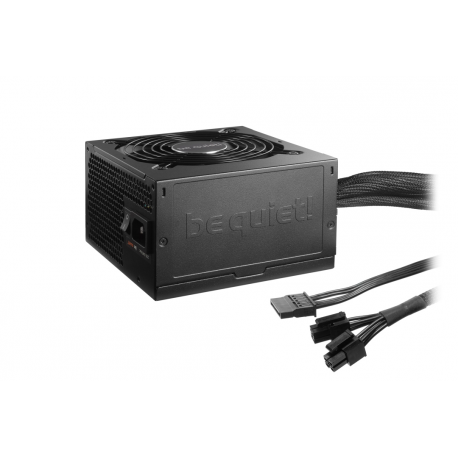

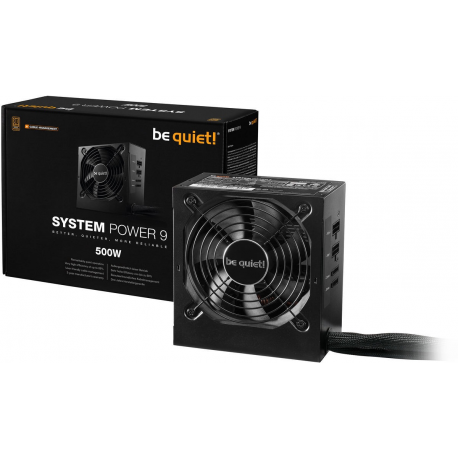

be quiet! System Power 9 500W CM - Power supply (internal) - ATX12V 2.51 - 80 PLUS Bronze - AC 200-240 V - 500 Watt - active PFC - Europe
images are for illustrative purposes only
New
Article: 3037517 Intrastat: 85044090 SKU: BN301
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.51 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |

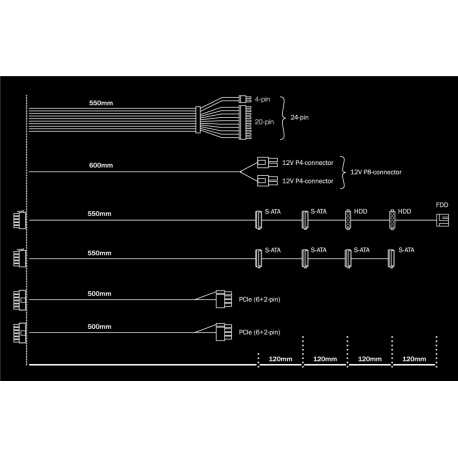

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 24 A +5V - 15 A +12V1 - 24 A +12V2 - 20 A -12V - 0.3 A +5VSB - 3 A |
| Efficiency | 89% |
| Power Factor (PF) | 0.95 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Bronze |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, Multi-GPU Technologies Supported, temperature controlled fan, DC-DC technology, semi-modular |
| Compliant Standards | ERP, EAC, TUV Rheinland |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years |
| Max Operating Temperature | 40 °C |

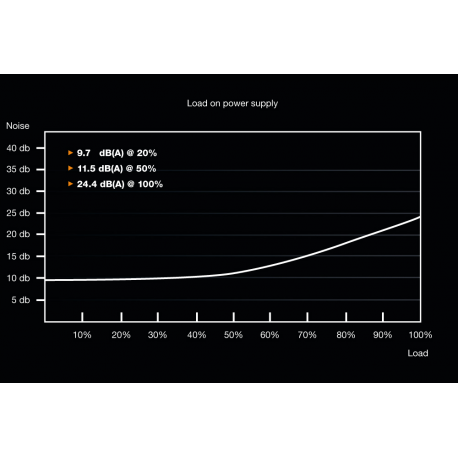

| Sound Emission | 24.4 dBA |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
