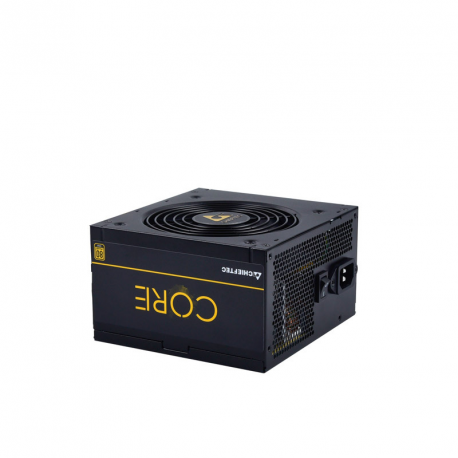

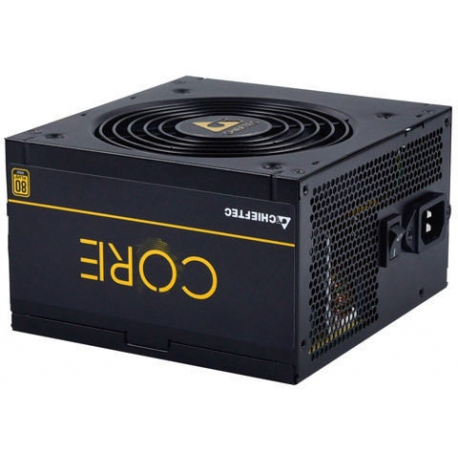

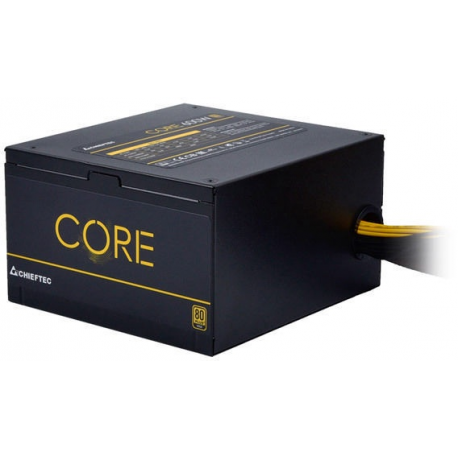

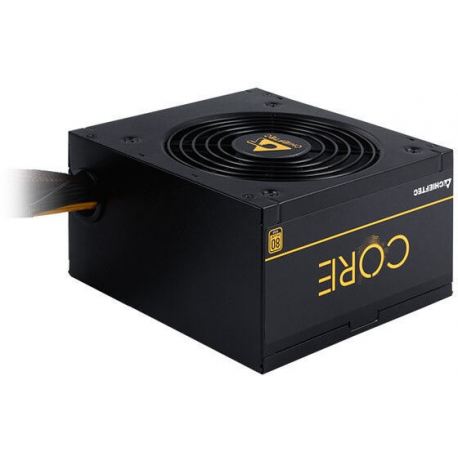

Chieftec Core Series BBS-600S - Power supply (internal) - ATX12V 2.3/ EPS12V/ PS/2 - 80 PLUS Gold - AC 100-240 V - 600 Watt - active PFC
images are for illustrative purposes only
New
Article: 3040025 Intrastat: 85044090 SKU: BBS-600S
Pricing and stock details are available to registered users only.
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 9 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 49 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 65 cm |
| Floppy drive power connector | 1 |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.67 kg |
| Package weight | 2.08 kg |
| Harmonized System (HS) code | 84733020 |
