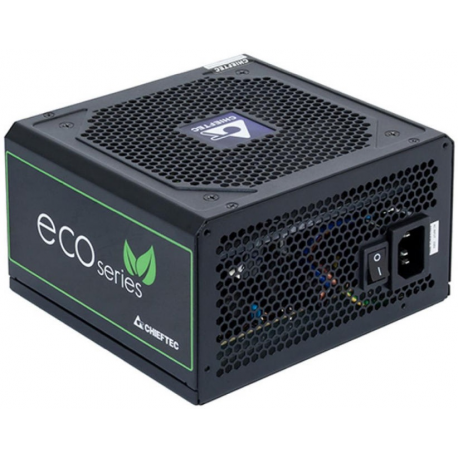

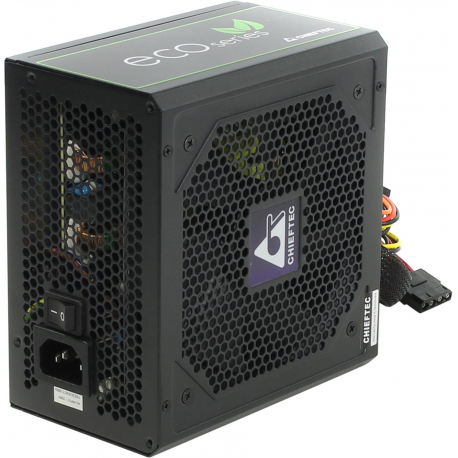

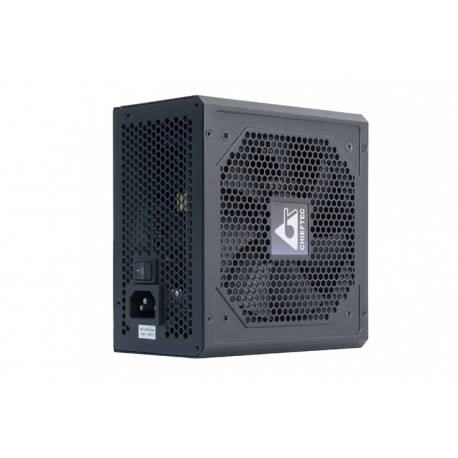

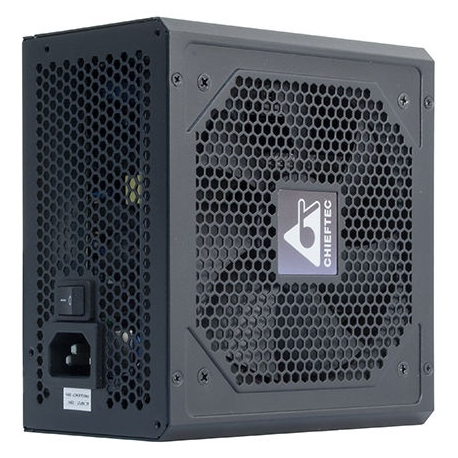

Chieftec ECO Series GPE-600S - Power supply (internal) - ATX12V 2.3 - AC 230 V - 600 Watt - active PFC
images are for illustrative purposes only
New
Article: 3039587 Intrastat: 85044090 SKU: GPE-600S
Pricing and stock details are available to registered users only.
| Nominal power | 600 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 540 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 45 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
| Fan diameter | 12 cm |
| Number of fans | 1 |
| Cooling type | Active |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 40 cm |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Y |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express connector | Y |
| Form factor | PS2 |
| Purpose | PC |
| ATX version | 2.3 |
| On/off switch | Y |
| Colour of product | Black |
| Housing colour | Black |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| Energy Star certified | Y |
| RoHS compliance | Y |
| Package type | Box |
